LUCAS Alternator With Integral Regulator: Specifications

NOMINAL OUTPUT

Alternator	Amps @ RPM	Voltage
16 ACR	34 @ 6000	12
18 ACR	43 @ 6000	12
20 ACR	66 @ 6000	12

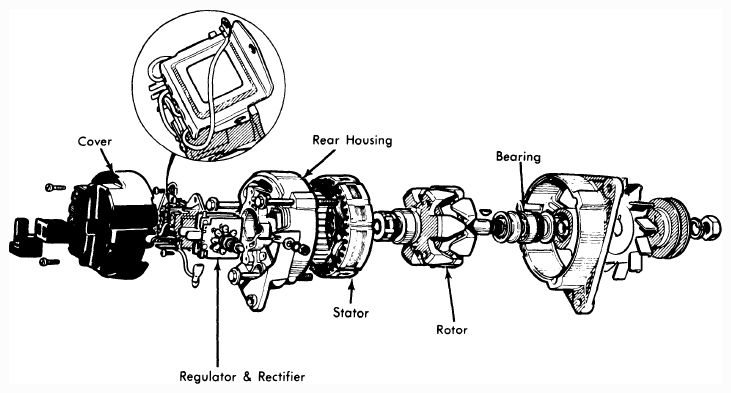

Fig 1: Disassembled View of Lucas Integral Regulator Alternator Assembly

Courtesy of NOT AVAILABLE
