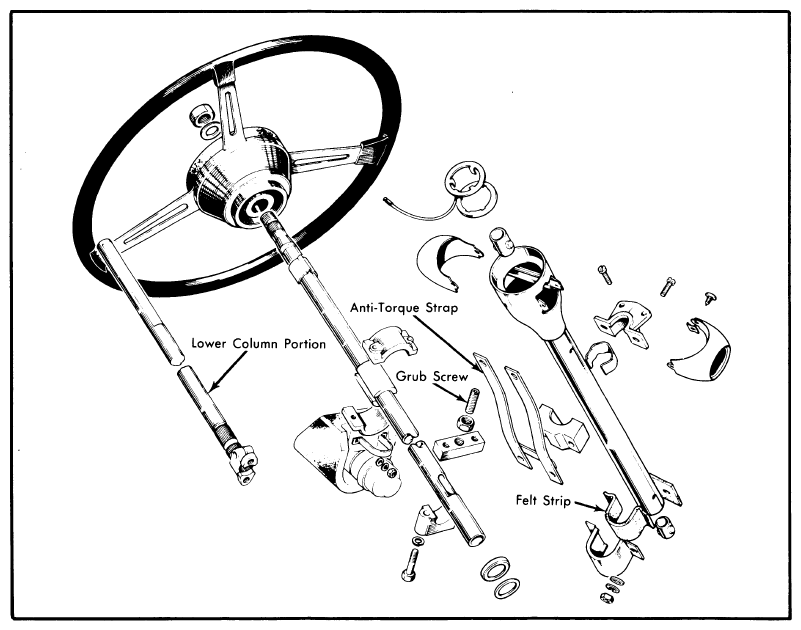

Upper Steering Column: Assembly
Enter column from lower end of housing. Fit lower bushing to column with rubber dots on bushing facing downward. Align and engage dowels with holes in column housing. Position end cover and attach with tape. Replace turn signal clip. Install column in vehicle and replace steering wheel.
TIGHTENING SPECIFICATIONS
| Application | Ft. Lbs. (mkg) |
|---|---|
| Steering Wheel Nut | 34 (4.7) |
| Safety Clamp Grub Screw | 18-20 (2.4-2.7) |
| Safety Clamp Bolts | 6-9 (.8-1.2) |
| Universal Joint Pinch Bolt | 20 (2.8) |
| Flexible Coupling Pinch Bolt | 6-9 (2.4-2.7) |
