Wiring Diagrams: Wiring Diagram

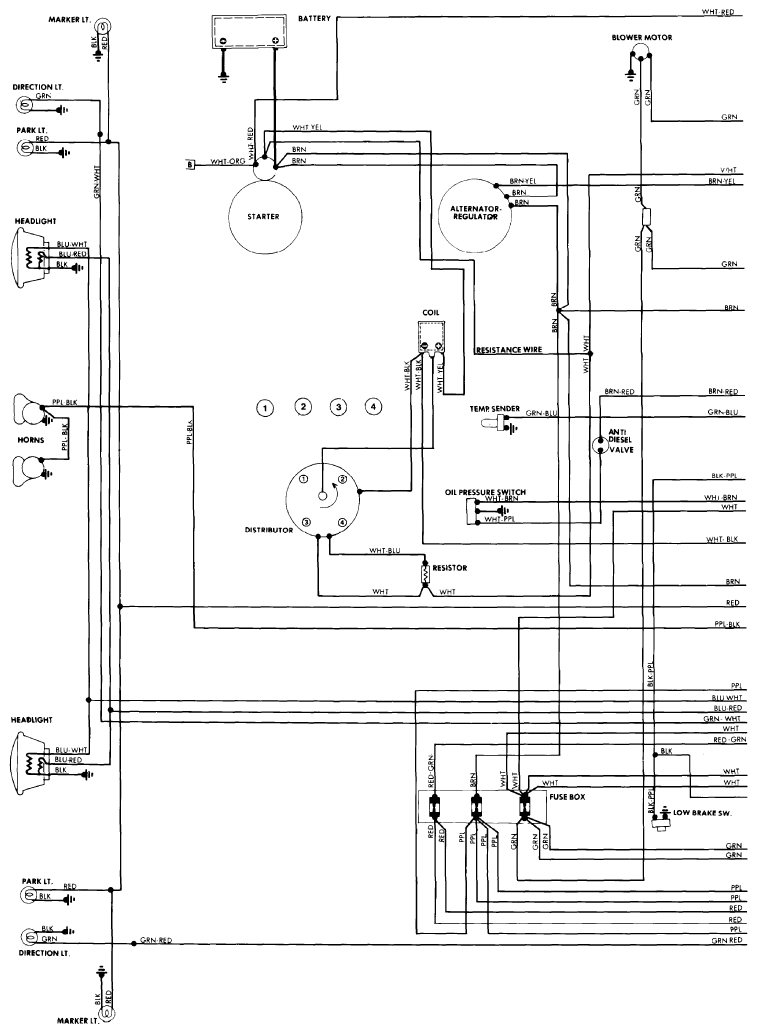

Fig 1: Wiring Diagram - Spitfire (1 of 2)
G09303585Courtesy of NOT AVAILABLE

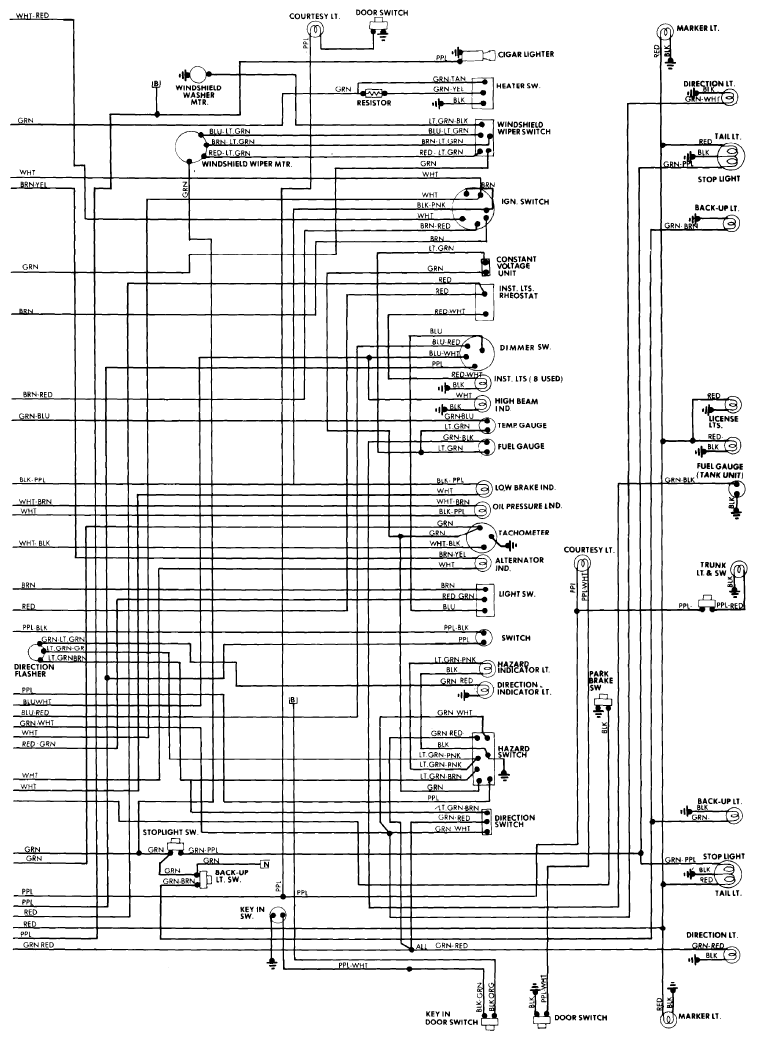

Fig 2: Wiring Diagram - Spitfire (2 of 2)
G09303586Courtesy of NOT AVAILABLE
