Rotor and Stator Testing

Continuity with minimum resistance should be noted between slip rings. No continuity should exist between either slip ring and rotor core or shaft. Stator conduction is normal when there is continuity between leads of stator coil but NOT between stator coil leads and stator core.

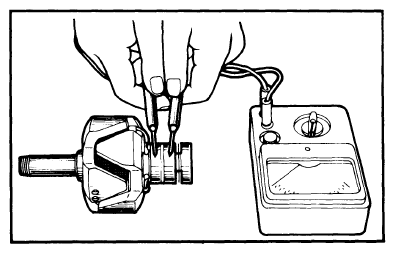

Fig 1: Rotor Coil Continuity Test

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

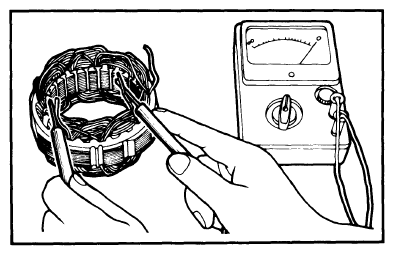

Fig 2: Stator Coil Continuity Test

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

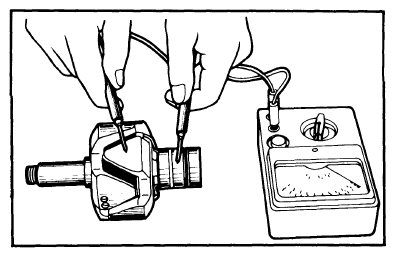

Fig 3: Rotor Coil Ground Test

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

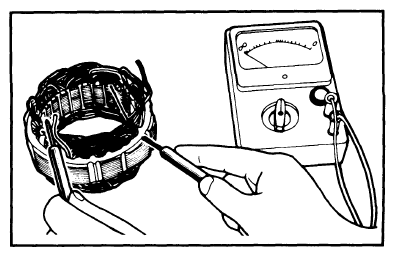

Fig 4: Stator Coil Ground Test

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
