Ignition Secondary Quick Check Chart

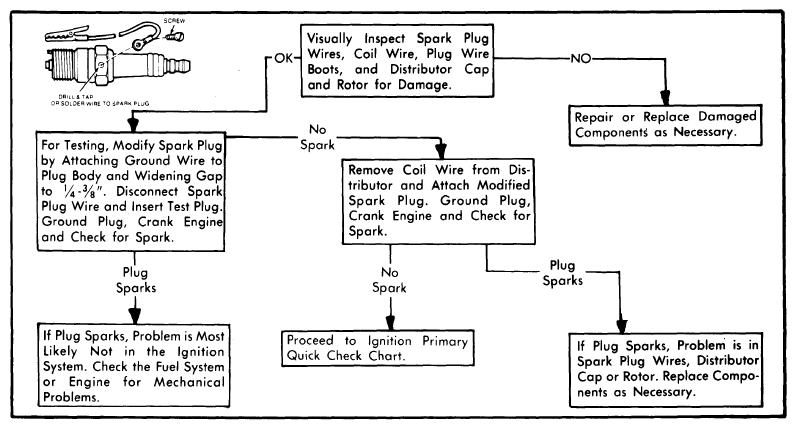

Fig 1: Ignition Secondary Quick Check Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
