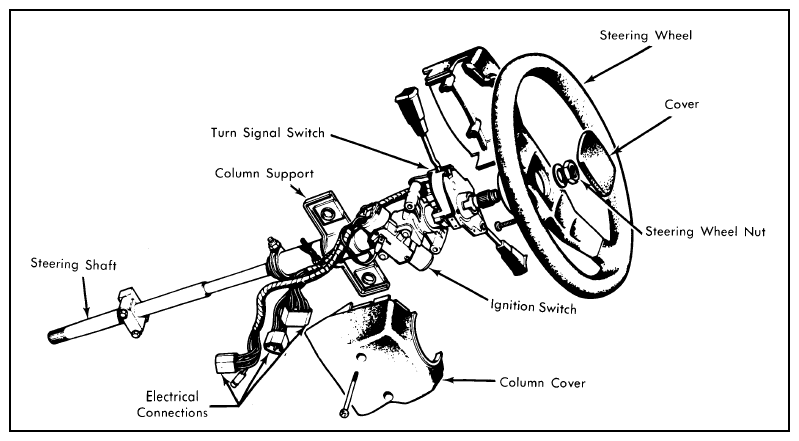

Steering Column Assembly: Reassembly
Align slots in bushings with lugs in column housing, then press in bushings. Install steering lock in column housing and secure with shear bolts. Refit all electrical connectors and indicator control cams and arms. Tighten steering hub and wheel into position, then refit spoke cover.
TIGHTENING SPECIFICATIONS
| Application | Ft.Lbs. (N.m) |
|---|---|
| Column Clamp-to-Column | 6-9 (8-12) |
| Steering Wheel Nut | 30-37 (41-50) |
| Universal Joint Pinch Bolts | 16-21 (22-29) |
