Child Presence Detection Module Removal And Installation/Replacement

Mobile Repair Possible:  No

Overview:

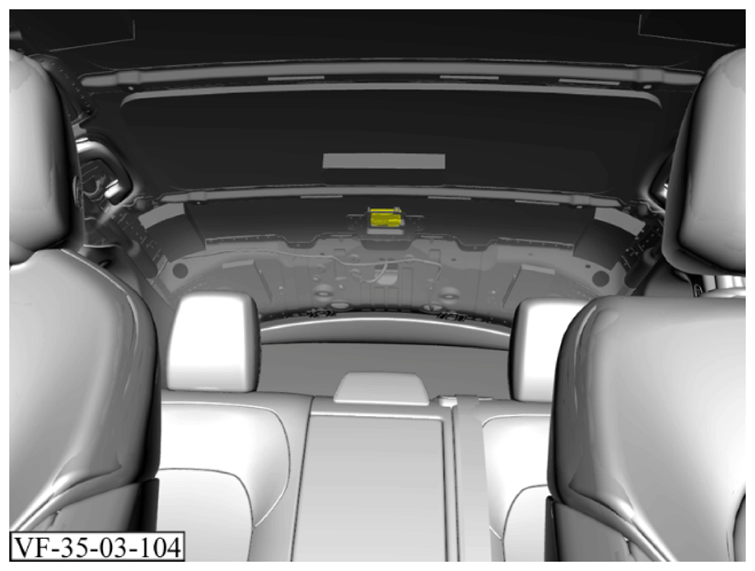

Fig 1: Child Presence Detection Module Components Location

Courtesy of VINFAST, LLC

Removal Procedure:

1. Remove the headlining trim panel. Refer to HEADLINING TRIM PANEL REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

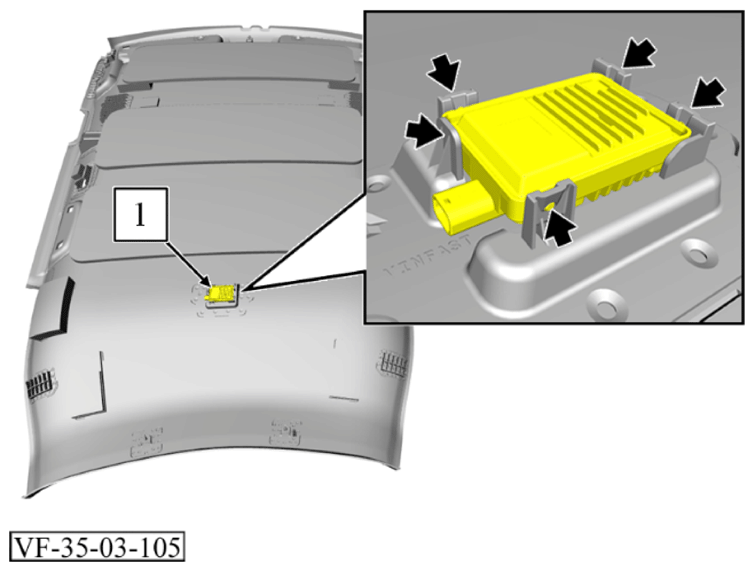

2. Unclip the module (1) at the arrows and remove it.

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.
2. Install the headlining trim panel. Refer to HEADLINING TRIM PANEL REMOVAL AND INSTALLATION/REPLACEMENT
3. Diagnostics, Programming and Setup. Refer to DIAGNOSTICS, PROGRAMMING AND SETUP USING SCAN TOOL IN SERVICE
