Hand On Off Detection ECU Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

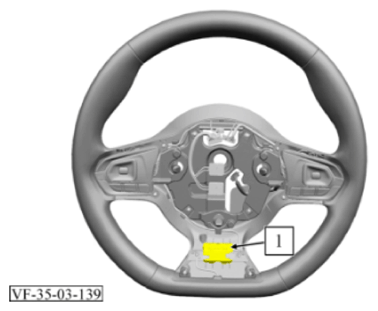

Removal Procedure:

1. Remove steering wheel main control switch bezel. Refer to STEERING WHEEL MAIN CONTROL SWITCH BEZEL REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

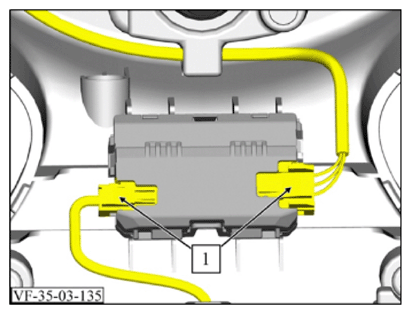

2. Unlock and disconnect 2 electrical connector (1) from the hand off detection.

   Courtesy of VINFAST, LLC

3. Remove Hand on off Detection ECU (1) from the Steering Wheel.

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.
2. Remove steering wheel main control switch bezel. Refer to STEERING WHEEL MAIN CONTROL SWITCH BEZEL REMOVAL AND INSTALLATION/REPLACEMENT
