Front Wheel Speed Sensor Removal And Installation/Replacement

Mobile Repair Possible:  No

Removal Procedure:

The procedure for the left-hand component is identical to that for the right-hand side.

1. Remove front wheelhouse liner. Refer to FRONT WHEELHOUSE LINER REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

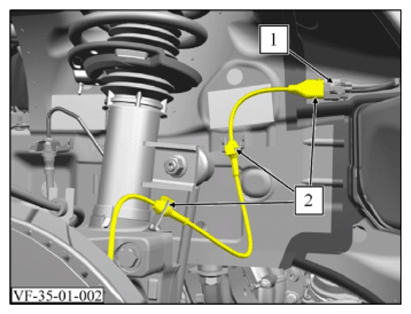

2. Unlock and disconnect electrical connector (1).
3. Detach cables for the pulse generator from brackets (2).

   Installation note: Pay attention to proper cable routing.

   Courtesy of VINFAST, LLC

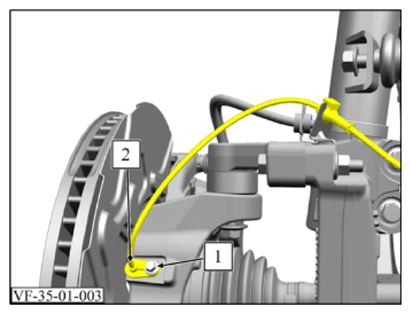

4. Remove bolt (1).

   Torque: 8 Nm

5. Remove the front wheel speed sensor (2).

   Installation note: Clean the threaded hole and treat it with corrosion protection. Thinly grease the contact surface.

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.

   All fasteners must be tightened to torque specification!

2. Install front wheelhouse liner. Refer to FRONT WHEELHOUSE LINER REMOVAL AND INSTALLATION/REPLACEMENT
