Redundancy Control Unit Removal And Installation/Replacement

Mobile Repair Possible: No

Overview:

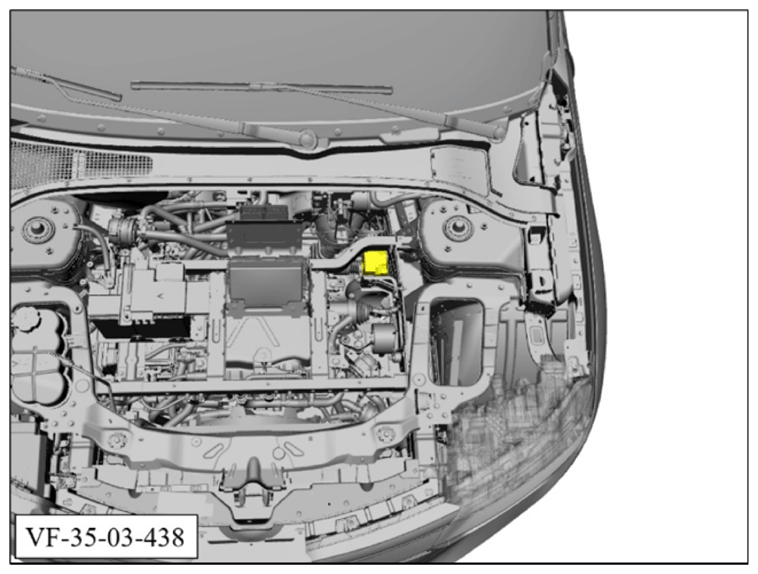

Fig 1: Redundancy Control Unit Components Location

Courtesy of VINFAST, LLC

WARNING: Electricity hazard
Failure to follow specified procedures may result in death or serious injury from electric shock when working on or near high-voltage components.

Only authorized and appropriately trained persons may carry out work on high-voltage vehicles and components.
Perform High Voltage isolation procedure prior to commencing work
Ensure appropriate Personal Protective Equipment is worn until the system is verified safe

WARNING: Hot surface
Failure to follow specified procedures may result in severe injuries due to burns or scalds.

Do not commence work until components/liquids have sufficiently cooled down.
Always use personal protective equipment (PPE).

NOTE: Contamination
Contamination or moisture entering the cooling system can lead to malfunction or functional failure.

The vehicle cooling system and any removed components should be capped/sealed during work to prevent contamination entry

Removal Procedure:

Disable HV-System. Refer to HV-SYSTEM DISABLING/ENABLING
Disconnect the 12V battery negative terminal. Refer to 12V BATTERY NEGATIVE CABLE DISCONNECTION/CONNECTION
Remove PDU EMI Filter. Refer to PDU EMI FILTER REMOVAL AND INSTALLATION/REPLACEMENT (US/CA)

Courtesy of VINFAST, LLC

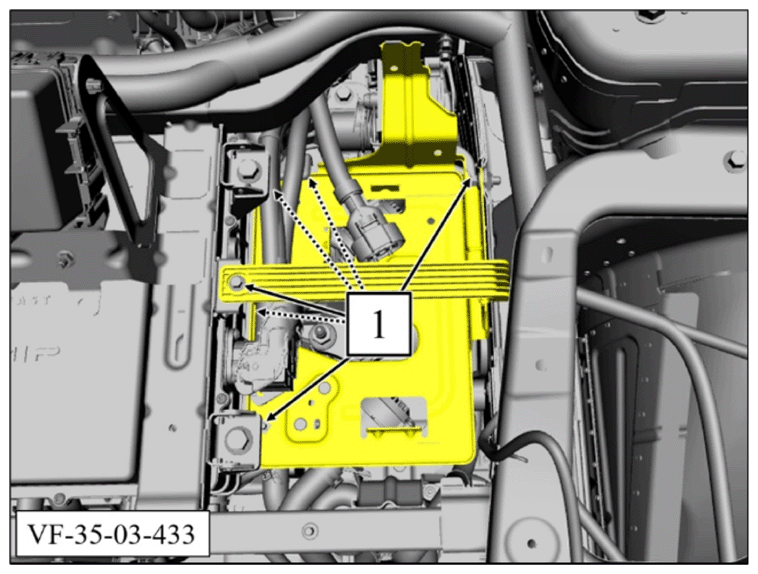

Remove 6 bolts (1) and unthread the holder at the top.
Torque: 8 Nm

Courtesy of VINFAST, LLC

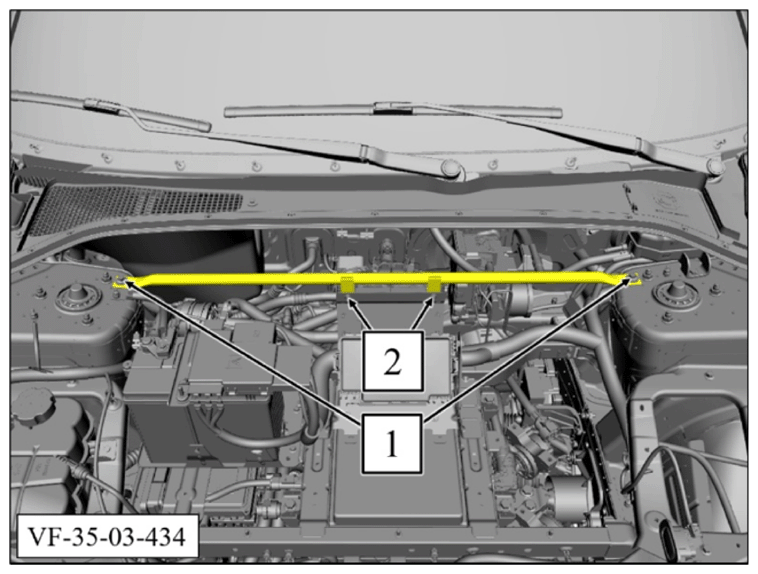

Remove 2 bolts (1).
Torque: 29.5 Nm
Remove 2 bolts (2).
Torque: 8 Nm

Courtesy of VINFAST, LLC

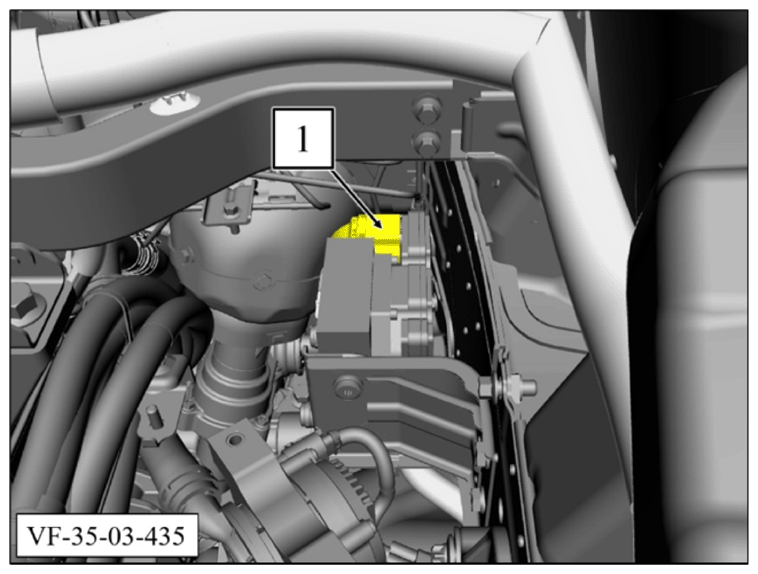

Disconnect electrical connector (1) from the redundancy control unit.

Courtesy of VINFAST, LLC
Remove 3 bolts (2).
Torque: 11 Nm

Courtesy of VINFAST, LLC

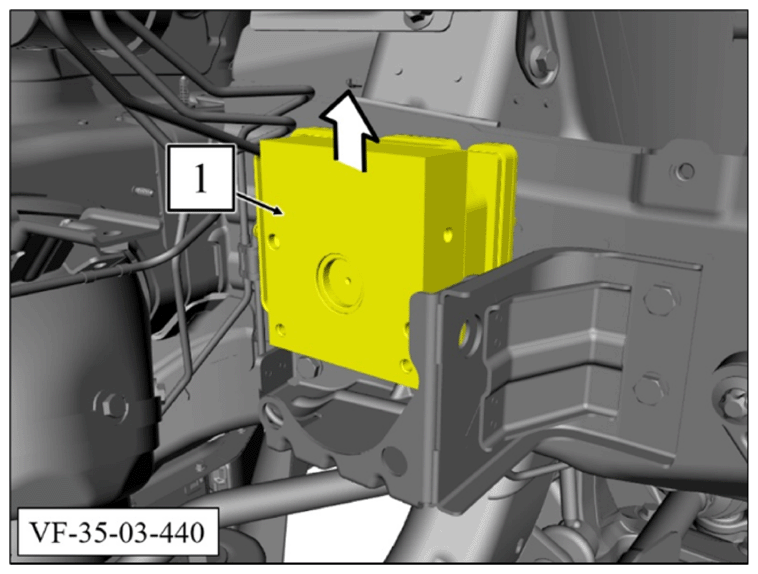

Remove the redundancy control unit (1) upwards in the direction of the arrow.

Installation Procedure:

Courtesy of VINFAST, LLC

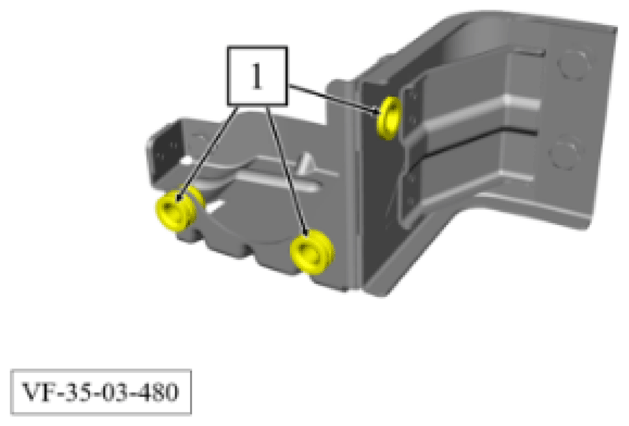

Installations note: Make sure that the 3 outer sockets (1) are attached to the bracket when you install the redundancy control unit.

Installation is the reverse of removal procedure, noting the following.
All fasteners must be tightened to torque specification!
Install PDU EMI Filter. Refer to PDU EMI FILTER REMOVAL AND INSTALLATION/REPLACEMENT (US/CA)
Reconnect the 12V battery negative terminal. Refer to 12V BATTERY NEGATIVE CABLE DISCONNECTION/CONNECTION
Enable HV-System. Refer to HV-SYSTEM DISABLING/ENABLING
Diagnostics, Programming and Setup. Refer to DIAGNOSTICS, PROGRAMMING AND SETUP USING SCAN TOOL IN SERVICE
