Vehicle Yaw Sensor Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Overview:

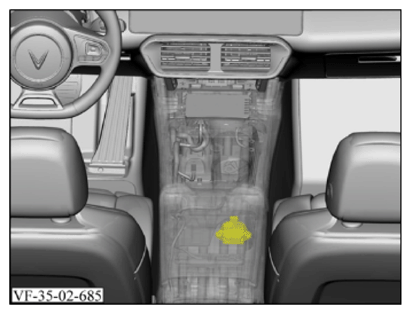

Fig 1: Vehicle Yaw Sensor Components Location

Courtesy of VINFAST, LLC

Removal Procedure:

1. Disconnect the 12V battery negative terminal. Refer to 12V BATTERY NEGATIVE CABLE DISCONNECTION/CONNECTION
2. Remove Front Floor Console. Refer to FRONT FLOOR CONSOLE REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

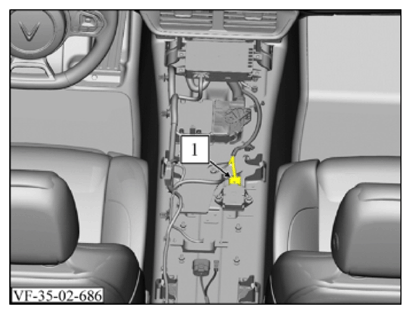

3. Unlock and disconnect electrical connector (1).

   Courtesy of VINFAST, LLC

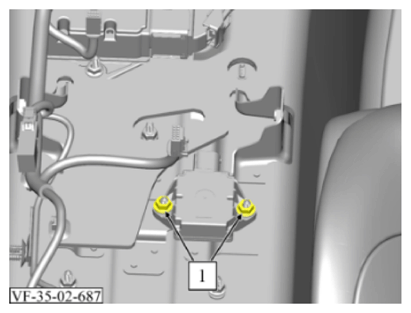

4. Remove 2 Nuts (1).

   Torque: 8 Nm

   Courtesy of VINFAST, LLC

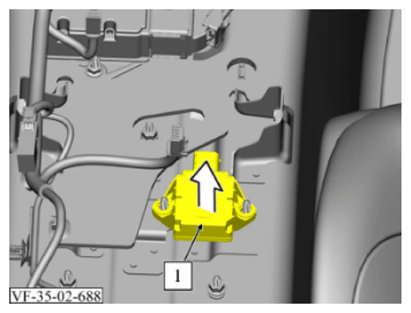

5. Remove yaw sensor (1).

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.

   All fasteners must be tightened to torque specification!

2. Remove front floor console. Refer to FRONT FLOOR CONSOLE REMOVAL AND INSTALLATION/REPLACEMENT
3. Diagnostics, Programming and Setup. Refer to DIAGNOSTICS, PROGRAMMING AND SETUP USING SCAN TOOL IN SERVICE
