12V Battery Tray Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Removal Procedure:

1. Remove 12V Battery. Refer to 12V BATTERY REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

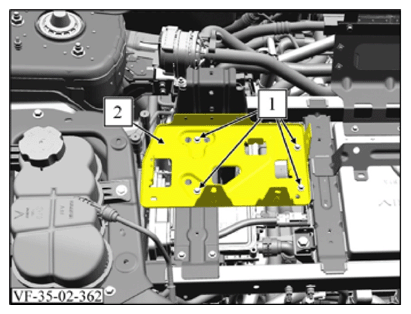

2. Remove 4 bolts (1).

   Torque: 8 Nm

3. Remove 12V battery tray (2).

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.

   All fasteners must be tightened to torque specification!

2. Install 12V Battery. Refer to 12V BATTERY REMOVAL AND INSTALLATION/REPLACEMENT
