Front End Latch Support Bracket Removal And Installation/Replacement

Mobile Repair Possible:  No

Removal Procedure:

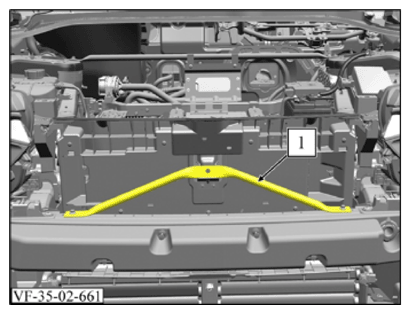

1. Remove front end upper tie bar. Refer to FRONT END UPPER TIE BAR REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

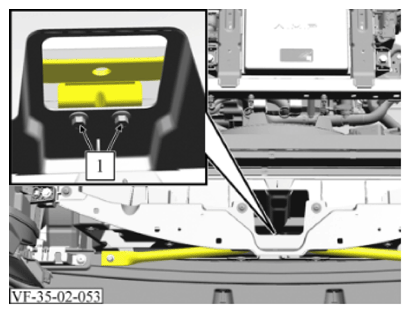

2. Remove 2 bolts (1).

   Torque: 15 Nm

   Courtesy of VINFAST, LLC

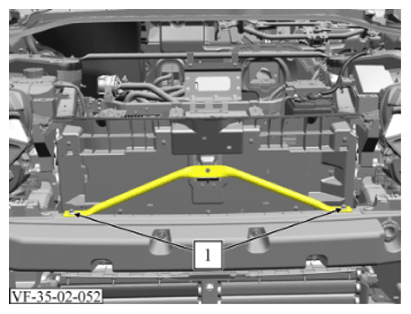

3. Remove 2 bolts (1).

   Torque: 3.5 Nm

   Courtesy of VINFAST, LLC

4. Remove front end latch support bracket (1).

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.

   All fasteners must be tightened to torque specification!

2. Install front end upper tie bar. Refer to FRONT END UPPER TIE BAR REMOVAL AND INSTALLATION/REPLACEMENT
