Steering Wheel Main Control Switch Bezel Removal And Installation/Replacement

Mobile Repair Possible:  No

Removal Procedure:

1. Remove Steering Wheel. Refer to STEERING WHEEL REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

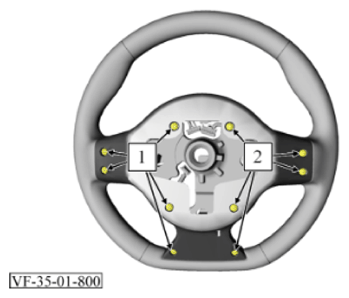

2. Remove 5 screws (1) and 5 screws (2).

   Torque: 1.6 Nm

   Courtesy of VINFAST, LLC

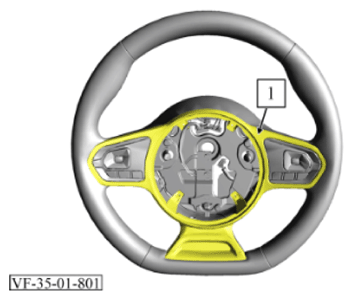

3. Carefully remove the Bezel (1) from the steering wheel and unlock and disconnect the electrical connectors from the multifunction switch.
4. Remove the Bezel (1).

Replacement Procedure:

1. Rebuild Multi-Function Switch. Refer to STEERING WHEEL MULTI-FUNCTION SWITCH REMOVAL AND INSTALLATION/REPLACEMENT

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.

   All fasteners must be tightened to torque specification!

2. Install Steering Wheel. Refer to STEERING WHEEL REMOVAL AND INSTALLATION/REPLACEMENT
