Remote Software Updates - Description And Operation
Mobile Repair Possible: N/A
Description:
Software Download:
Software Installation:
Installation Pre-Condition Errors:
Installation Update Errors:
Description:

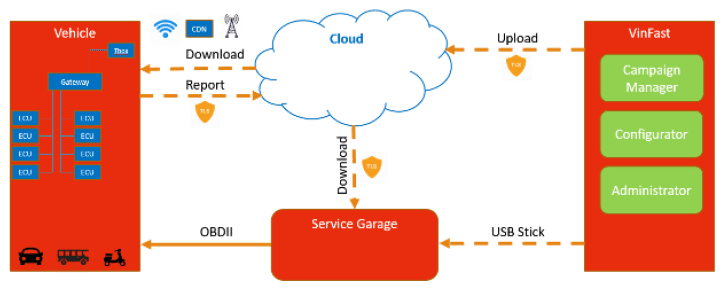

Remote software updates also known as Firmware or Software Over the Air (FOTA or SOTA) or simply OTA, refers to a mechanism for VinFast to update software in vehicles remotely. In the past the only way to update vehicle software has been to be physically connected to the vehicle with the appropriate software and hardware tools.
Traditionally to solve problems with a control system in the vehicle, it requires the customer to bring the vehicle into a dealership, taking time for customer and cost for the OEM to provide updates to address the problem. Remote Software Updates allows VinFast to provide updates remotely, which increases customer satisfaction and reduces technical support requirements.
VinFast recommends updating vehicle software whenever new updates are available. This will ensure the vehicle maintains the latest features, functionality and quality improvements.
Overview of the Remote Software Update process
(1) New Upgrade Available → (2) Download the firmware → (3) Stop Downloading → (3) Install firmware → (4) Meet Install conditions
Please note: The following images may differ slightly but the instructions remain the same
Software Download:
To enable the download of vehicle software updates there must be an active cellular or Wi-Fi connection to achieve an internet connection
If automatic download on Wi-Fi or Cellular is selected, downloads will happen automatically and the customer will be notified when they are available to be installed.

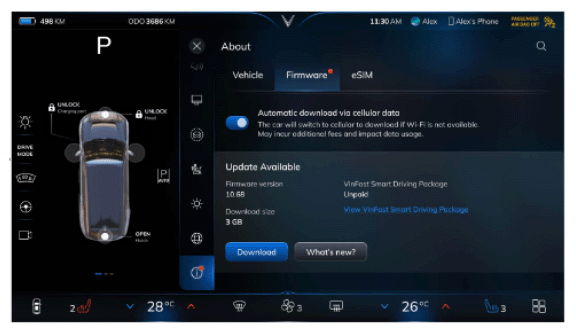

If automatic download isn't selected, then a manual check can be achieved simply by selecting Settings-About-Firmware menu on the infotainment screen as shown below, this check may take several seconds.

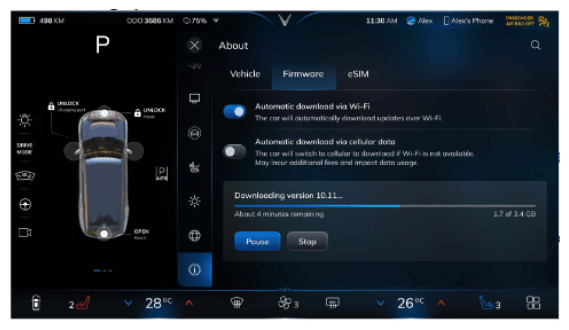

If there is software available, the customer will be asked to confirm download. Once started the download process can be paused/resumed or stopped by the customer as shown on the screen below.
In the case of connection issues the system will continue to attempt reconnection until the download is complete.
Please note: After the download is complete there is a short merging time. Once merging is complete, the installation can then be started.
Software Installation:

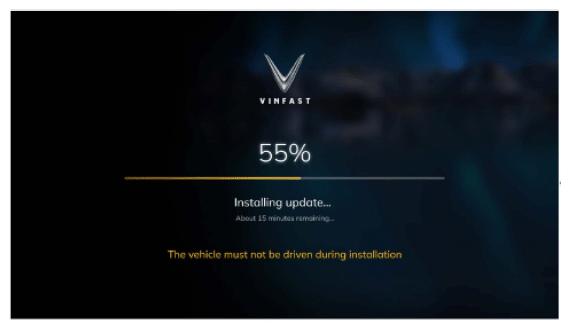

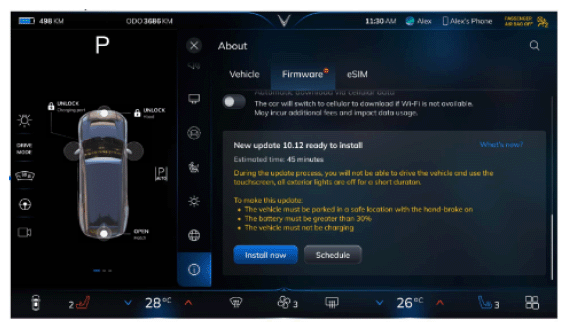

Once the software has been downloaded a notification will appear immediately on the infotainment screen, on the infotainment screen the customer will be able to Install the software immediately or schedule it for a later time. Installation time may vary depending on the size of the update an estimate of the time to completion is provided on the screen during the installation process, typical installation times are 30-45 mins.
To allow the install to begin the customer must accept terms and conditions of the software update and certain operational and technical pre-conditions must be met by the customer, then the installation process will begin.
Further details are provided in the following section Installation Pre-Condition Errors

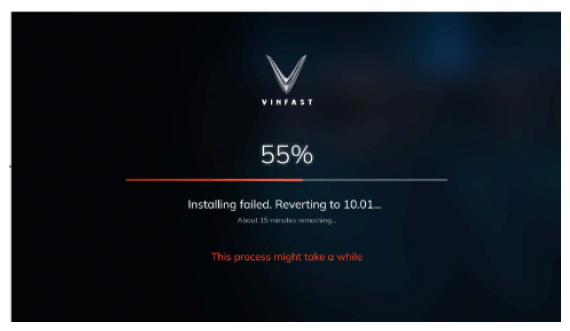

If there is an issue with the installation, the Software Update process will attempt to revert back to the previous software version this may take a similar amount of time to the installation process.

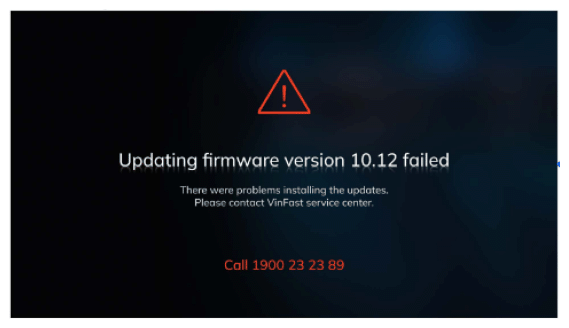

If this process is unsuccessful a critical error warning will be displayed to the customer instructing them to contact VinFast for help from their local dealership.
Scheduling an update:

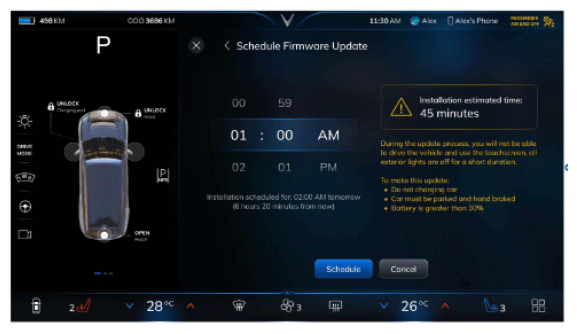

On the update ready screen, the customer can choose to schedule the update at a convenient time. Once selected the customer will need to accept the terms and conditions and then the installation will be scheduled.

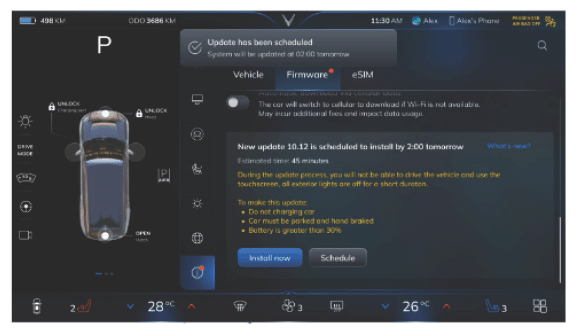

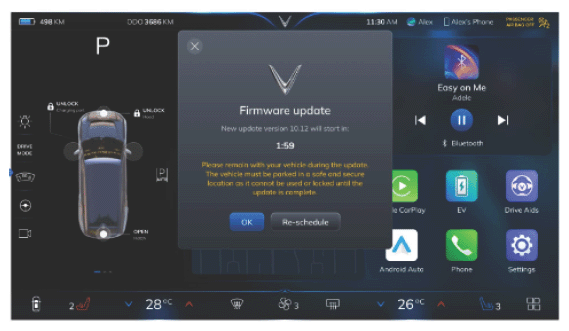

Once scheduled the installation can be rescheduled in the update ready screen or the pop-up screen that will appear 2 minutes before the update is due.

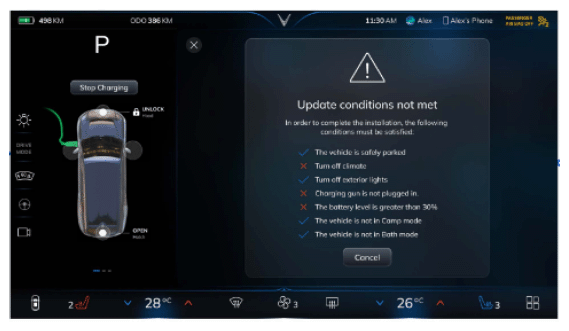

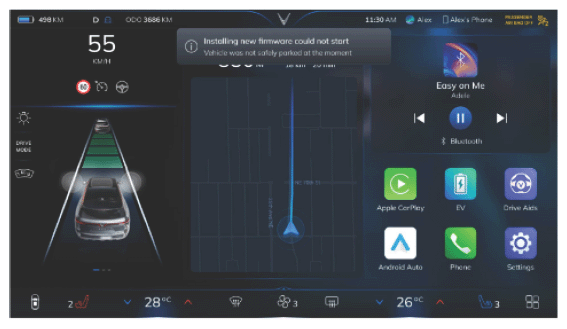

If the installation pre-conditions are not met at the scheduled time a pop-up will appear to notify the customer.
Installation Pre-Condition Errors:
As mentioned above to allow the install to begin certain Operational and Technical pre-conditions must be met by the customer, the following is a list of all the possible pre-condition errors, their code, type of error and recommended actions to resolve.
Operational errors are ones which the customer can easily fix with the SELF-FIX actions below, while technical errors may require further technical support and the SERVICE actions should be followed. If "Operational Errors" do not resolve with the recommended SELF-FIX actions or for "Technical Errors", advise the customer that the vehicle may need to be looked at by a technician and book a mobile or dealership service.
For technicians investigating these errors treat them like any other customer concern using the procedure Strategy, checks and repair verification as a guidance to work through the issue and identify the root cause, paying particular attention to any DTC's related to the MHU or T-Box; or communication with the MHU or XGW in the vehicle.
| CODE | ERROR NAME | ERROR TYPE | RECOMMENDED ACTIONS |
|---|---|---|---|
| 1 | LV BATTERY LOW | Technical | SERVICE - Charge 12V Battery, service LV charging system or replace 12V battery |
| 2 | HANDBRAKE NOT ENGAGED | Operational | SELF-FIX "Ensure vehicle is stationary, gear selector is in Park, Handbrake is applied and try again" |
| 4 | VEHICLE MOVING | Operational | SELF-FIX "Ensure vehicle is stationary, gear selector is in Park, Handbrake is applied and try again" |
| 8 | VEHICLE CHARGING | Operational | SELF-FIX "Stop charging ensure charging gun is disconnected and charge plug is clear and try again" |
| 10 | IGNITION IS OFF | Operational | SELF-FIX "Ensure ignition is ON and try again" |
| 20 | EMOTOR IS ON | Operational | SELF-FIX "Ensure E-Motor is OFF and try again" |
| 40 | PARK GEAR NOT SELECTED | Operational | SELF-FIX "Ensure vehicle is stationary, gear selector is in Park, Handbrake is applied and try again" |
| 80 | EXTERIOR LIGHTS ON | Operational | SELF-FIX "Ensure all lights are turned OFF and try again" |
| 100 | OBD PORT IN USE | Technical | SERVICE - Ensure no devices are connected to OBD port or investigate faults with the OBD port. |
| 200 | HV BATTERY LOW | Operational | SELF-FIX "Ensure vehicle charge is well above 30% SOC and try again" |
| 400 | VEHICLE IN PUBLIC CHARGE STATION | Operational | SELF-FIX "Move vehicle from charge station or current location and try again" |
| 800 | AIR CONDITIONER ON | Operational | SELF-FIX "Ensure AC is turned OFF and try again" |
| 1000 | VALET/PET MODE ACTIVE | Operational | SELF-FIX "Ensure Valet Mode is OFF and try again" |
| 2000 | HV WONT TURN OFF | Technical | SERVICE - HV isn't being turned off, investigate faults with HV system in particular the VCU or BMS |
| 8000 | INVALID FOTA REQUEST | Technical | SERVICE - Reboot eCockpit and try again |
| 800000XY* | ECU FLASH PRE-CONDITION ERROR | Technical | SERVICE - Investigate specific issues with the ECU identified |
When multiple pre-conditions are not met they are compiled in a bit mask to create a single error code, for example
- LV BATTERY LOW = 0x00000001 and HANDBRAKE NOT ENGAGED = 0x00000002 combines into a display error of 0x00000003 (1+2) or
- VEHICLE MOVING = 0x00000004 and VEHICLE CHARGING = 0x00000008 and PARK GEAR NOT SELECTED 0x00000040 and AIR CONDITIONER ON = 0x00000800 combines into a display error of 0x00000852 (4+8+40+800).
- XY* Each ECU in the vehicle has a unique code that is added to the end of 800000 to create a unique error code. This error code means that that ECU's programming pre-conditions for flashing haven't been met.
Installation Update Errors:
As mentioned previously if there is an issue with the installation, the Software Update process will log an error and its first action will be to attempt to revert back or "rollback" to the previous software version. The following is a list of all the possible software installation errors, their code, description and actions for a technician to take in service.
For technicians investigating these errors treat them like any other customer concern using the procedure Strategy, checks and repair verification as a guidance to work through the issue and identify the root cause, paying particular attention to any DTC's related to the MHU or T-Box; or communication with the MHU or XGW; or related to ECU Internal or Programming/SW errors in all ECU's in the vehicle.
Additional "Level 2" support may be required by contacting the local Service Operations Technical Support.
| CODE | ERROR NAME | DESCRIPTION AND ACTIONS |
|---|---|---|
| 2 | INVALID METADATA | Metadata of the data sets to be downloaded is not compatible. SERVICE -
|
| 3 | INCOMPATIBLE SOFTWARE | Part numbers of the software components is not compatible. SERVICE -
|
| 4 | DOWNLOAD TIME TOO LONG | Download time limit exceeded. SERVICE -
|
| 5 | INVALID DOWNLOAD METADATA | Metadata of downloaded data doesn't match expected values SERVICE -
|
| 6 | DECRYPTION ERROR | Error in decryption of data sets, FOTA Key provisioning etc. SERVICE -
|
| 7 | INSTALLATION TIME TOO LONG | Installation time limit exceeded SERVICE -
|
| 8 | FOTA UPDATE FAILED | Installation failure SERVICE -
|
| 10 | FOTA UPDATE FAILED - ROLLBACK SUCCESS | Installation failure, successfully reverted to previous software SERVICE -
|
| 11 | FOTA UPDATE FAILED - ROLLBACK FAILED | Installation failure SERVICE -
|
| 12 | DOWNLOAD CANCELLED BY USER | Download cancelled SERVICE -
|
