ASU Gateway Module Bracket Removal And Installation/Replacement

Mobile Repair Possible:  No

Overview:

Courtesy of VINFAST, LLC

Removal Procedure:

1. Disconnect the 12V battery negative terminal. Refer to 12V BATTERY NEGATIVE CABLE DISCONNECTION/CONNECTION
2. Remove C-Pillar lower trim panel on passenger side. Refer to C-PILLAR LOWER TRIM PANEL REMOVAL AND INSTALLATION/REPLACEMENT

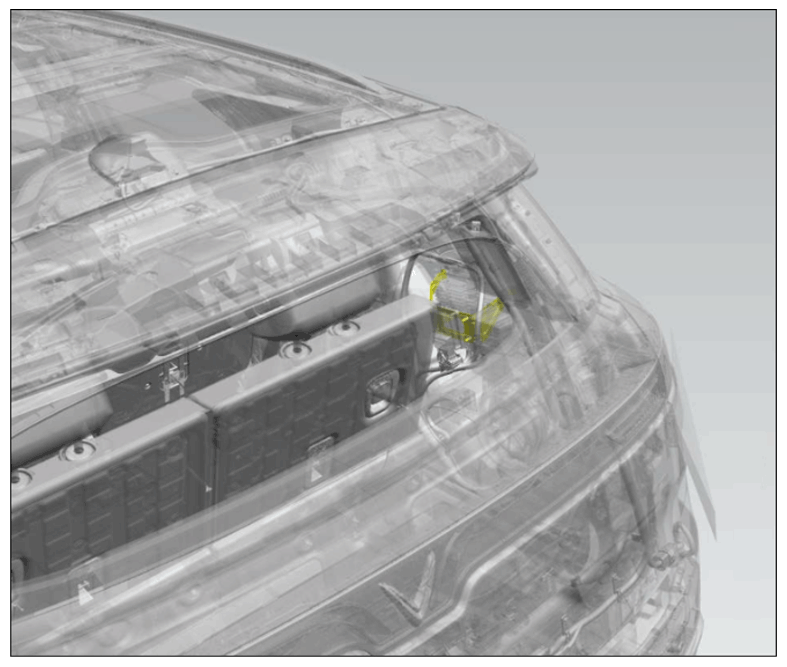

   Courtesy of VINFAST, LLC

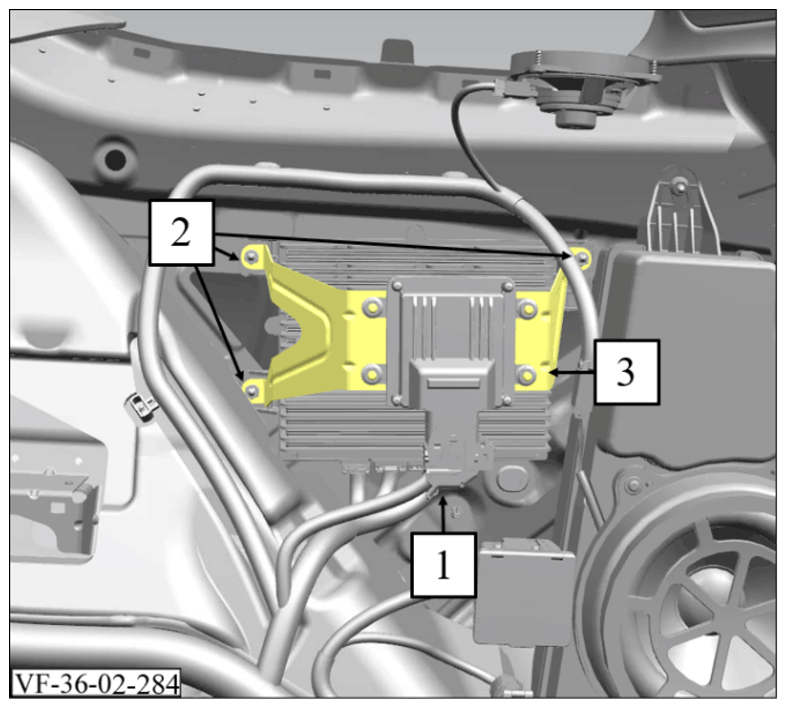

3. Unlock and disconnect the electrical connector (1).
4. Remove 3 nuts (2).

   Torque: 5 Nm

5. Remove the ASU Gateway module bracket (3).

Replacement Procedure:

1. Rebuild the ASU gateway module. Refer to ASU GATEWAY MODULE REMOVAL AND INSTALLATION/REPLACEMENT

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.

   All fasteners must be tightened to torque specification!

2. Install C-Pillar lower trim panel on passenger side. Refer to C-PILLAR LOWER TRIM PANEL REMOVAL AND INSTALLATION/REPLACEMENT
3. Reconnect the 12V battery negative terminal. Refer to 12V BATTERY NEGATIVE CABLE DISCONNECTION/CONNECTION
