Exterior Liftgate Release Switch Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Removal Procedure:

  1. Remove liftgate cover. Refer to LIFTGATE COVER REMOVAL AND INSTALLATION/REPLACEMENT

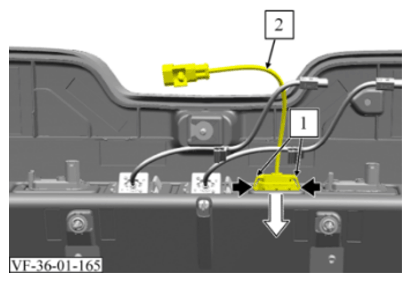

    G16030026Courtesy of VINFAST, LLC
  2. Press the catches (1) together in the direction of the arrow.
  3. Remove the tailgate button (2) downwards in the direction of the arrow.

Installation Procedure:

  1. Installation is the reverse of removal procedure, noting the following.
  2. Install liftgate cover. Refer to LIFTGATE COVER REMOVAL AND INSTALLATION/REPLACEMENT
