Front Side Door Window Switch Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Removal Procedure:

The procedure for the left-hand component is identical to that for the right-hand side.

Driver door:

1. Remove the bezel (1) with the front side door window switch with a suitable plastic wedge.

   Passenger door:

2. Remove the bezel (1) with the front side door window switch with a suitable plastic wedge.
3. Disconnect electrical plug connection (1) from front side door window switch.

Replacement Procedure:

Courtesy of VINFAST, LLC

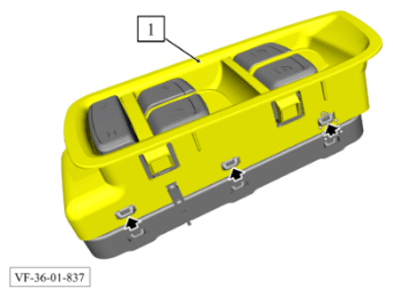

Driver door:

1. Release 6 clips all around.
2. Rebuild the bezel (1).

   Courtesy of VINFAST, LLC

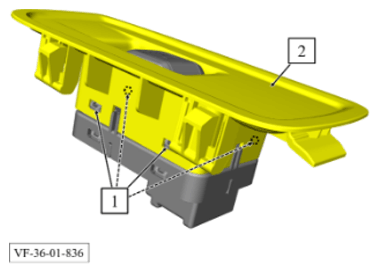

   Passenger door:

3. Release 4 clips (1).
4. Rebuild the bezel (2).

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.
