Frunk Emergency Switch Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Removal Procedure:

1. Remove the front trunk. Refer to FRONT TRUNK REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

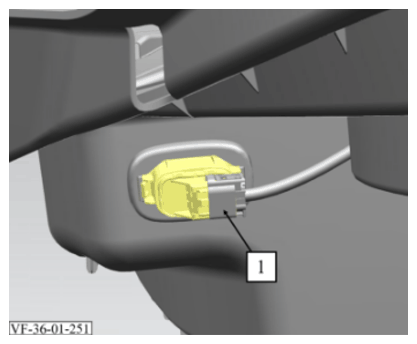

2. Unlock and disconnect electrical connector (1).

   Courtesy of VINFAST, LLC

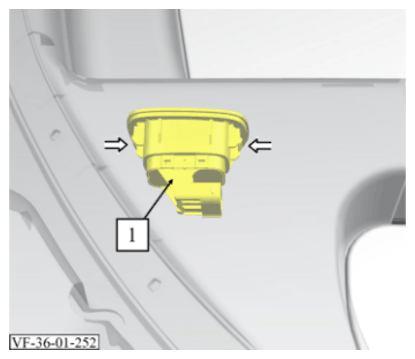

3. Press the fixings (arrows) on the frunk emergency switch together and push the frunk emergency switch (1) inwards.
4. Remove frunk emergency switch (1).

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.
2. Install the front trunk. Refer to FRONT TRUNK REMOVAL AND INSTALLATION/REPLACEMENT
