Rear Side Door Window Switch Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Removal Procedure:

The procedure for the left-hand component is identical to that for the right-hand side.

1. Remove the bezel (1) with the rear side door window switch (2) using a suitable plastic wedge.
2. Disconnect electrical plug connection (1) from rear side door window switch.

Replacement Procedure:

Courtesy of VINFAST, LLC

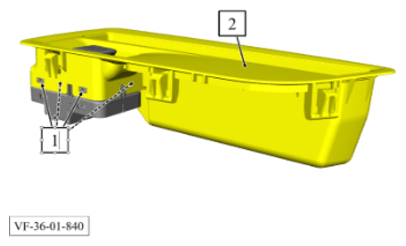

1. Release 4 clips (1).
2. Rebuild the bezel (2).

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.

   All fasteners must be tightened to torque specification!
