Steering Wheel Multi Function Switch Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Removal Procedure:

1. Remove steering wheel housing trim. Refer to STEERING WHEEL HOUSING TRIM REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

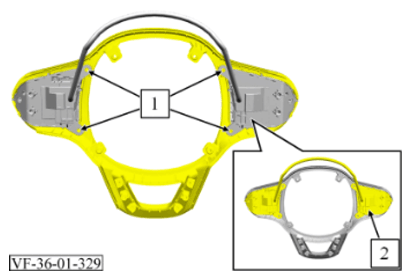

2. Remove 4 Screws (1) and remove the multifunction switch (2).

   Torque: 1.6 Nm

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following

   All fasteners must be tightened to torque specification!

2. Install steering wheel housing trim. Refer to STEERING WHEEL HOUSING TRIM REMOVAL AND INSTALLATION/REPLACEMENT
