Front End Module Support Bracket Removal And Installation/Replacement

Mobile Repair Possible: No

WARNING: Overhead Suspended Load and Falling Parts
Failure to follow specified procedures may result in death or serious injury when elevated load or components are incorrectly secured/supported.

All lifting equipment weight rating must meet or exceed the weight of the vehicle and any contents
The lifting equipment must be in good condition and approved for use
Only lift the vehicle from the identified lift points
Ensure vehicle is stable before performing any work underneath
Ensure there are no loose components which may fall
Always use personal protective equipment (PPE)
Seek assistance when handling larger components

WARNING: Crushing by moving parts
Failure to follow specified procedures may result in death or serious injury due to front end module support bracket.

Secure the component against uncontrolled movement.
Always use personal protective equipment (PPE)
Ensure vehicle is correctly disabled/powered down to prevent unexpected motion or activation of components.

Removal Procedure:

The procedure for the left-hand component is identical to that for the right-hand side.

Remove headlamp. Refer to HEADLAMP REMOVAL AND INSTALLATION/REPLACEMENT
Remove front wheelhouse liner. Refer to FRONT WHEELHOUSE LINER REMOVAL AND INSTALLATION/REPLACEMENT

Courtesy of VINFAST, LLC

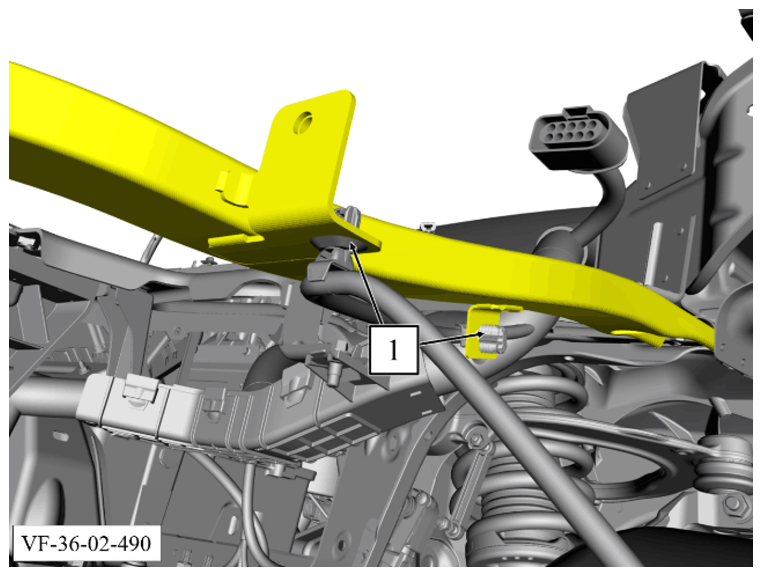

Remove 2 clips (1) from the front end module support bracket.

Courtesy of VINFAST, LLC

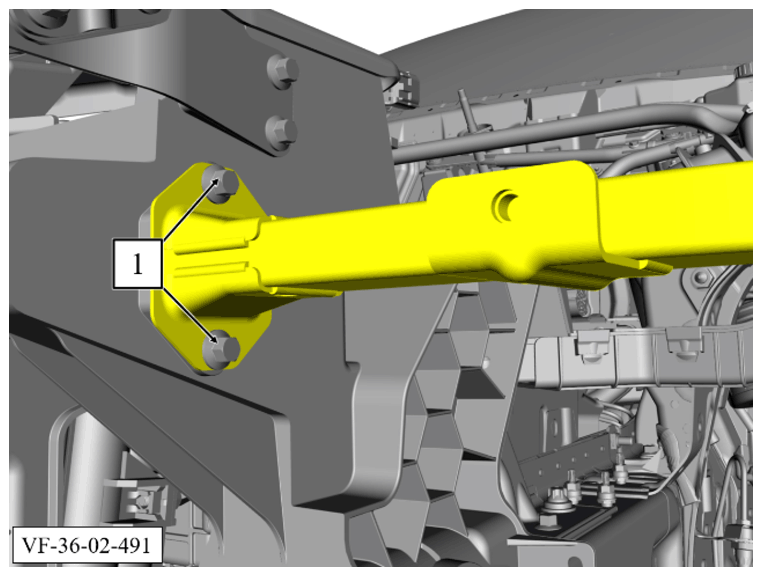

Remove 2 bolts (1).
Torque: 8 Nm

Courtesy of VINFAST, LLC

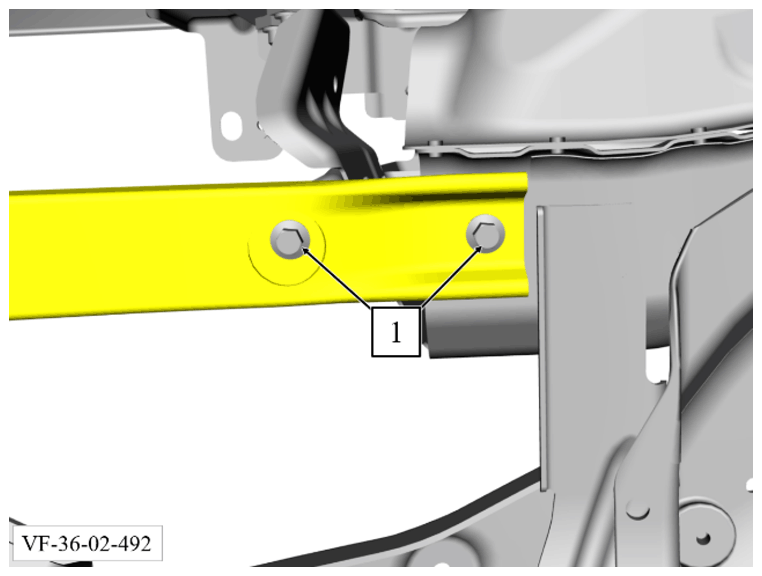

Remove 2 bolts (1) and remove front end module support bracket.
Torque: 8 Nm

Installation Procedure:

Installation is the reverse of removal procedure, noting the following.
All fasteners must be tightened to torque specification!
Install front wheelhouse liner. Refer to FRONT WHEELHOUSE LINER REMOVAL AND INSTALLATION/REPLACEMENT
Install headlamp. Refer to HEADLAMP REMOVAL AND INSTALLATION/REPLACEMENT
