Front Tire Air Deflector Removal And Installation/Replacement

Mobile Repair Possible:  No

Removal Procedure:

The procedure for the left-hand component is identical to that for the right-hand side.

1. Lift the vehicle. Refer to LIFTING AND JACKING THE VEHICLE
2. Turn the steering.

   Courtesy of VINFAST, LLC

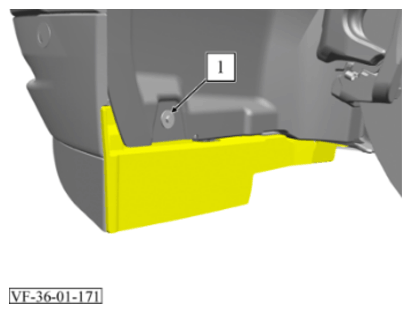

   Removal note: For better illustration, removal is shown with wheels removed.

3. Remove the screw (1).

   Torque: 2.60 Nm

   Removal note: For better illustration, removal is shown with wheels removed.

4. Remove 3 screws (1).

   Torque: 2.60 Nm

5. Push the front wheelhouse liner to the side and remove the front tire air deflector (2).

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.

   All fasteners must be tightened to torque specification!
