Strategy, Checks And Repair Verification : Notes
Mobile Repair Possible: Van/Car
Overview:
This instruction provides a complete strategy to diagnose and repair customer concerns, not following this process may cause additional diagnostic time and/or misdiagnosis. This instruction contains the following content.
- Checklist:
Standard list of checks to perform when diagnosing customer concerns
- Check Descriptions & References:
Detailed descriptions of each check to be carried out and relevant service information to support the checks
By following consistent steps for each situation, as shown in this and other service information will ensure an efficient and effective strategy for resolution of customer concerns and ensure that appropriate feedback to VinFast can be provided to aid in additional support and eliminating failures in the future. In summary the strategy of the checklist involves the following activities:
- Background Checks
- Vehicle System Checks
- Diagnostic Trouble Code Repair Sequence
- Repair Verification
Although the steps of the diagnostic process are listed in priority, you may not be required to complete every step in order to successfully diagnose a customer concern. The first step of your diagnostic process should always be investigating the customer's concern. The final step of your diagnostic process should be to verify the repair actions have been successful. Never clear diagnostic trouble codes (DTC's) unless instructed to do so by a DTC repair instruction.
In order to receive effective support from VinFast Technical Support and Quality departments for any concern that cannot be resolved, technicians may be asked to provide the completed checklist and diagnostic report generated during this process.

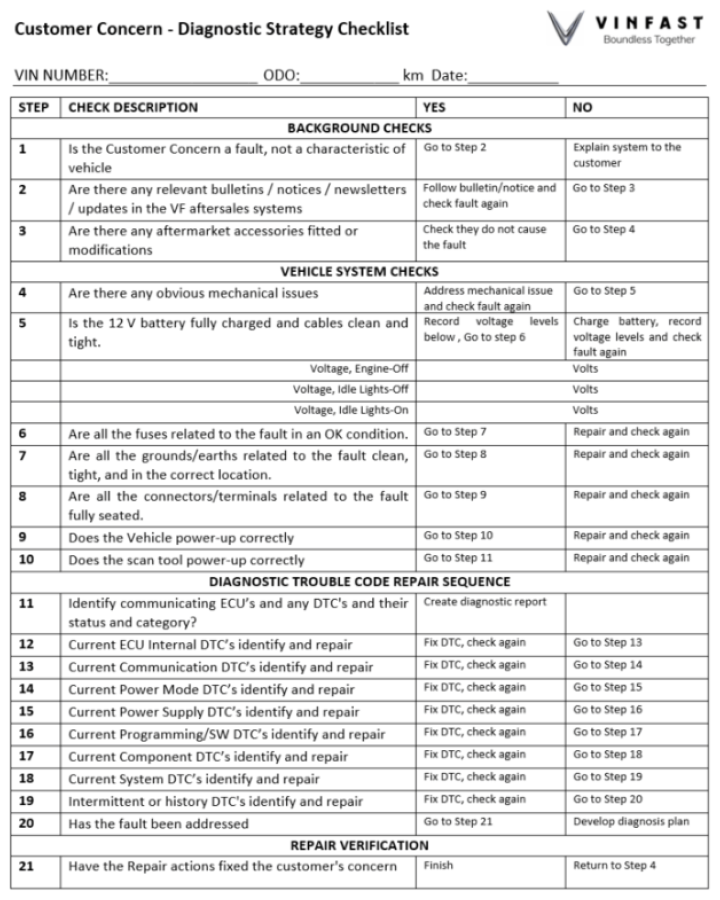

Checklist:
Below shows the Diagnostic Strategy Checklist. When completing this checklist fill out the VIN number of the subject vehicle, the ODO and the date. When working through the checks circle the relevant Yes/No comment.
Completing this form and creating a diagnostic report will be critical when requesting additional support from VinFast to resolve customer concerns.
Check Descriptions & References:
