Seat Belt System
Technical Description:

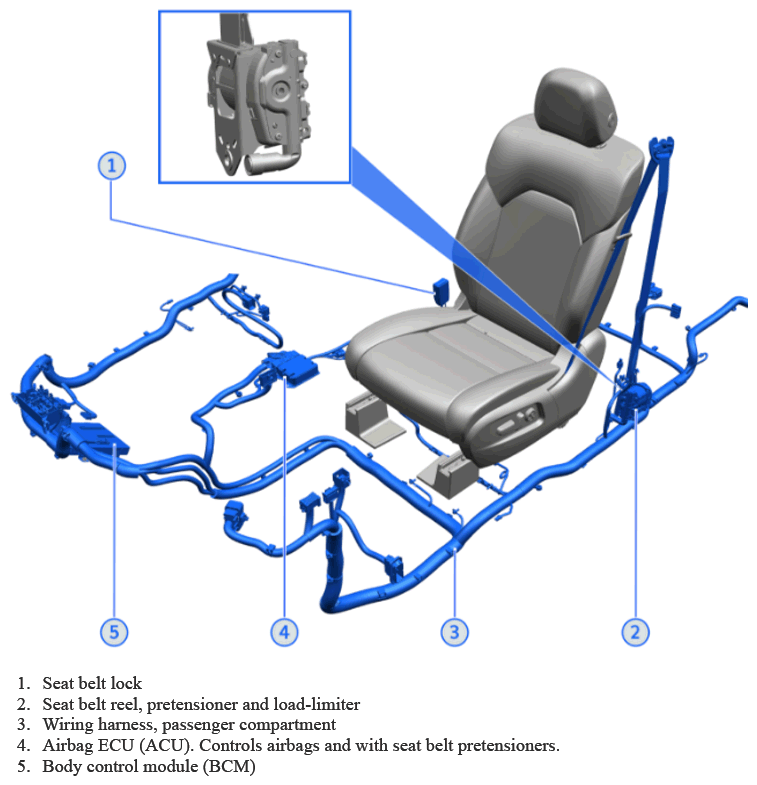

All seats in the vehicle are equipped with three-point seat belts with pretensioners.
The pretensioner ensures that the belt keeps the passenger in an optimum position. When a pretensioner system is deployed, the belt webbing is by tightened up to 150 mm. Pretensioners work pyrotechnically with explosive charges.
A gas generator (similar concept to airbag deployment), is activated by an electrical signal from the ACU (Airbag Control Unit) immediately after deployment.

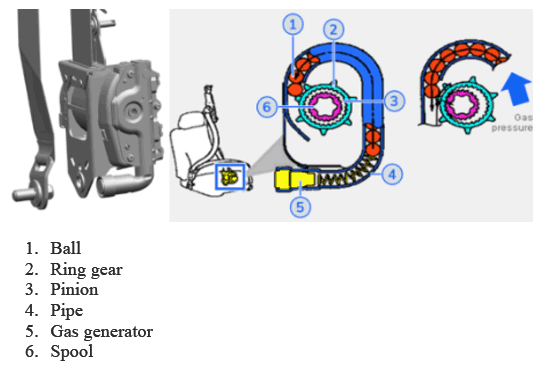

Gas expansion causes balls to travel along the tube and rotate a pinion attached to the belt spool, which is activated in about 2 ms.
Once they have been deployed, pretensioner systems are no longer effective, and have to be replaced.
WARNING:
Risk of injury
Failure to follow specified procedures will result in death or serious injury.
Failure to follow specified procedures will result in death or serious injury.
- No repairs may be made to the individual components.
- Electrical testing of the systems may only be carried out when they are installed, and there must be nobody inside the vehicle. Resistance measurements and measurements with the test lamp are forbidden.
