Electric Motor Component Identification

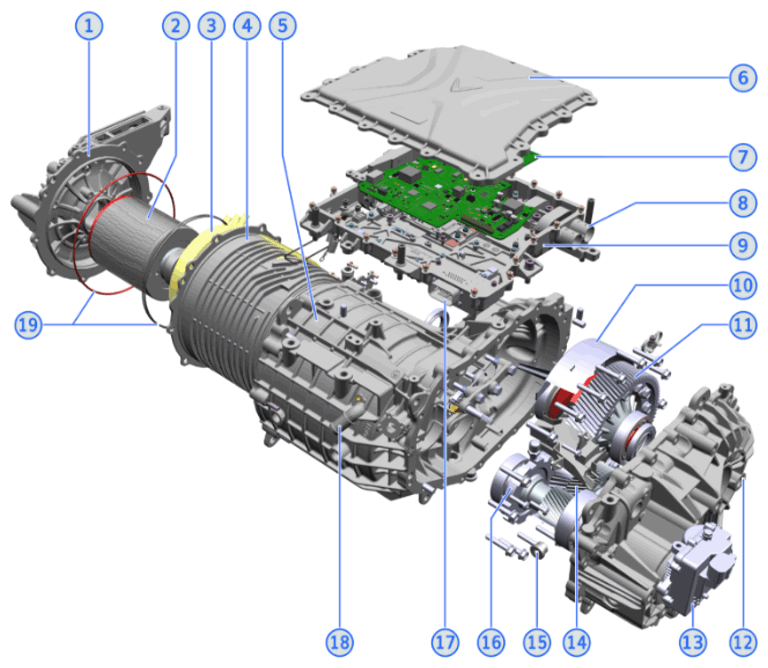

EDS Components - Overview:
- Rear stator housing with resolve housing
- Rotor assembly
- Stator core assembly
- Inner stator housing
- Outer stator housing
- Controller upper housing
- PCBA
- HV connector
- Controller lower housing
- Oil splash guard
- Reduction gear with differential
- Transmission housing
- Electric parking actuator
- Gear set
- Oil level plug
- Park lock mechanism
- LV connector
- Water cooling connector (outlet)
- Gasket

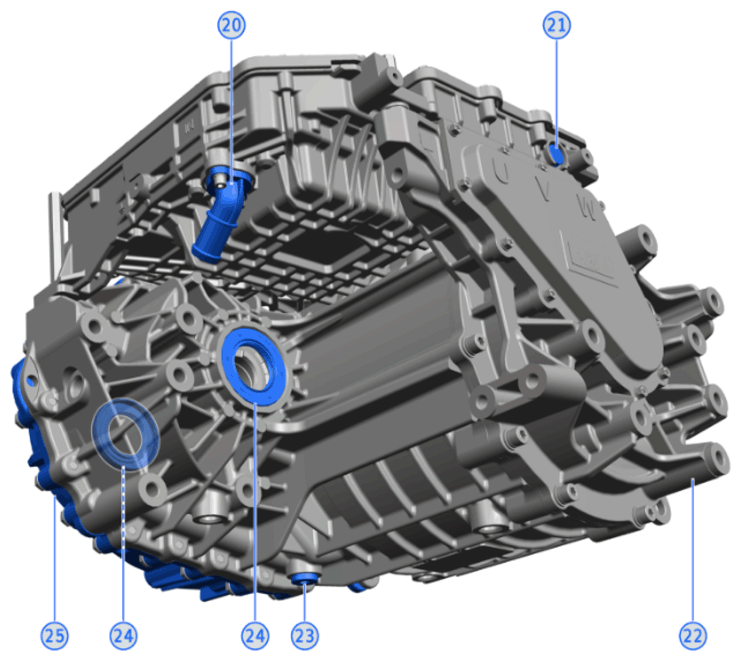

EDS Components (Bottom View):
- Water cooling connector (inlet)
- Water breathable valve
- Outer stator housing
- Oil drain plug
- Oil seal
- Transmission housing
