Electronic Shifter Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Removal Procedure:

1. Disconnect the 12V battery negative terminal. Refer to 12V BATTERY NEGATIVE CABLE DISCONNECTION/CONNECTION
2. Remove the front floor console cup holder bezel trim. Refer to FRONT FLOOR CONSOLE CUP HOLDER BEZEL TRIM REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

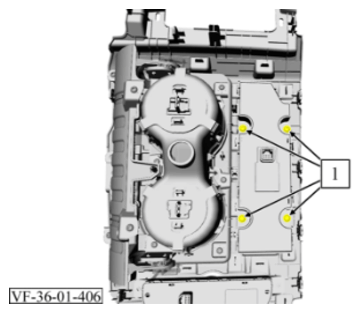

3. Remove 4 screws (1).

   Torque: 2.8 Nm

   Courtesy of VINFAST, LLC

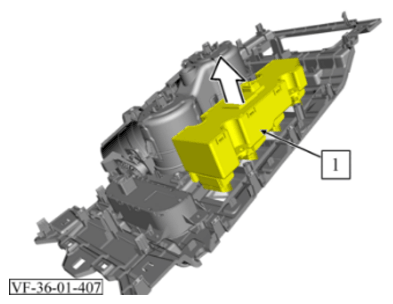

4. Remove the electronic shifter (1).

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following. All fasteners must be tightened to torque specification!
2. Install the front floor console cup holder bezel trim. Refer to FRONT FLOOR CONSOLE CUP HOLDER BEZEL TRIM REMOVAL AND INSTALLATION/REPLACEMENT
3. Reconnect the 12V battery negative terminal. Refer to 12V BATTERY NEGATIVE CABLE DISCONNECTION/CONNECTION
