Miscellaneous Components

MISCELLANEOUS COMPONENTS LOCATION

Component Location

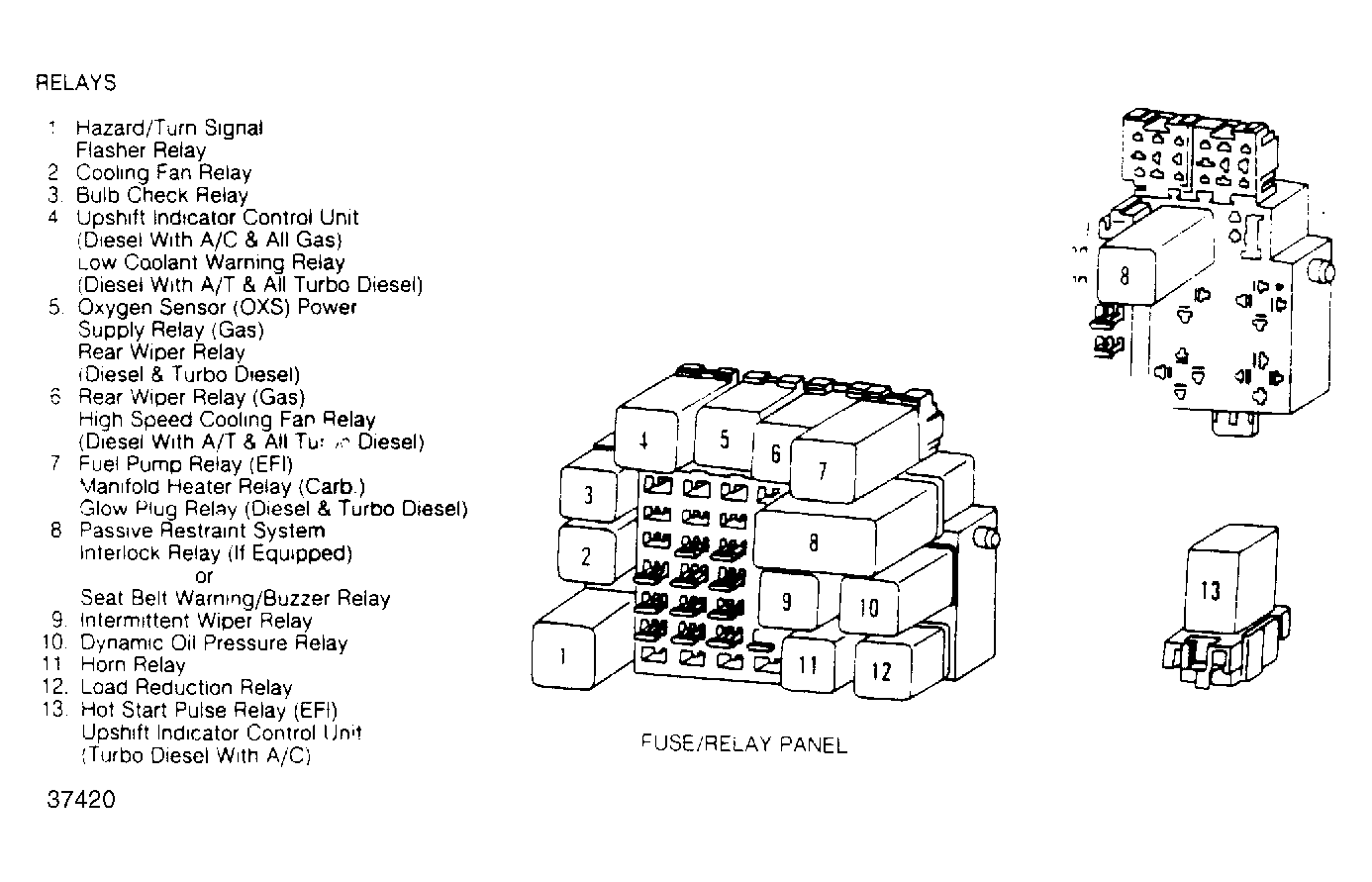

Fuse/Relay Panel Under left side of dash. See Figure .
Oxygen Sensor Mileage counter At tray area at rear of engine compartment.
