Fuses & Circuit Breakers: Notes

NOTE: Jetta, Rabbit, Rabbit Convertible and Pickups use different fuse boxes depending on the country of manufacture.

The fuse panel is located under the left side of the dash board by the driver's knee.

NOTE: On all models, fuse specifications are listed on inside of panel cover.

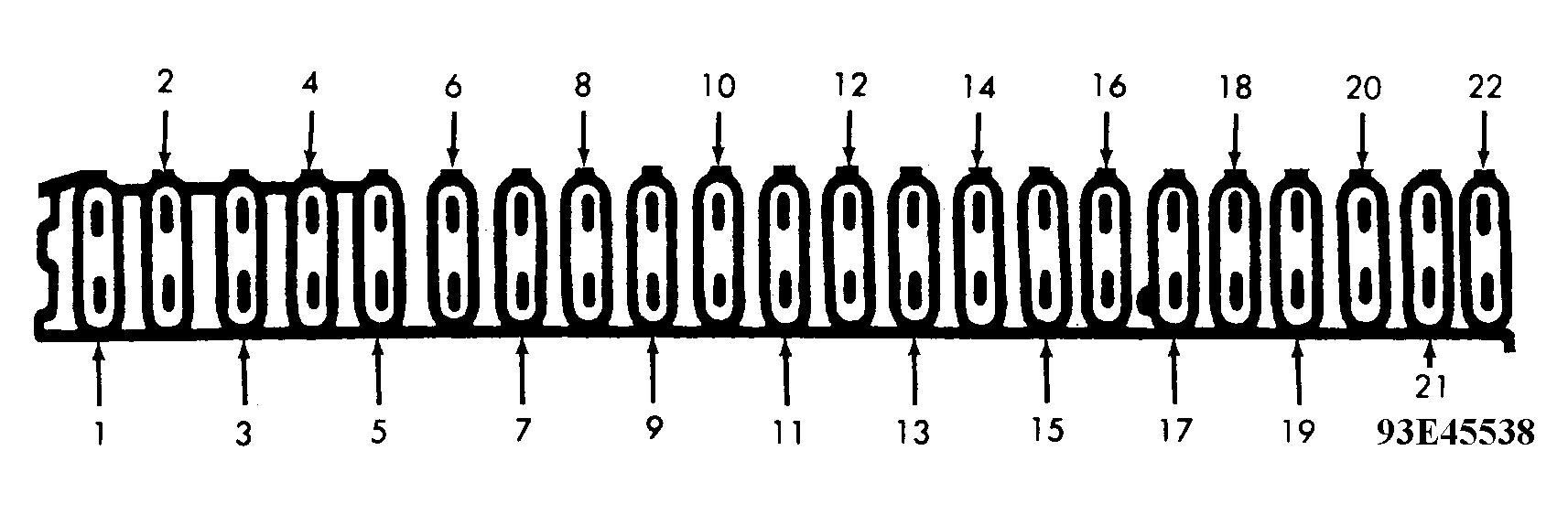

Fig 1: Fuse Panel Identification (1983 Convertible - German)
G93E45538Courtesy of VOLKSWAGEN UNITED STATES, INC.
