Rabbit Base, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Feedback Carburetor System
>>
Wiring Diagrams
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Wiring Diagrams

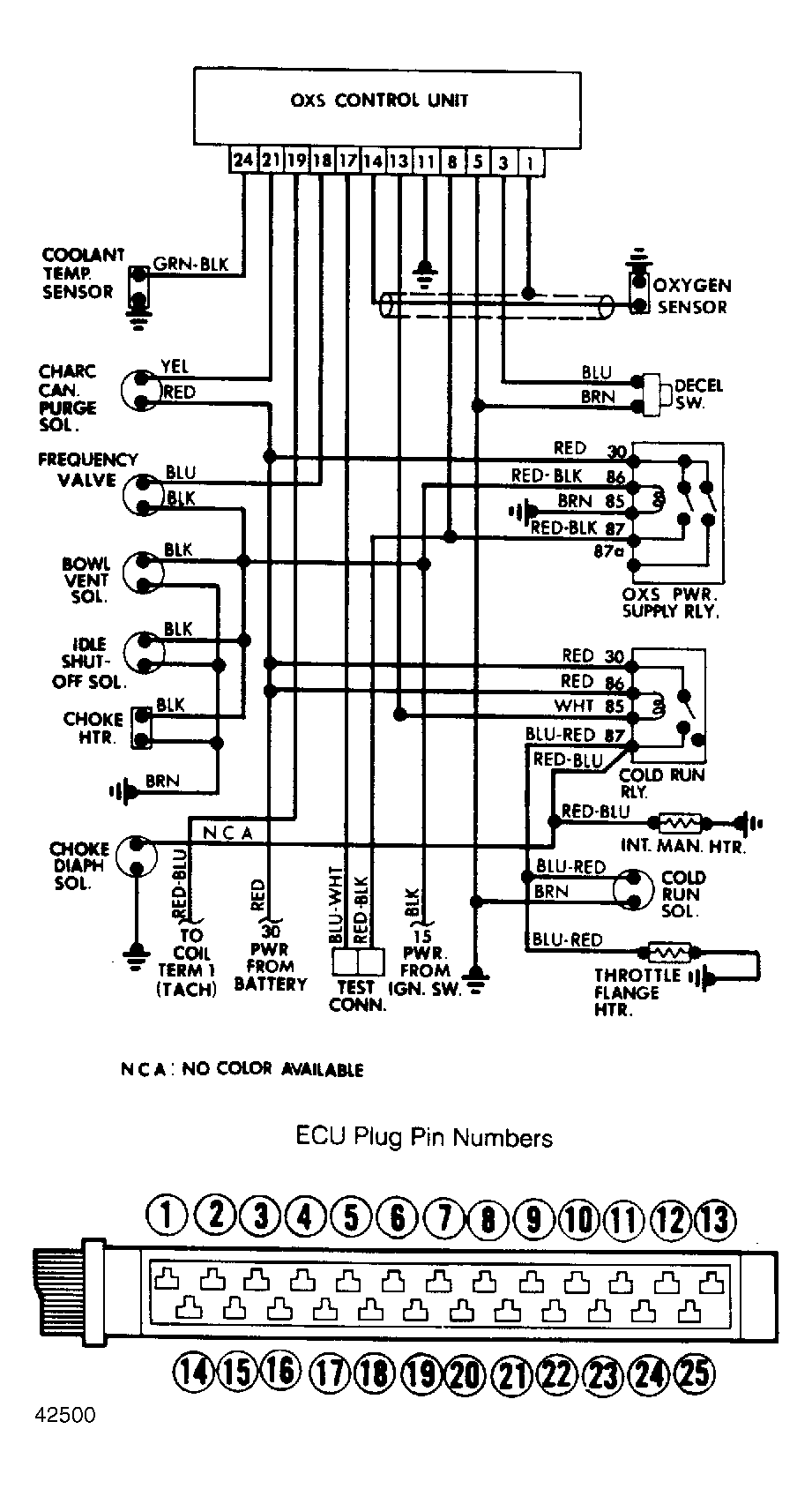

Fig 1: Wiring Diagram for Rabbit Feedback Carburetor Use pin numbers shown at ECU plug for testing procedure.
