Knock Sensor Control Unit: Notes

NOTE: For complete testing of Volkswagen knock control system (except Volkswagen 16-valve models), manufacturer recommends the use of Special System Tester.

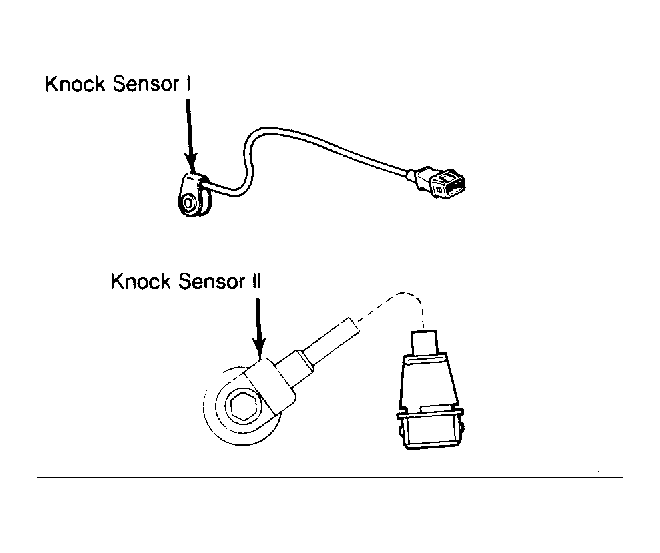

Fig 1: Knock Sensor Identification
G62505Courtesy of AUDI OF AMERICA, INC.
