Alignment Specifications

WHEEL ALIGNMENT SPECIFICATIONS

Application Specification
Cabriolet, Scirocco
Front
Camber in Degrees
Fraction 21/64 +/- 1
Decimal .333 +/- 1.0
Caster in Degrees
Fraction 1 53/64 +/- 1
Decimal 1.833 +/- 1.0
Toe-In in Inches
Fraction 11/64 +/- 5/64
Decimal .166 +/- .083
Toe-In in Degrees
Fraction 21/64 +/- 13/64
Decimal .333 +/- .208
Toe-Out in Turns
Inner (2)
Outer (2)
Steering Axis Inclination (SAI) (2)
Rear
Camber in Degrees
Fraction -1 1/4 +/- 1 1/2
Decimal -1.250 +/- 1.500
Caster in Degrees
Fraction N/A
Decimal N/A
Toe-In in Inches
Fraction 1/4 +/- 11/64
Decimal .250 +/- .166
Toe-In in Degrees
Fraction 1/2 +/- 21/64
Decimal .500 +/- .333
Toe-Out in Turns
Inner N/A
Outer N/A
Steering Axis Inclination (SAI) N/A
Fox Sedan
Front
Camber in Degrees
Fraction -1/2 +/- 21/64
Decimal .500 +/- .333
Caster in Degrees
Fraction 2 +/- 21/64
Decimal 2.0 +/- .333
Toe-In in Inches
Fraction -5/64 +/- 5/64
Decimal -.083 +/- .083
Toe-In in Degrees
Fraction -21/64 +/- 21/64
Decimal -.166 +/- .166
Toe-Out in Turns
Inner (2)
Outer (2)
Steering Axis Inclination (SAI) (2)
Rear
Camber in Degrees
Fraction 1 1/2 +/- 1/2
Decimal 1.500 +/- .500
Caster in Degrees
Fraction N/A
Decimal N/A
Toe-In in Inches
Fraction 13/64 +/- 5/64
Decimal .208 +/- .083
Toe-In in Degrees
Fraction 27/64 +/- 11/64
Decimal .416 +/- .166
Toe-Out in Turns
Inner N/A
Outer N/A
Steering Axis Inclination (SAI) N/A
Fox Wagon
Front
Camber in Degrees
Fraction -1/2 +/- 21/64
Decimal .500 +/- .333
Caster in Degrees
Fraction 1 5/64 +/- 21/64
Decimal 1.083 +/- .333
Toe-In in Inches
Fraction -5/64 +/- 5/64
Decimal -.083 +/- .083
Toe-In in Degrees
Fraction -21/64 +/- 21/64
Decimal -.166 +/- .166
Toe-Out in Turns
Inner (2)
Outer (2)
Steering Axis Inclination (SAI) (2)
Rear
Camber in Degrees
Fraction 1 1/2 +/- 1/2
Decimal 1.500 +/- .500
Caster in Degrees
Fraction N/A
Decimal N/A
Toe-In in Inches
Fraction 13/64 +/- 5/64
Decimal .208 +/- .083
Toe-In in Degrees
Fraction 27/64 +/- 11/64
Decimal .416 +/- .166
Toe-Out in Turns
Inner N/A
Outer N/A
Steering Axis Inclination (SAI) N/A
Golf & Jetta
Front
Camber in Degrees
Fraction -1/2 +/- 21/64
Decimal -.500 +/- .333
Caster in Degrees
Fraction 1 1/2 +/- 1/2
Decimal 1.500 +/- .500
Toe-In in Inches
Fraction 0 +/- 5/64
Decimal 0 +/- .083
Toe-In in Degrees
Fraction 0 +/- 11/64
Decimal 0 +/- .166
Toe-Out in Turns
Inner (2)
Outer (2)
Steering Axis Inclination (SAI) (2)
Rear
Camber in Degrees
Fraction -1 43/64 +/- 21/64
Decimal -1.666 +/- .333
Caster in Degrees
Fraction N/A
Decimal N/A
Toe-In in Inches
Fraction 13/64 +/- 1/8
Decimal .208 +/- .125
Toe-In in Degrees
Fraction 27/64 +/- 1/4
Decimal .416 +/- .250
Toe-Out in Turns
Inner N/A
Outer N/A
Steering Axis Inclination (SAI) N/A
GTI & GLI
Front
Camber in Degrees
Fraction -37/64 +/- 21/64
Decimal -.583 +/- .333
Caster in Degrees
Fraction 1 37/64 +/- 1/2
Decimal 1.583 +/- .500
Toe-In in Inches
Fraction 0 +/- 5/64
Decimal 0 +/- .083
Toe-In in Degrees
Fraction 0 +/- 1/8
Decimal 0 +/- .125
Toe-Out in Turns
Inner (2)
Outer (2)
Steering Axis Inclination (SAI) (2)
Rear
Camber in Degrees
Fraction -1 43/64 +/- 21/64
Decimal -1.666 +/- .333
Caster in Degrees
Fraction N/A
Decimal N/A
Toe-In in Inches
Fraction N/A
Decimal N/A
Toe-In in Degrees
Fraction N/A
Decimal N/A
Toe-Out in Turns
Inner N/A
Outer N/A
Steering Axis Inclination (SAI) N/A
Quantum

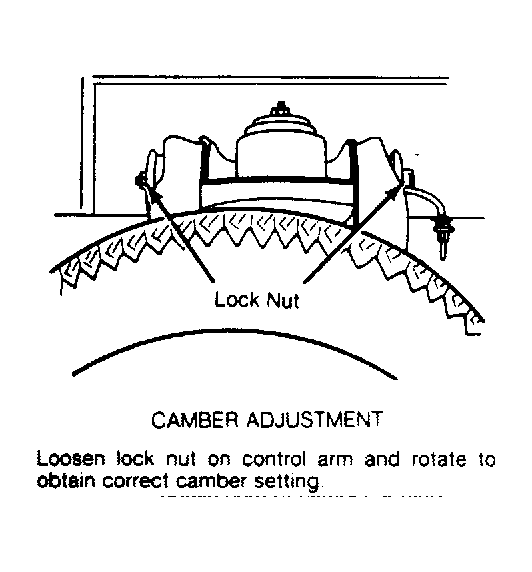

Front (See Figure ) (1)
Camber in Degrees
Fraction -43/64 +/- 1/2
Decimal -.666 +/- .500
Caster in Degrees
Fraction 1/2 +/- 1/2
Decimal .500 +/- .500
Toe-In in Inches
Fraction 5/64 +/- 3/64
Decimal .083 +/- .042
Toe-In in Degrees
Fraction 11/64 +/- 1/8
Decimal .166 +/- .125
Toe-Out in Turns
Inner (2)
Outer (2)
Steering Axis Inclination (SAI) (2)
Rear
Camber in Degrees
Fraction -1 43/64 +/- 21/64
Decimal -1.666 +/- .333
Caster in Degrees
Fraction N/A
Decimal N/A
Toe-In in Inches
Fraction 13/64 +/- 1/8
Decimal .208 +/- .125
Toe-In in Degrees
Fraction 27/64 +/- 1/4
Decimal .416 +/- .250
Toe-Out in Turns
Inner N/A
Outer N/A
Steering Axis Inclination (SAI) N/A
Quantum Synchro
Front
Camber in Degrees
Fraction 43/64 +/- 1
Decimal .333 +/- 1.0
Caster in Degrees
Fraction 1/2 +/- 11/64
Decimal .500 +/- .166
Toe-In in Inches
Fraction 5/64 +/- 3/64
Decimal .083 +/- .042
Toe-In in Degrees
Fraction 11/64 +/- 5/64
Decimal .166 +/- .083
Toe-Out in Turns
Inner (2)
Outer (2)
Steering Axis Inclination (SAI) (2)
Rear
Camber in Degrees
Fraction -37/64 +/- -1/2
Decimal -.583 +/- -.500
Caster in Degrees
Fraction N/A
Decimal N/A
Toe-In in Inches
Fraction 11/64 +/- 5/64
Decimal .166 +/- .083
Toe-In in Degrees
Fraction 21/64 +/- 11/64
Decimal .333 +/- .166
Toe-Out in Turns
Inner N/A
Outer N/A
Steering Axis Inclination (SAI) N/A
Vanagon

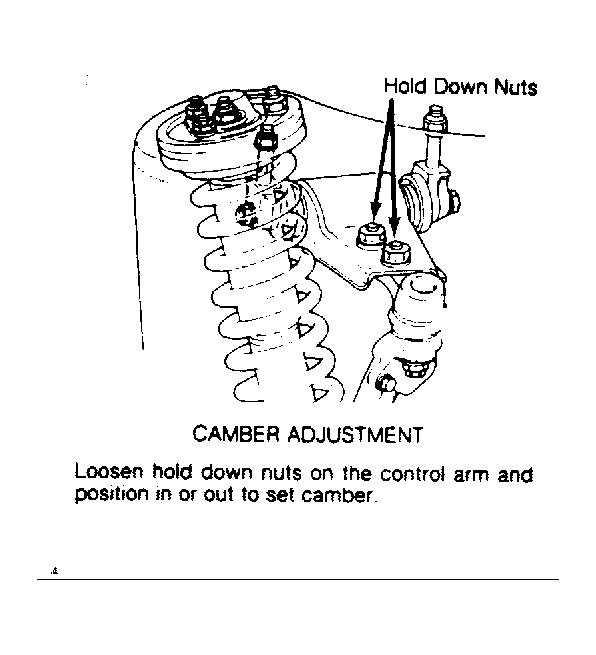

Front (See Figure & Figure )
Camber in Degrees
Fraction 0 +/- 1/2
Decimal 0 +/- .500
Caster in Degrees
Fraction 7 1/4 +/- 1/4
Decimal 7.250 +/- .250
Toe-In in Inches
Fraction 11/64 +/- 1/4
Decimal .166 +/- .250
Toe-In in Degrees
Fraction 21/64 +/- 1/2
Decimal .333 +/- .500
Toe-Out in Turns
Inner (2)
Outer (2)
Steering Axis Inclination (SAI) (2)
Rear (See Figure )
Camber in Degrees
Fraction -53/64 +/- 1/2
Decimal -.833 +/- . 500
Caster in Degrees
Fraction N/A
Decimal N/A
Toe-In in Inches
Fraction 0 +/- 3/32
Decimal 0 +/- .083
Toe-In in Degrees
Fraction 0 +/- 3/16
Decimal 0 +/- .166
Toe-Out in Turns
Inner N/A
Outer N/A
Steering Axis Inclination (SAI) N/A
Vanagon Synchro
Front
Camber in Degrees
Fraction 21/64 +/- 21/64
Decimal .333 +/- .333
Caster in Degrees
Fraction 4 43/64 +/- 1/4
Decimal 4.666 +/- .250
Toe-In in Inches
Fraction 0 +/- 11/64
Decimal 0 +/- .166
Toe-In in Degrees
Fraction 0 +/- 5/16
Decimal 0 +/- .313
Toe-Out in Turns
Inner (2)
Outer (2)
Steering Axis Inclination (SAI) (2)
Rear
Camber in Degrees
Fraction -1/4 +/- 11/64
Decimal -.250 +/- .166
Caster in Degrees
Fraction N/A
Decimal N/A
Toe-In in Inches
Fraction 5/64 +/- 11/64
Decimal .083 +/- .166
Toe-In in Degrees
Fraction 5/32 +/- 5/16
Decimal .166 +/- .313
Toe-Out in Turns
Inner N/A
Outer N/A
Steering Axis Inclination (SAI) N/A
(1) Caster and rear camber are not adjustable.
(2) Information not available.
