Wiring Diagrams

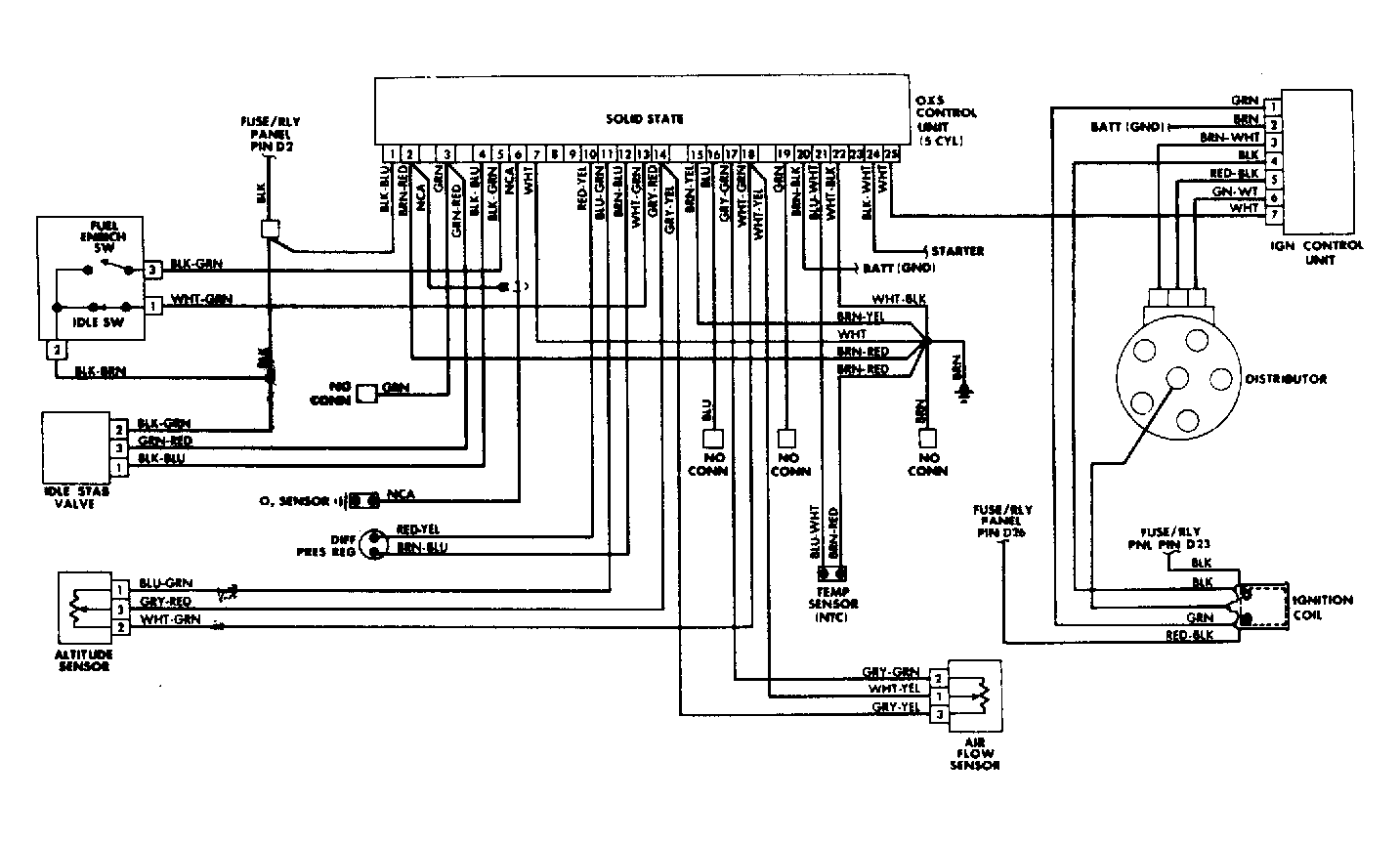

Fig 1: Fox CIS-E Wiring Diagram

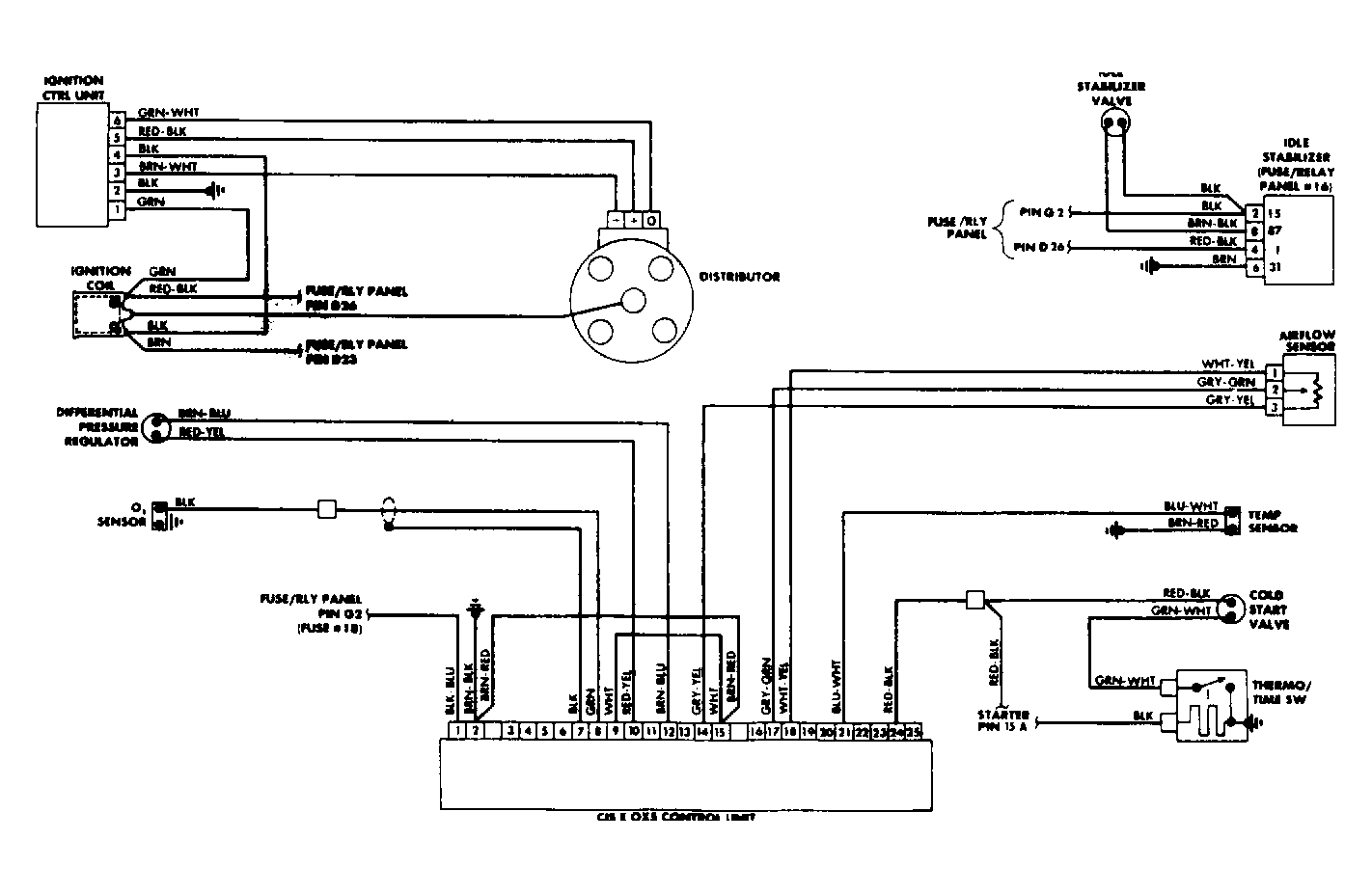

Fig 2: Golf CIS-E Wiring Diagram

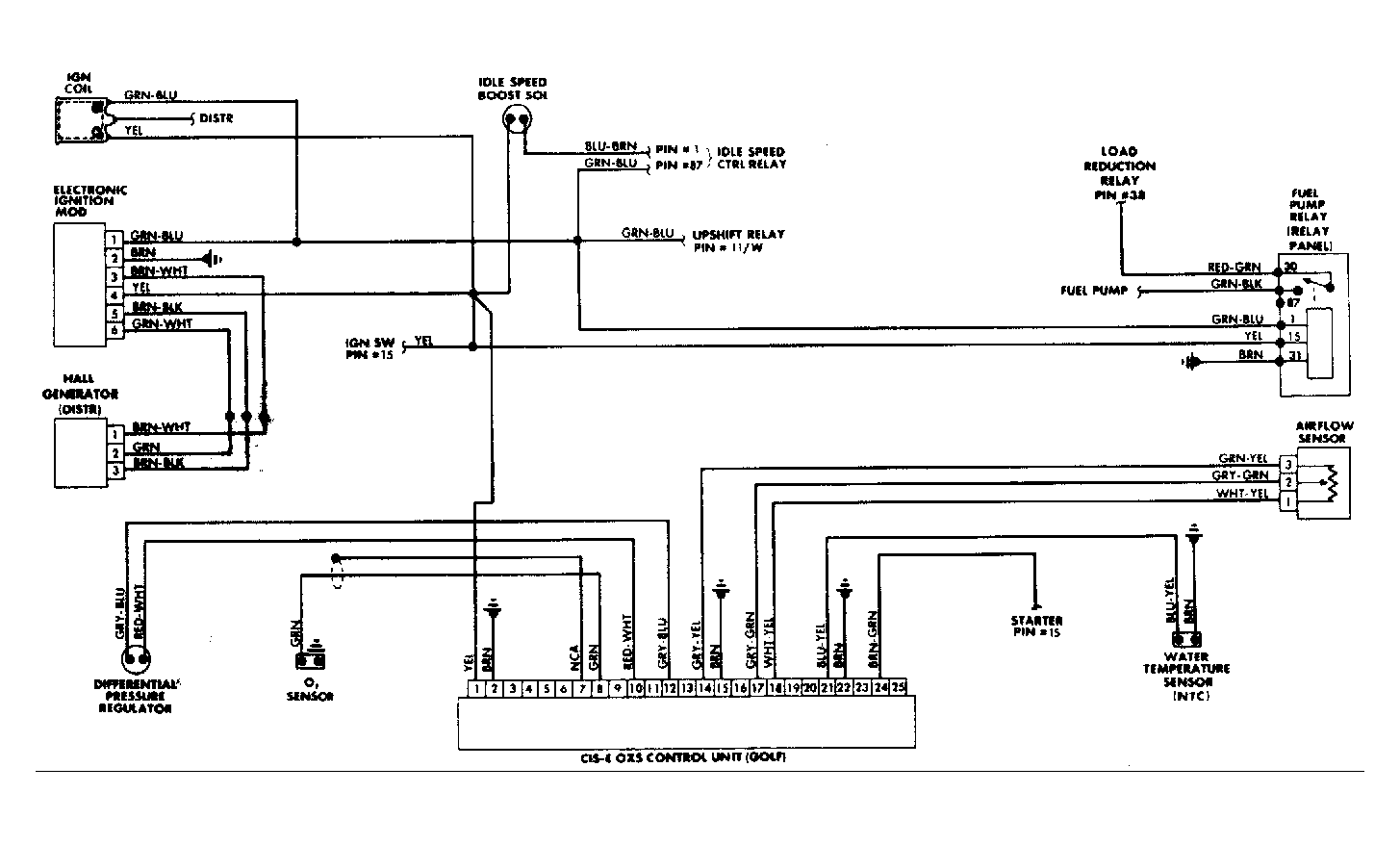

Fig 3: Volkswagen GTI CIS-E Wiring Diagram

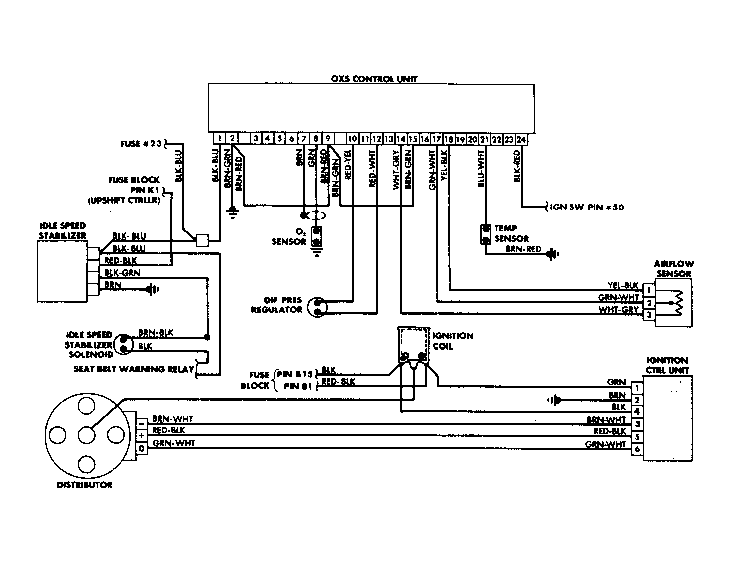

Fig 4: Jetta & Jetta GLI (8-Valve) CIS-E Wiring Diagram

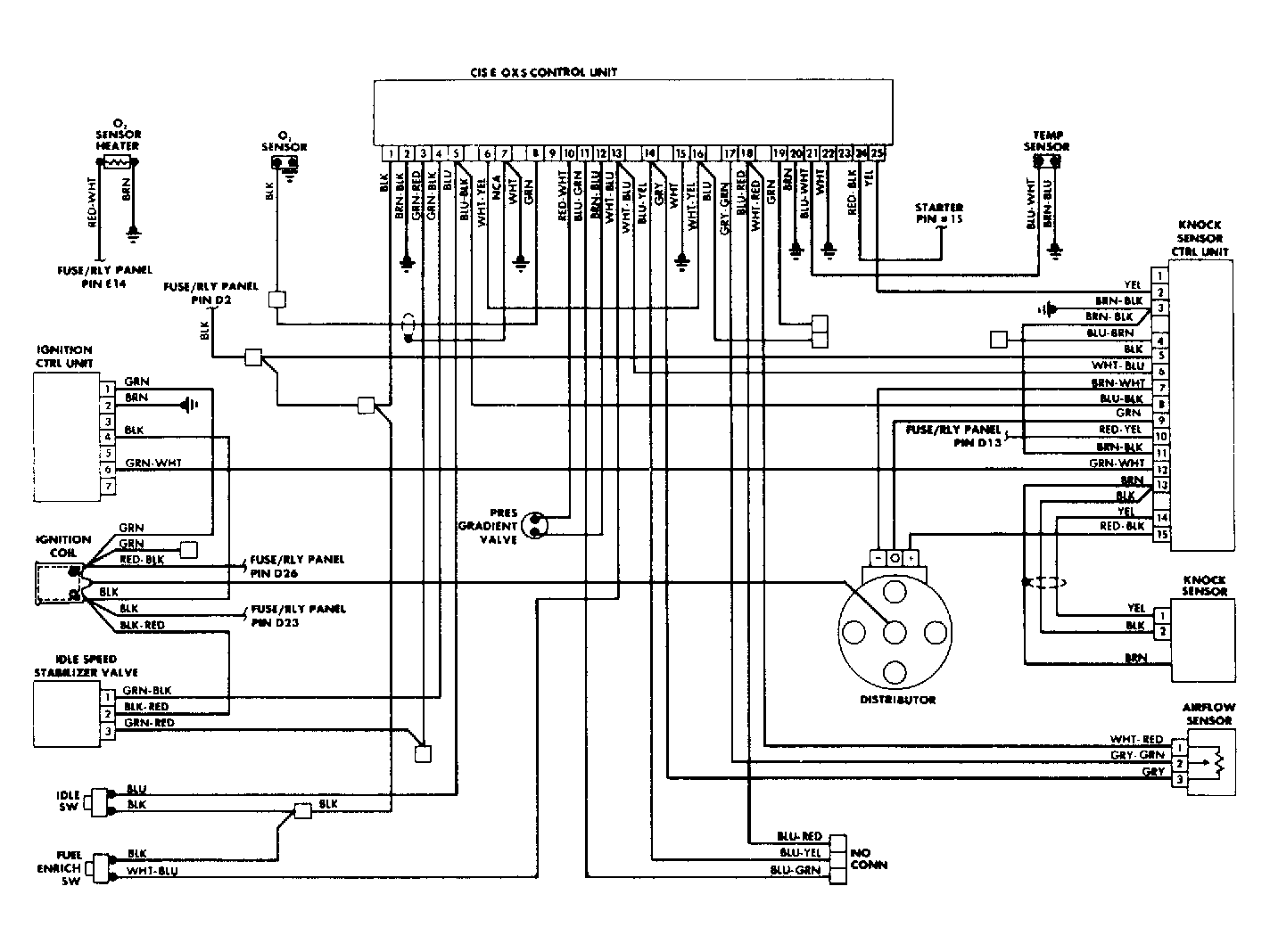

Fig 5: Jetta GLI (16-Valve) CIS-E Wiring Diagram

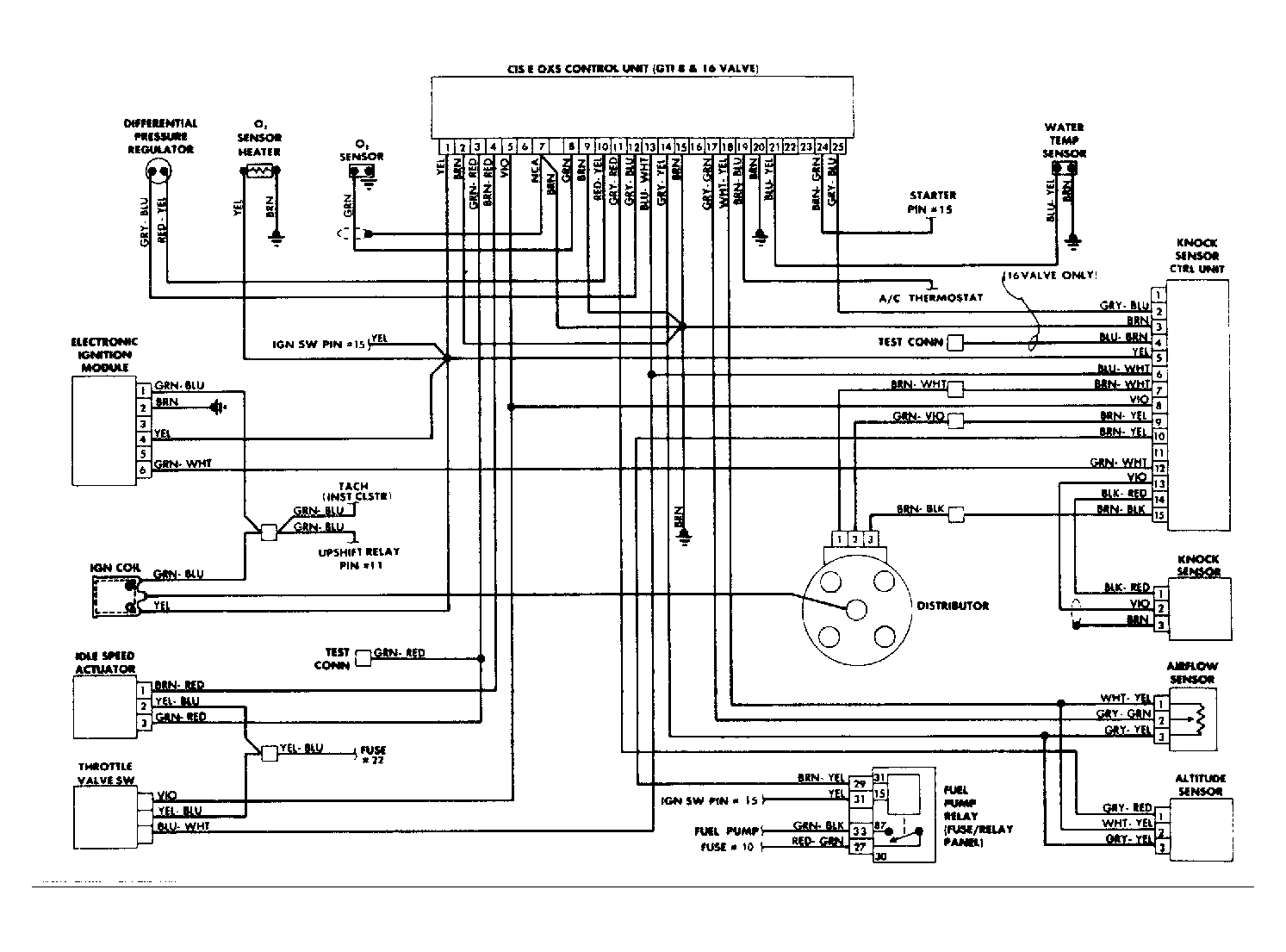

Fig 6: Scirocco (16-Valve) CIS-E Wiring Diagram

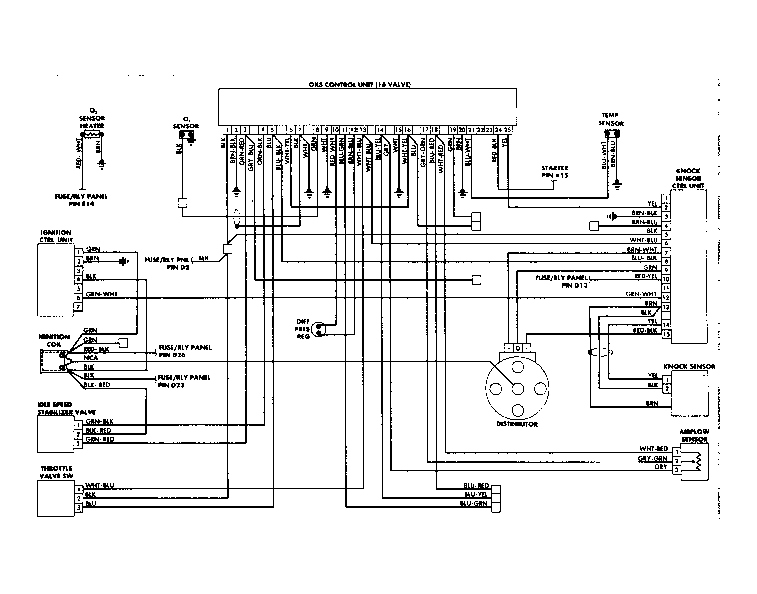

Fig 7: Quantum & Quantum Syncro CIS-E Wiring Diagram
