Wiring Diagrams

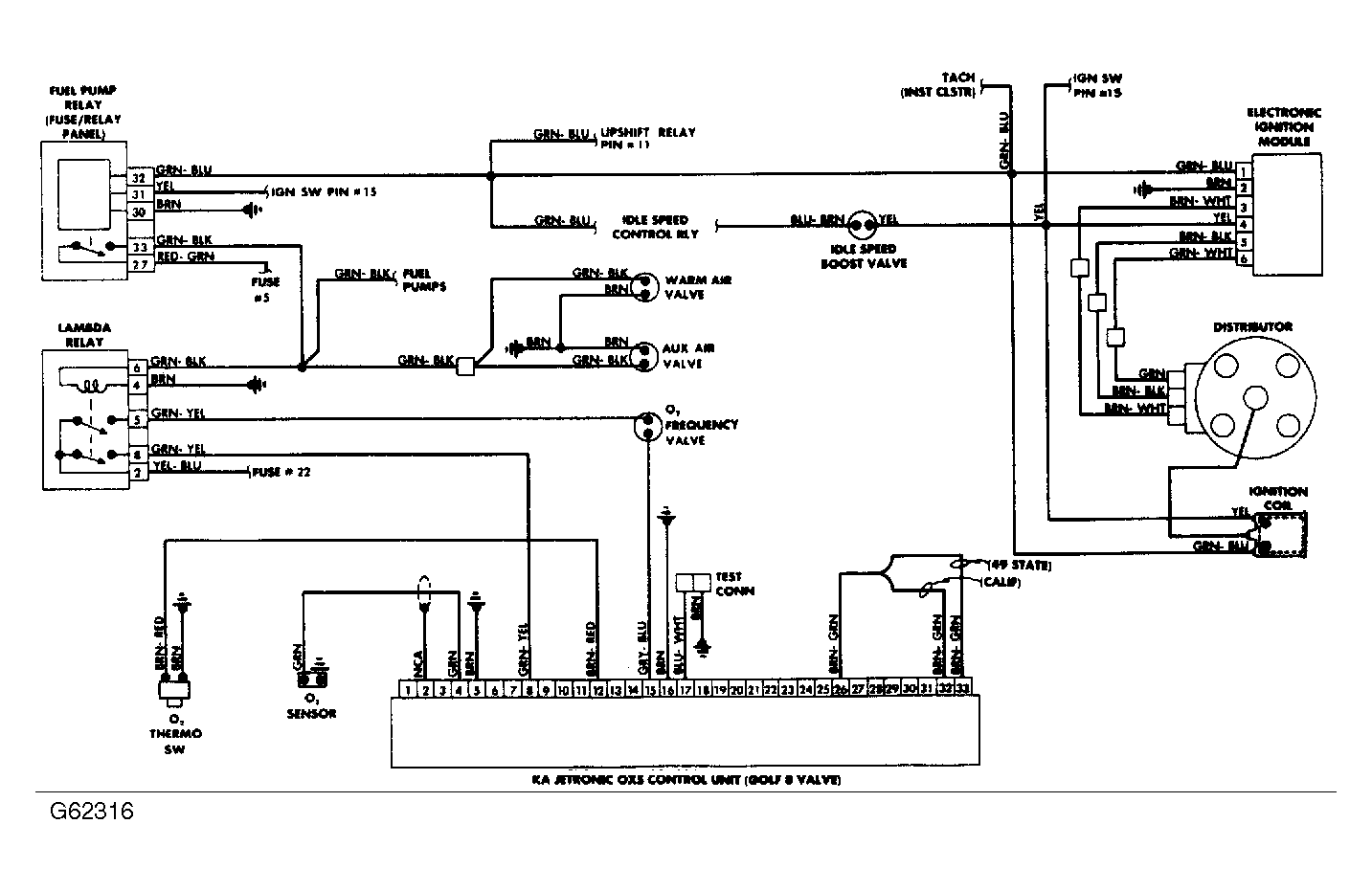

Fig 1: CIS (Lambda) Wiring Diagram for Volkswagen Cabriolet
G62316

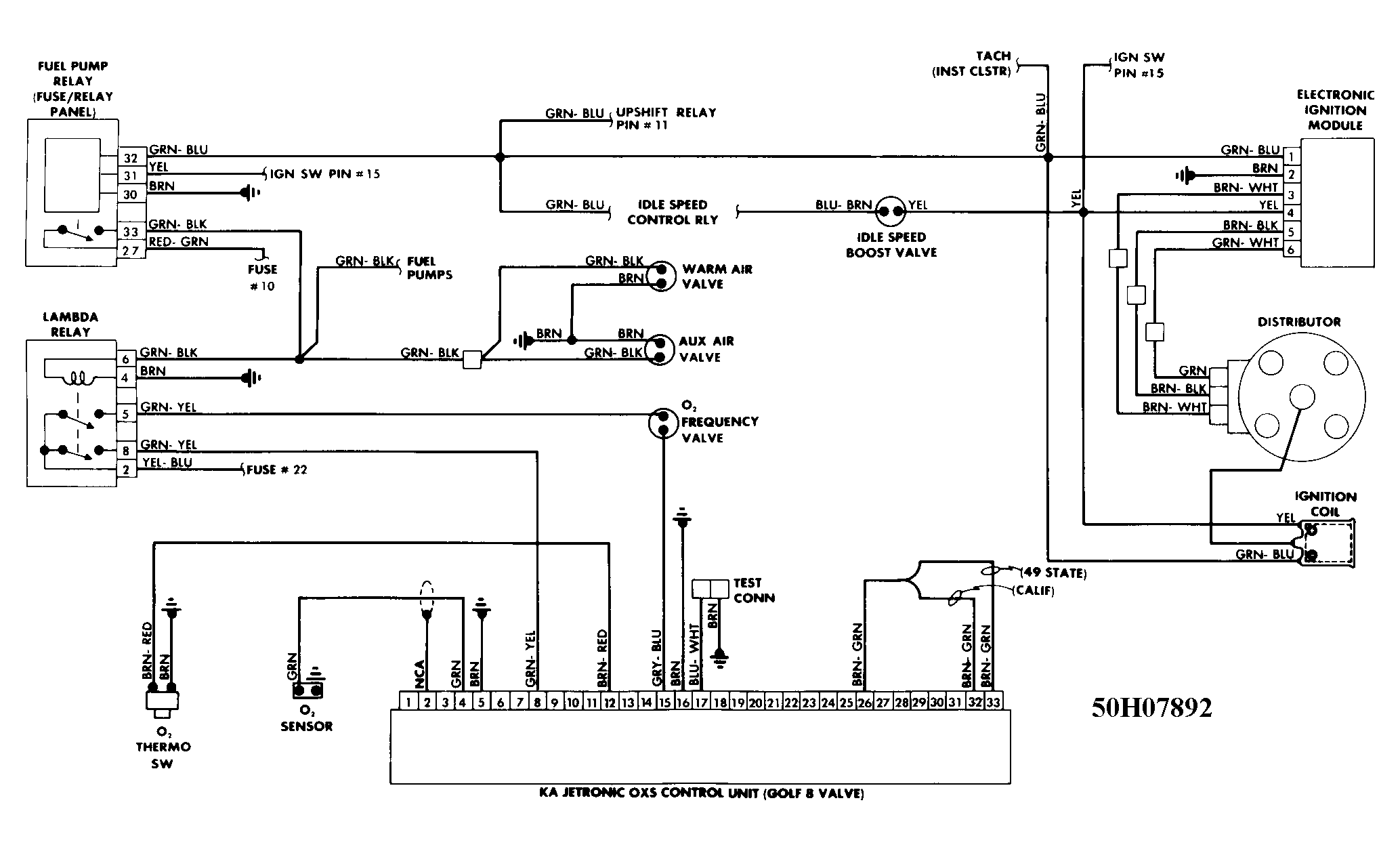

Fig 2: CIS (Lambda) Wiring Diagram for Volkswagen Golf
G50H07892

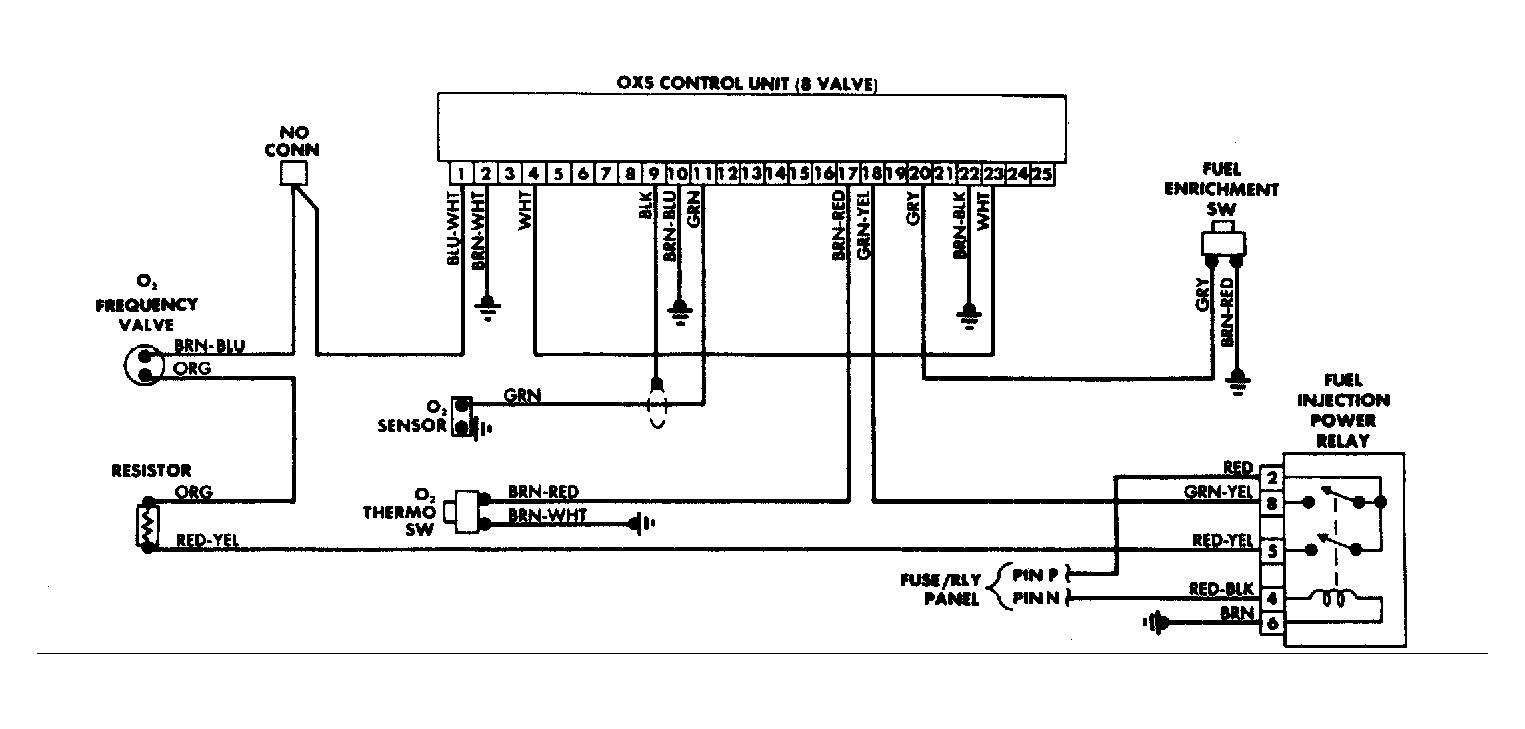

Fig 3: CIS (Lambda) Wiring Diagram for Volkswagen Jetta
G62317
