Fuel Pump Relay (CORRADO)

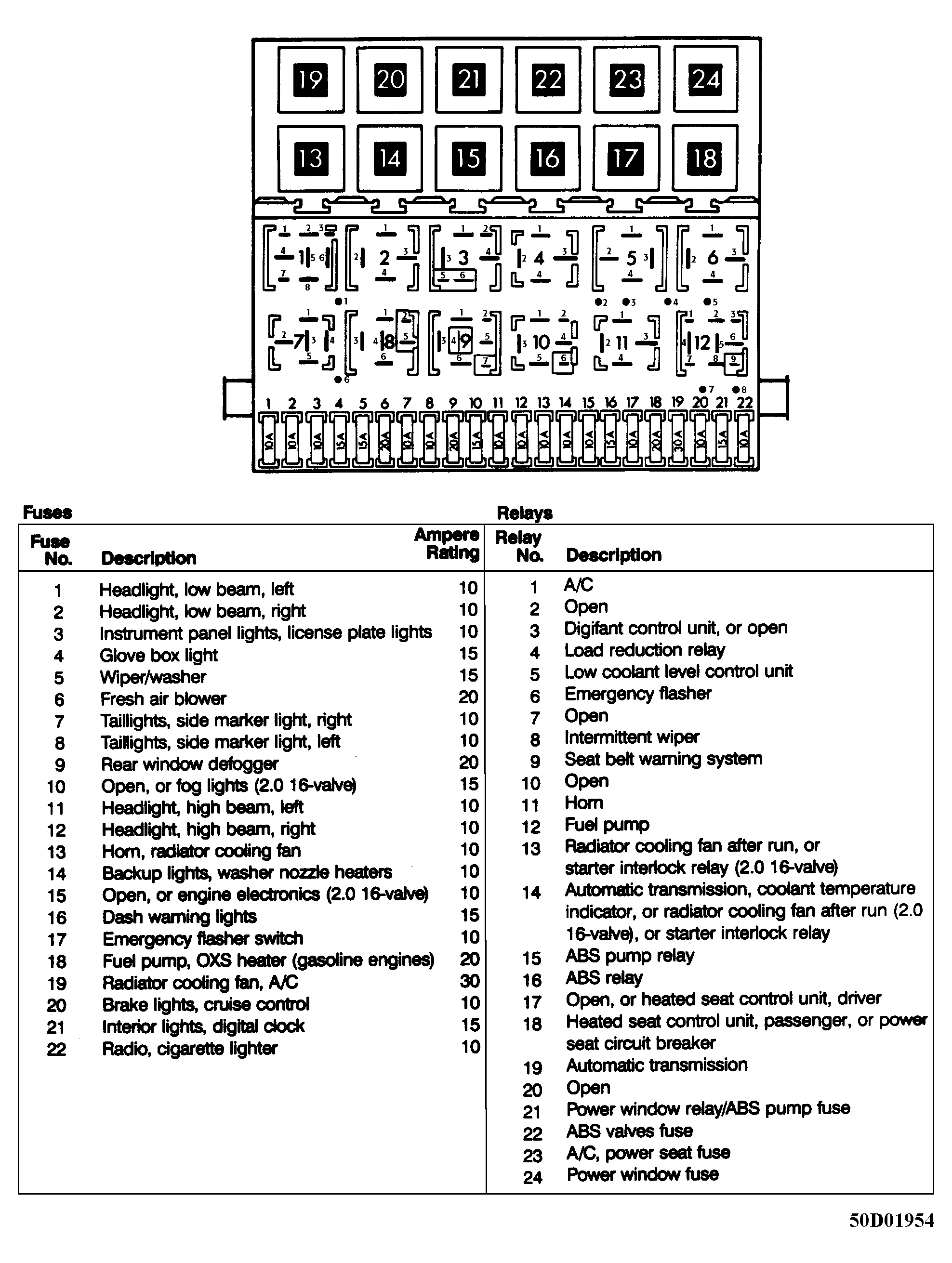

- Ensure fuel pump fuse No. 18 is okay. Remove fuel pump relay No. 12 from fuse/relay panel. See Figure
. With ignition on, check for battery voltage between the following locations:
- Terminal No. 6 and ground.
- Terminal No. 2 and ground.
- Terminals No. 6 and No. 4.
- If battery voltage is not present, check wiring and repair as needed. Check fuel pump operation. With ignition off, connect voltmeter between terminals No. 2 and No. 3. Turn ignition on. Voltage should be present for one second. If voltage is not present for one second, check wiring to ECU or replace ECU. Check fuel pump relay operation. For fuel pump and fuse number/location, see FUEL PUMP RELAY & FUSE NUMBER table.
