Engine Code Location

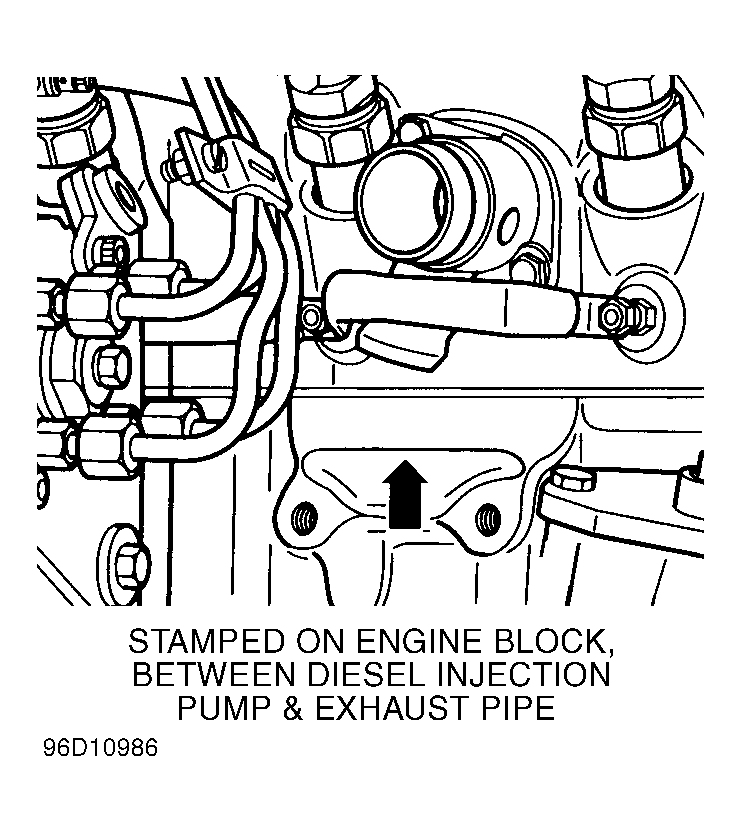

Fig 1: Engine Identification Codes (1.9L 4-Cyl. Turbo Diesel)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

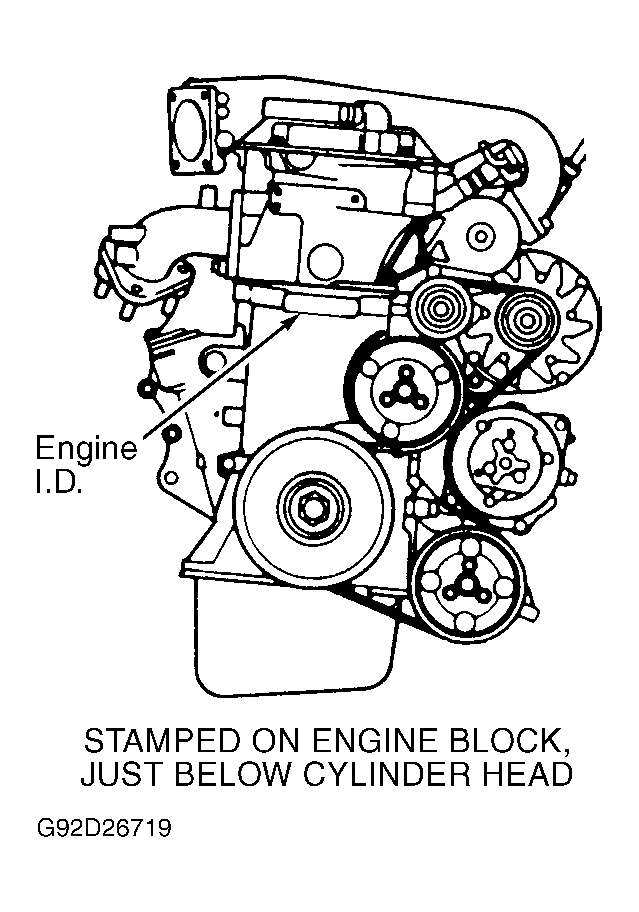

Fig 2: Locating Engine Identification Codes (2.0L 4-Cyl.)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

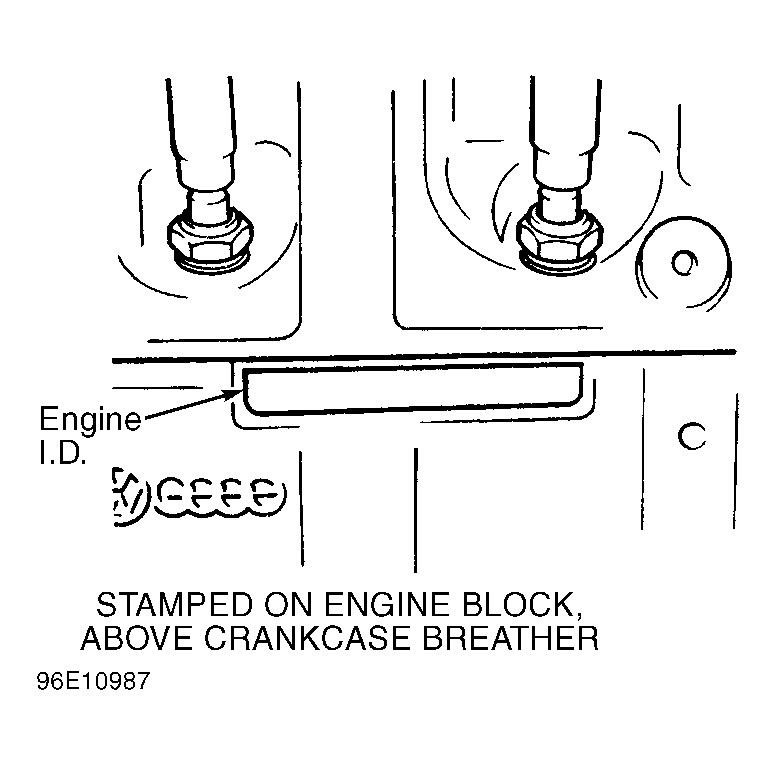

Fig 3: Locating Engine Identification Codes (2.8L VR6)
Courtesy of VOLKSWAGEN UNITED STATES, INC.
