Bench Testing: Brushes

Remove voltage regulator from back of generator. See VOLTAGE REGULATOR  under REMOVAL & INSTALLATION. Ensure brushes are longer than 0.20" (5 mm). If necessary, install new brushes. DO NOT allow solder to run into strands of brush leads. See Fig 1 and Fig 2 .

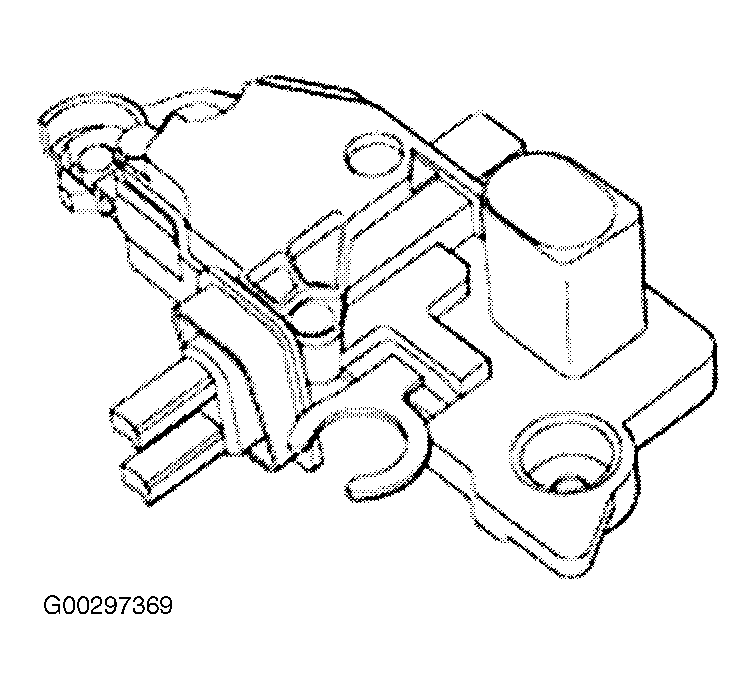

Fig 1: Checking Generator Brushes (Models Up To April 1999)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

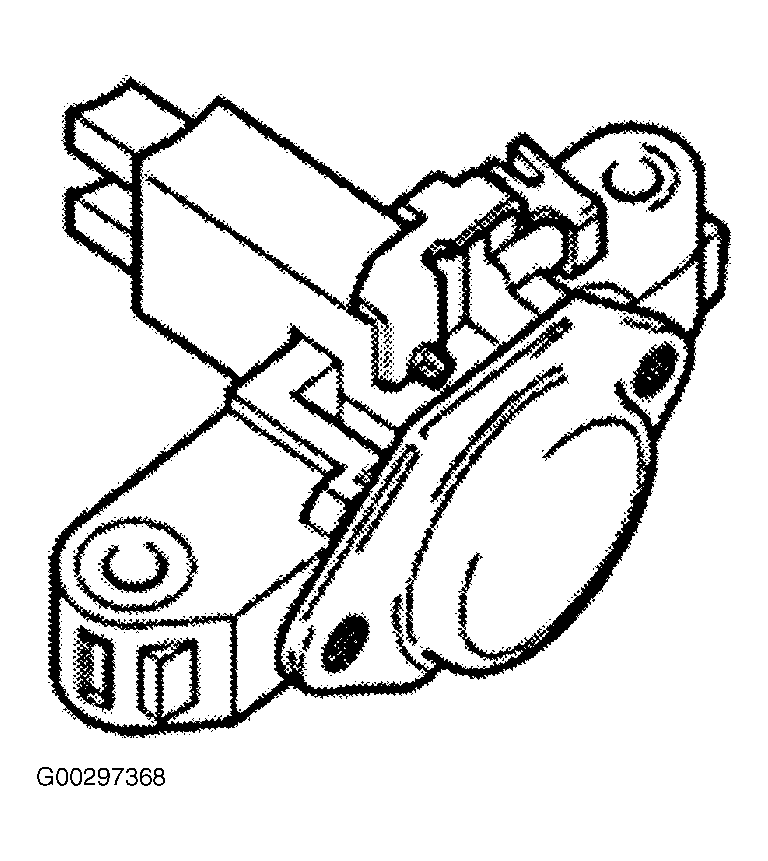

Fig 2: Checking Brushes (Models From May 1999 & On)

Courtesy of VOLKSWAGEN UNITED STATES, INC.
