Firing Order

FIRING ORDER

Application Firing Order
EuroVan (1) 1-5-3-6-2-4
(1) System uses a Distributorless Ignition System (DIS) with one ignition coil assembly. See Fig 1 .

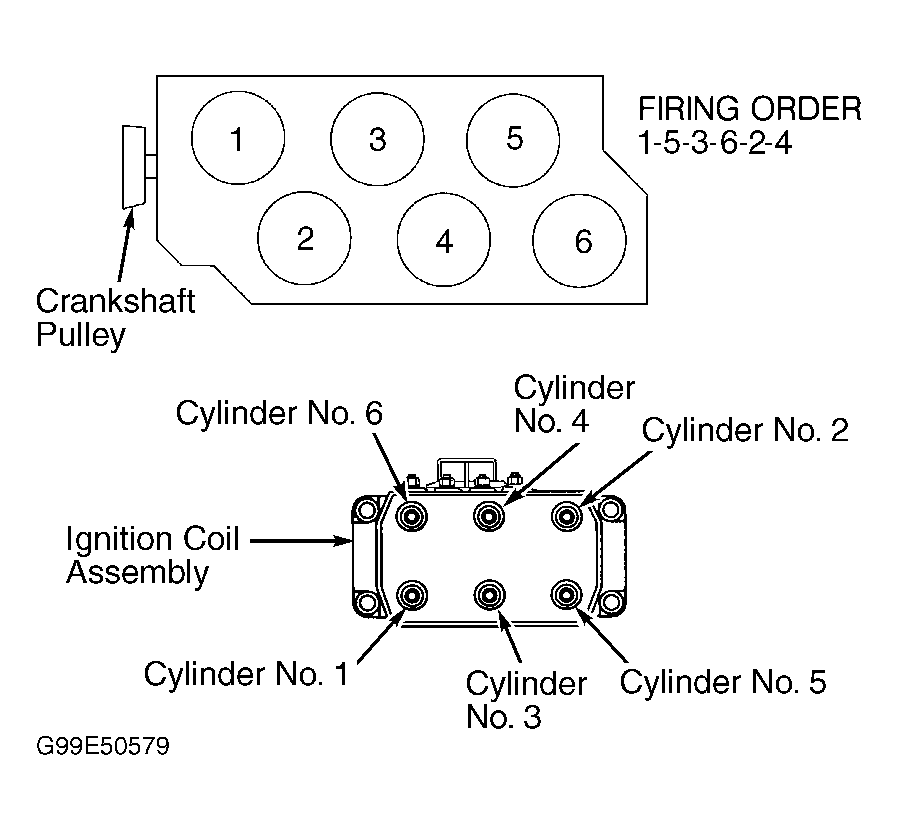

Fig 1: Identifying Cylinder Numbers & Firing Order (EuroVan With Engine Code AFP)
G99E50579Courtesy of VOLKSWAGEN UNITED STATES, INC.
