Identifying Fuel EVAP Components

Fuel evaporative (EVAP) systems will set DTCs, for most models EVAP DTCs range in low to mid P0440s and P1470s. See appropriate SELF DIAGNOSTICS article for diagnoses. For EVAP component locations.

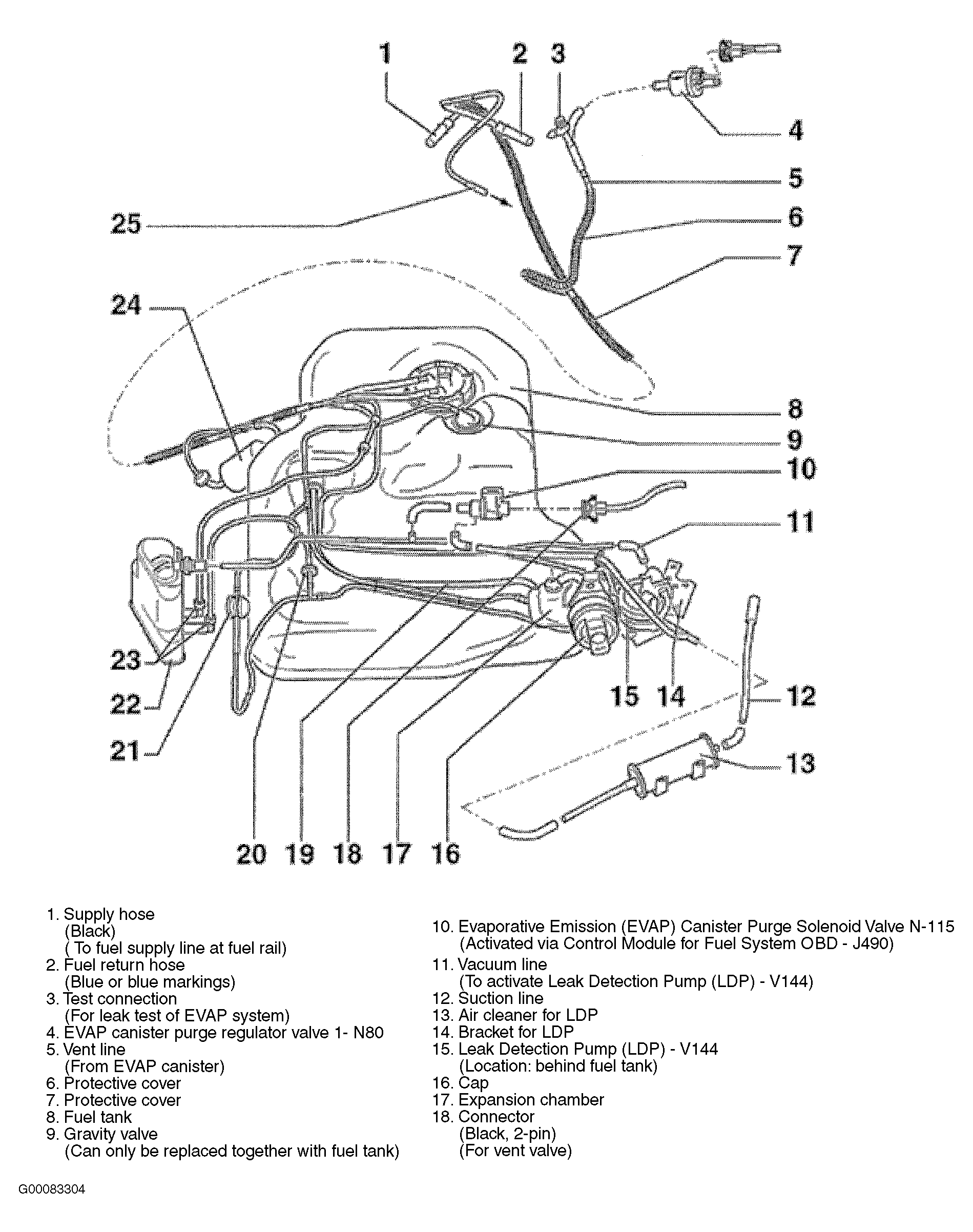

Fig 1: Locating EVAP Components (EuroVan 2.8L VR6 2V - AES)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

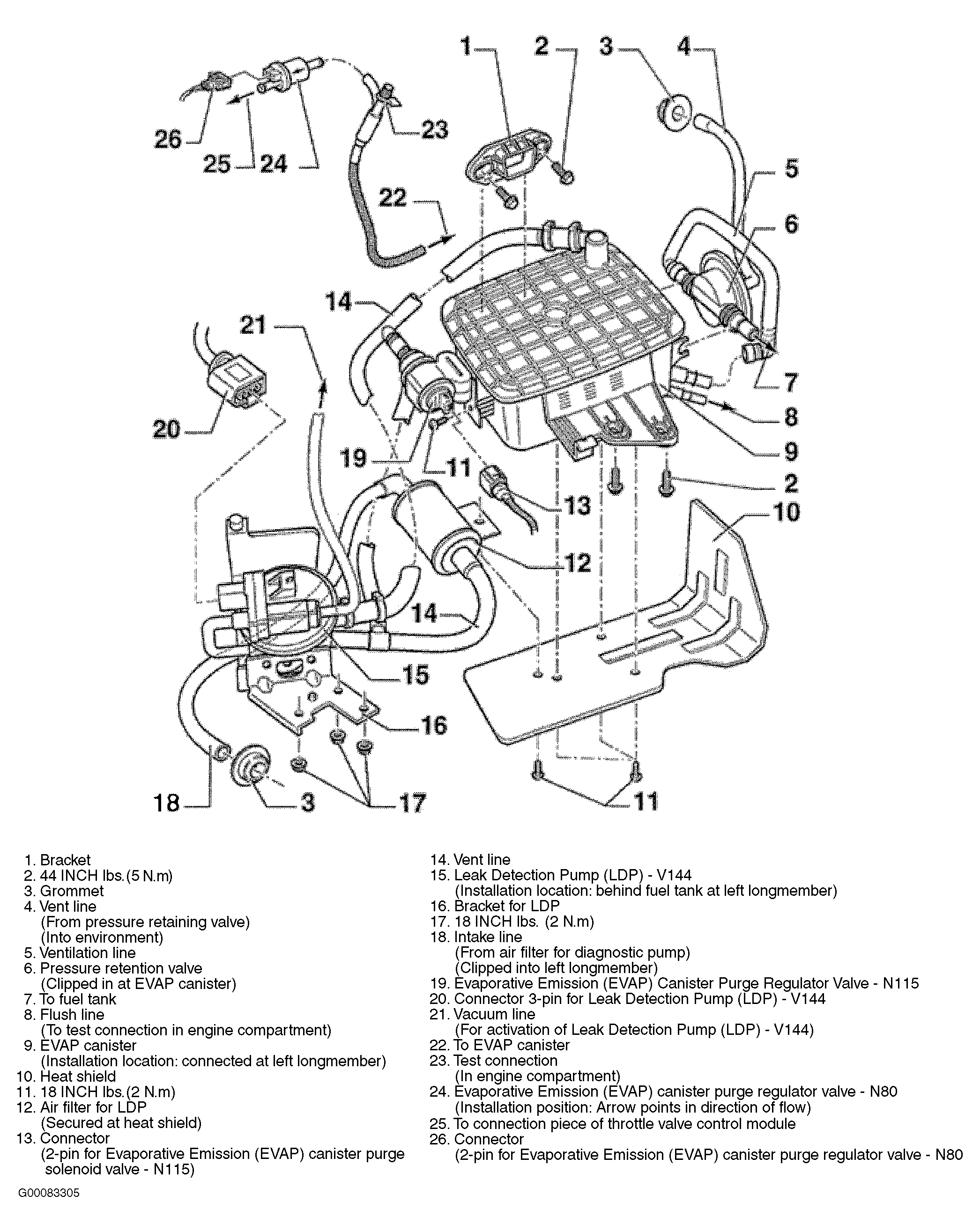

Fig 2: Locating EVAP Components (EuroVan 2.8L VR6 4V - AXK)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

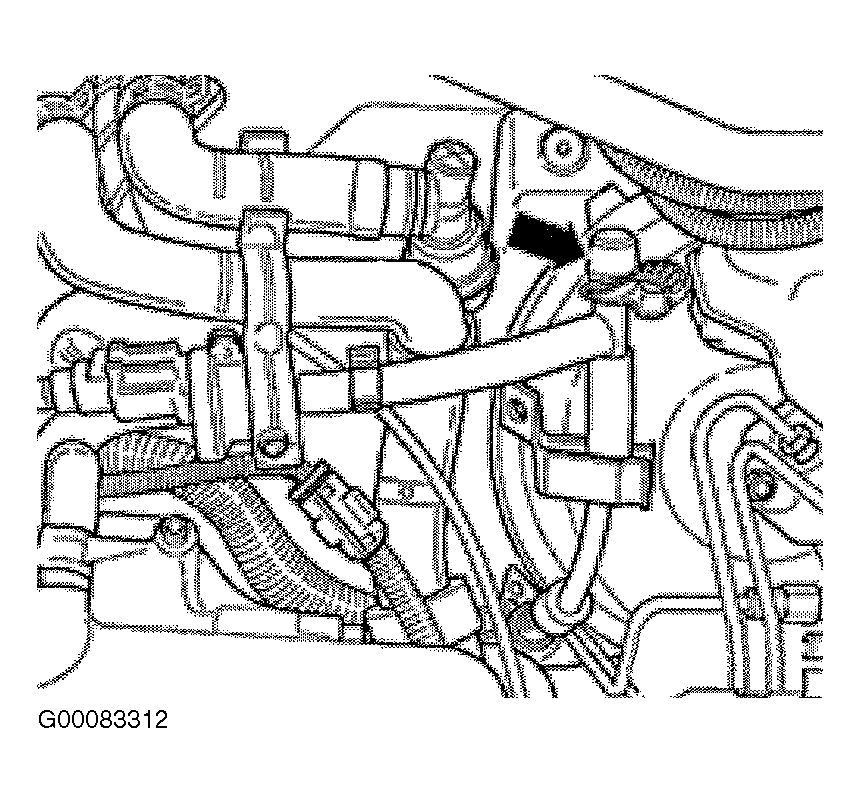

Fig 3: Locating EVAP Test Connector (EuroVan 2.8L VR6 2V- AES)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

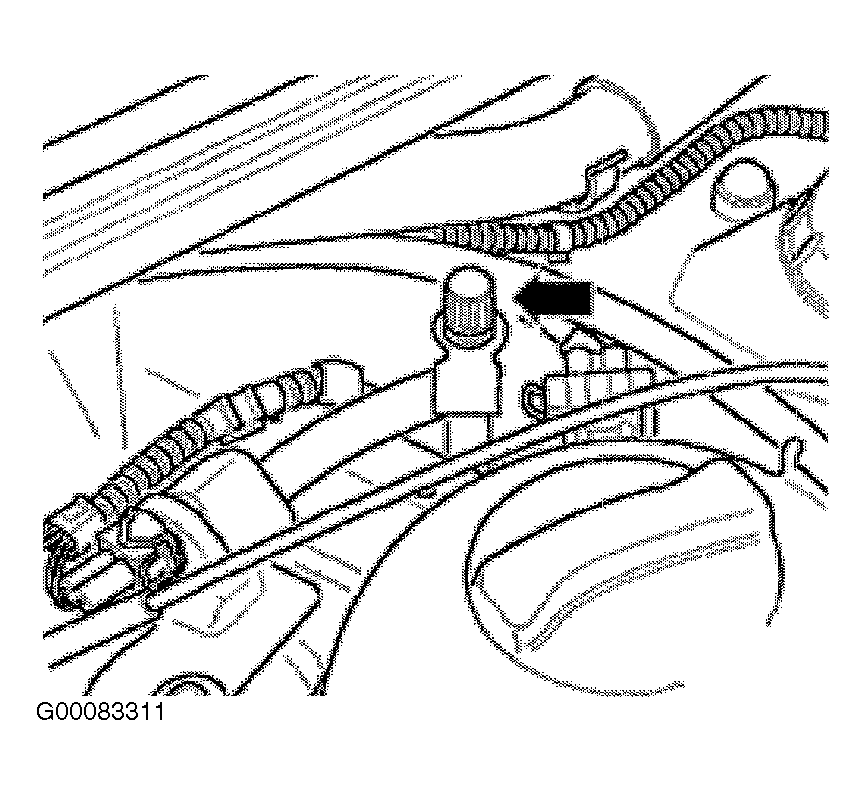

Fig 4: Locating EVAP Test Connector (EuroVan 2.8L VR6 4V- AXK)

Courtesy of VOLKSWAGEN UNITED STATES, INC.
