ATF Pump, Disassembling And Assembling: Notes

Replacement ATF pump parts and the ATF pump are allocated according to transmission code.

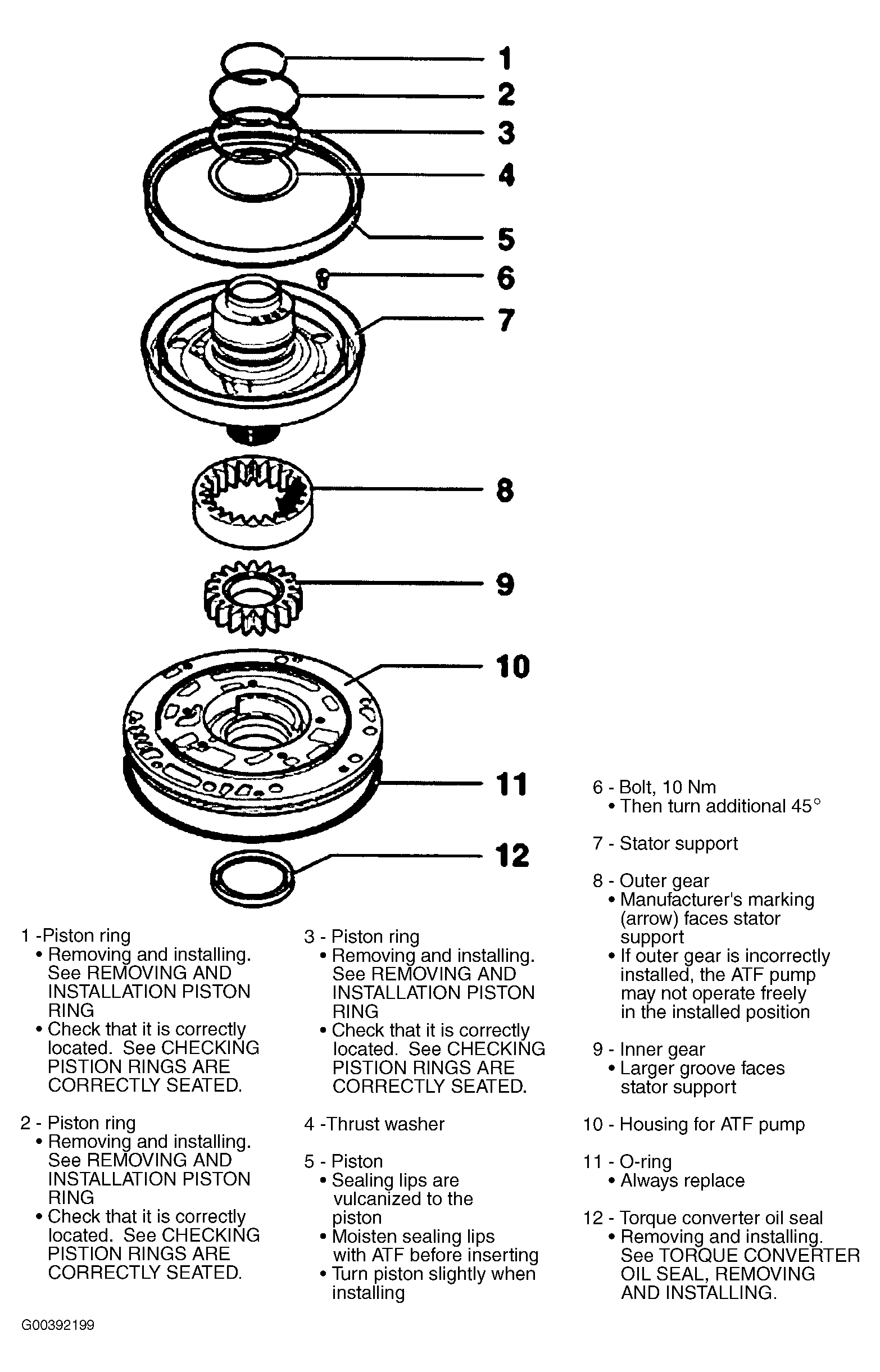

Fig 1: Overview Of ATF Pump Disassembly & Assembly

Courtesy of VOLKSWAGEN UNITED STATES, INC.
