Code Letters, Transmission Allocation, Ratios, Equipment

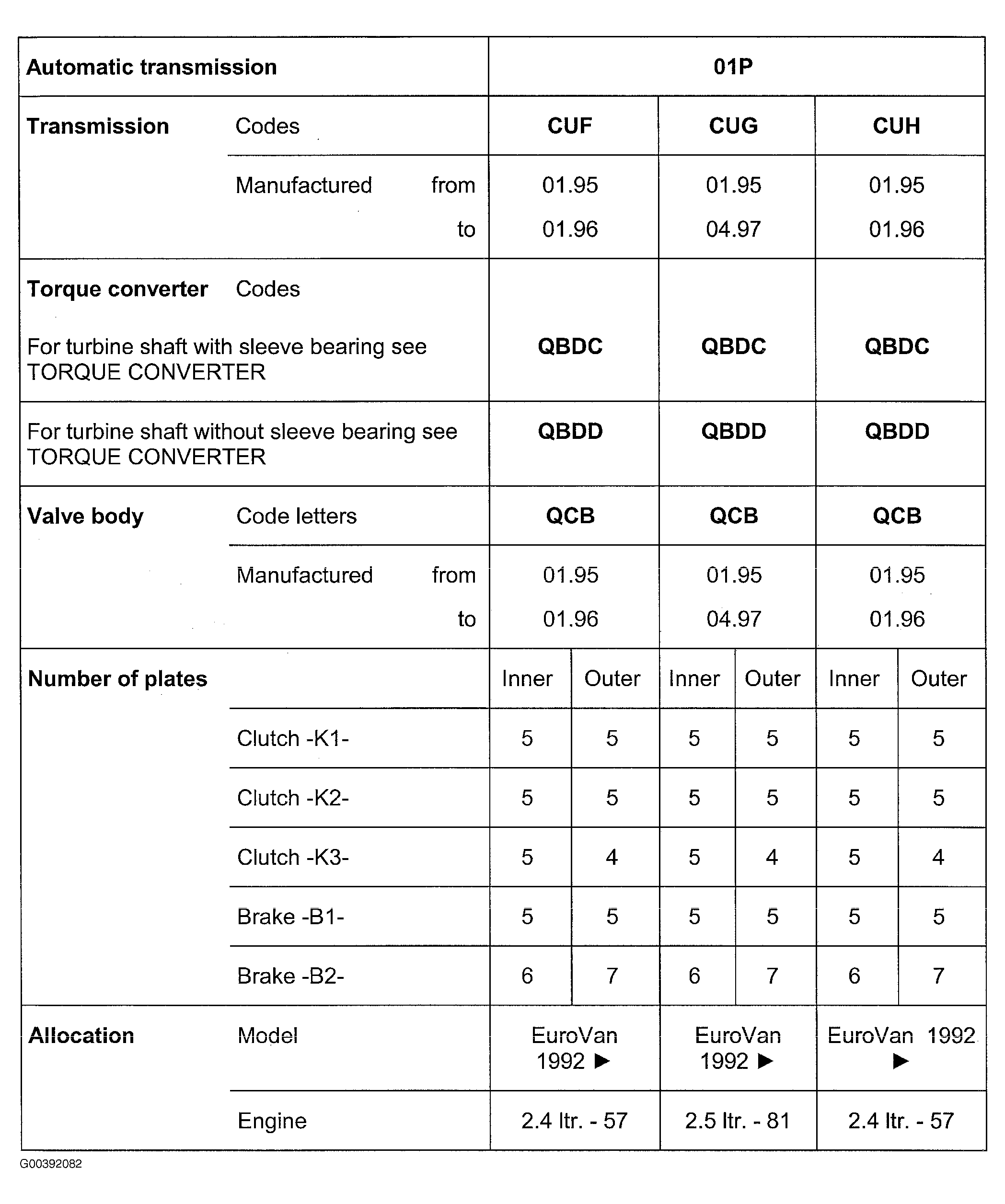

Fig 1: Identifying Transmission Codes CUF, CUG & CUH (1 Of 2)

G00392082

Courtesy of VOLKSWAGEN UNITED STATES, INC.

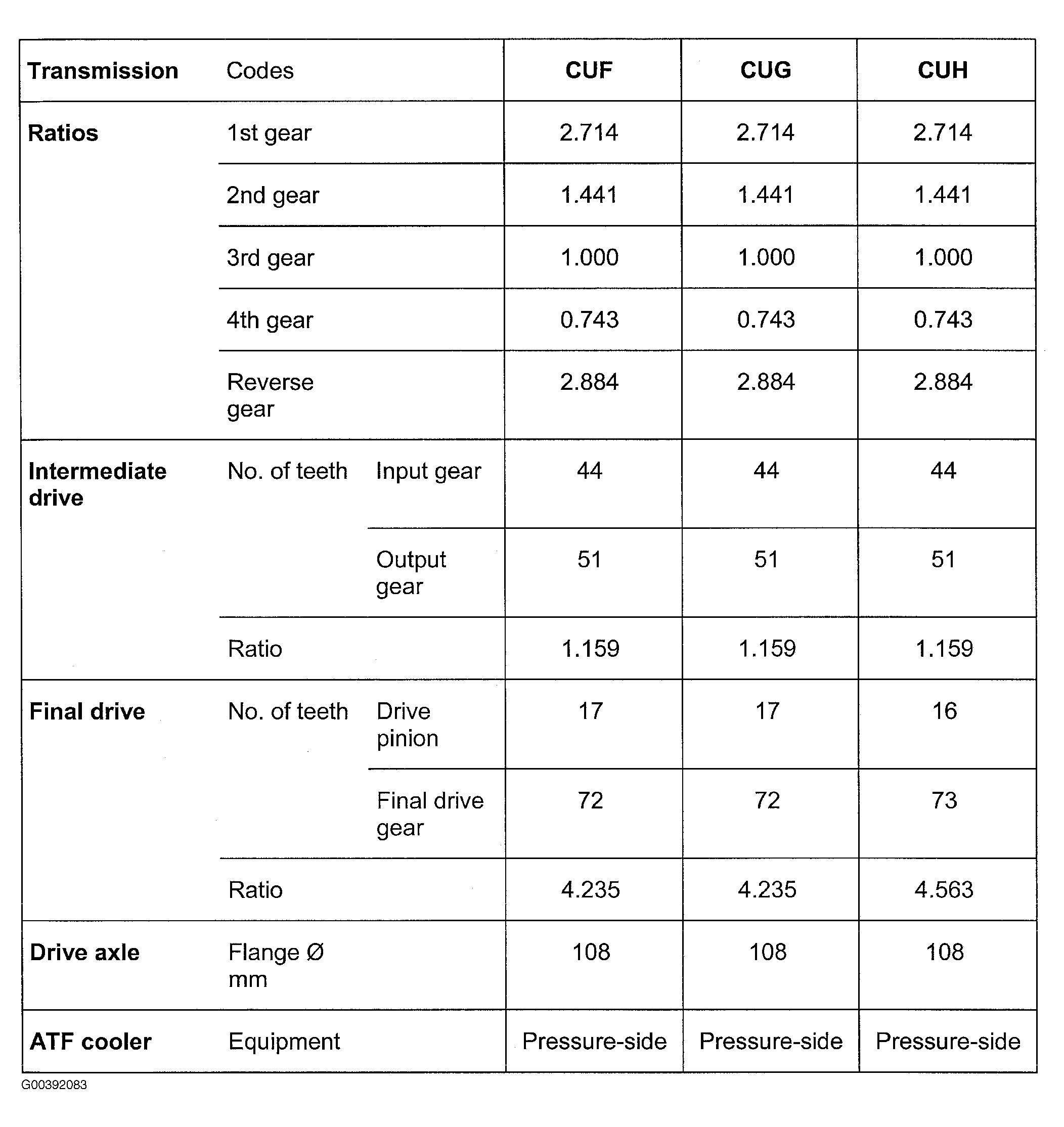

Fig 2: Identifying Transmission Codes CUF, CUG & CUH (2 Of 2)

G00392083

Courtesy of VOLKSWAGEN UNITED STATES, INC.

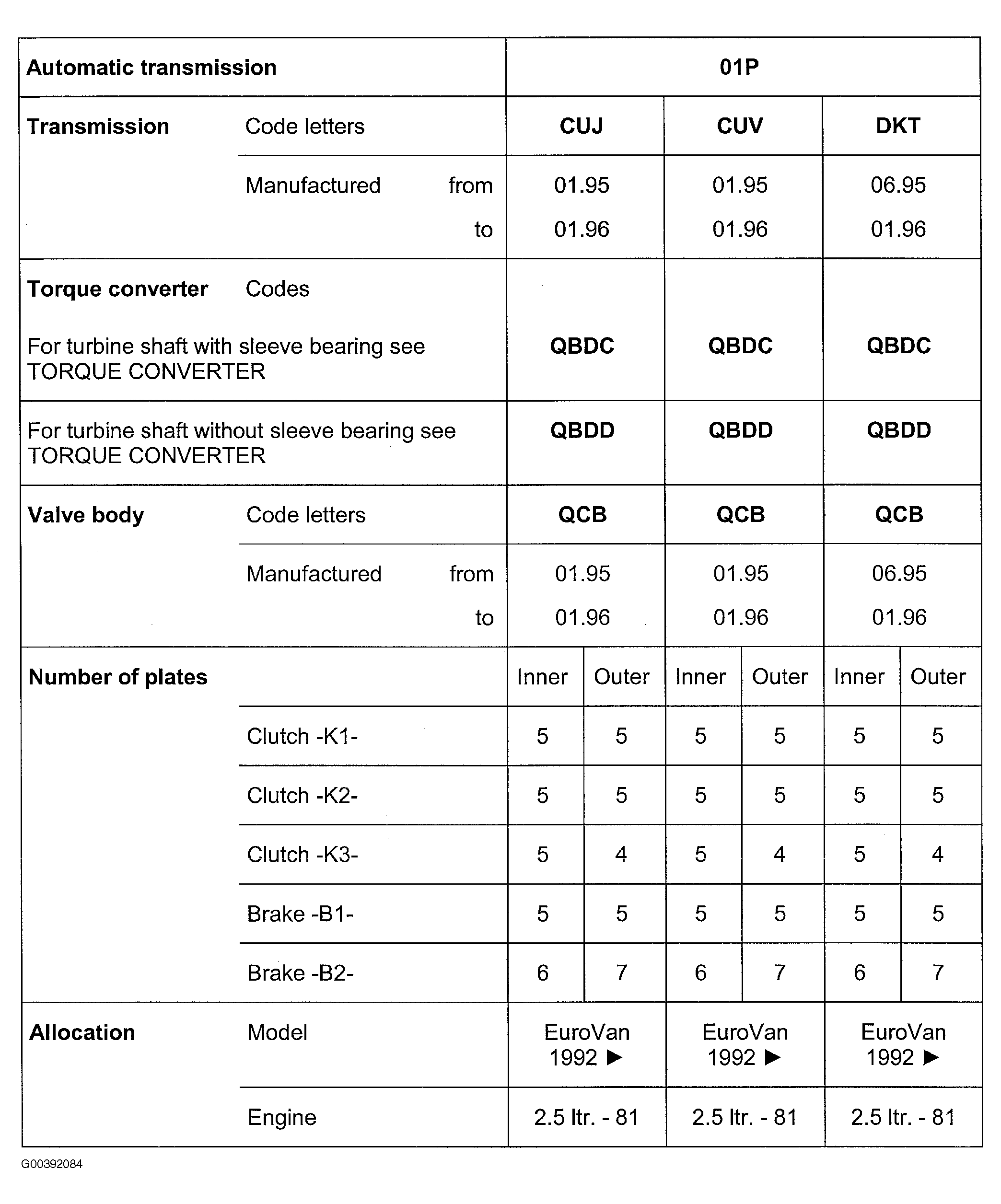

Fig 3: Identifying Transmission Codes CUJ, CUV & DKT (1 Of 2)

G00392084

Courtesy of VOLKSWAGEN UNITED STATES, INC.

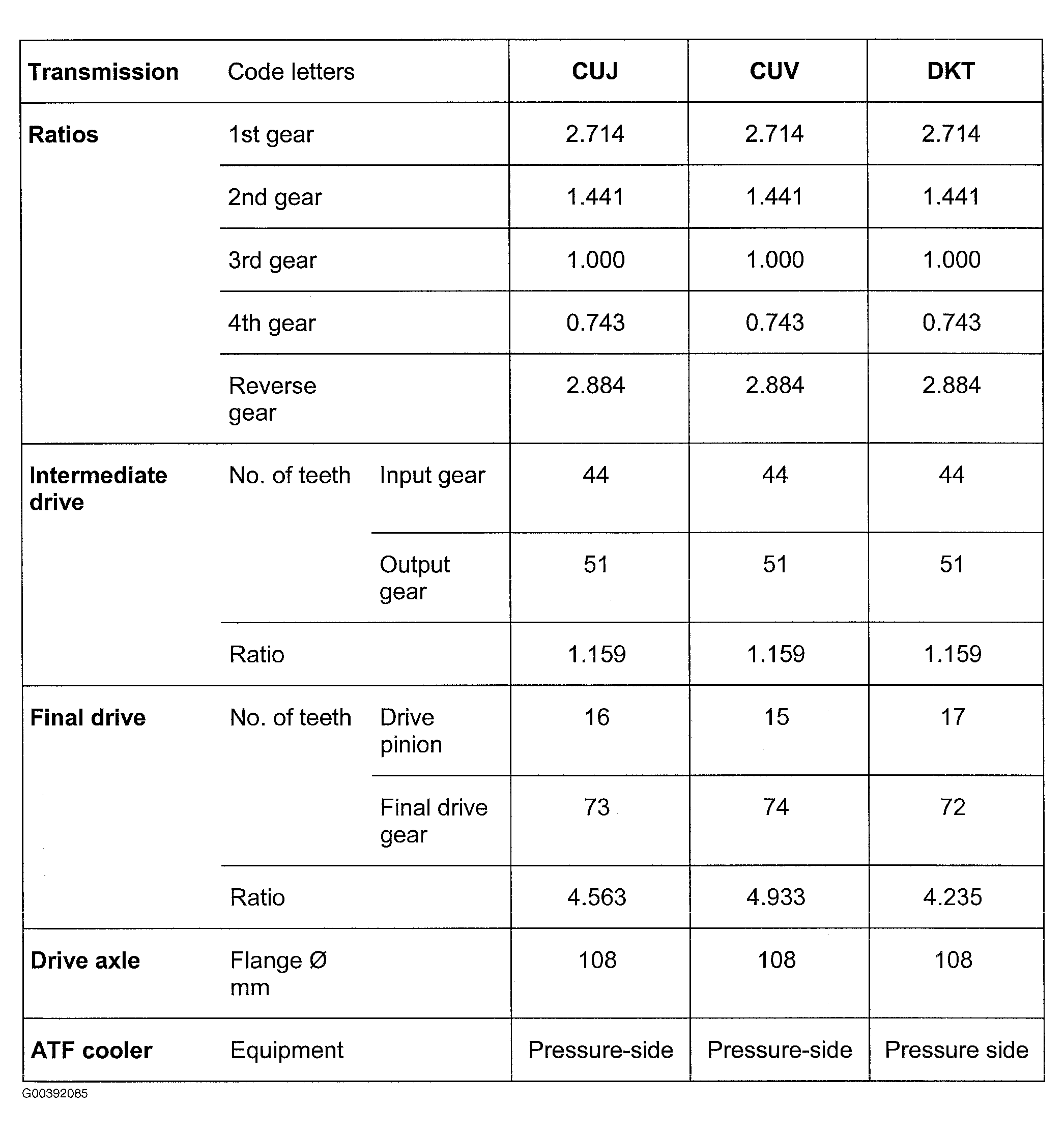

Fig 4: Identifying Transmission Codes CUJ, CUV & DKT (2 Of 2)

G00392085

Courtesy of VOLKSWAGEN UNITED STATES, INC.

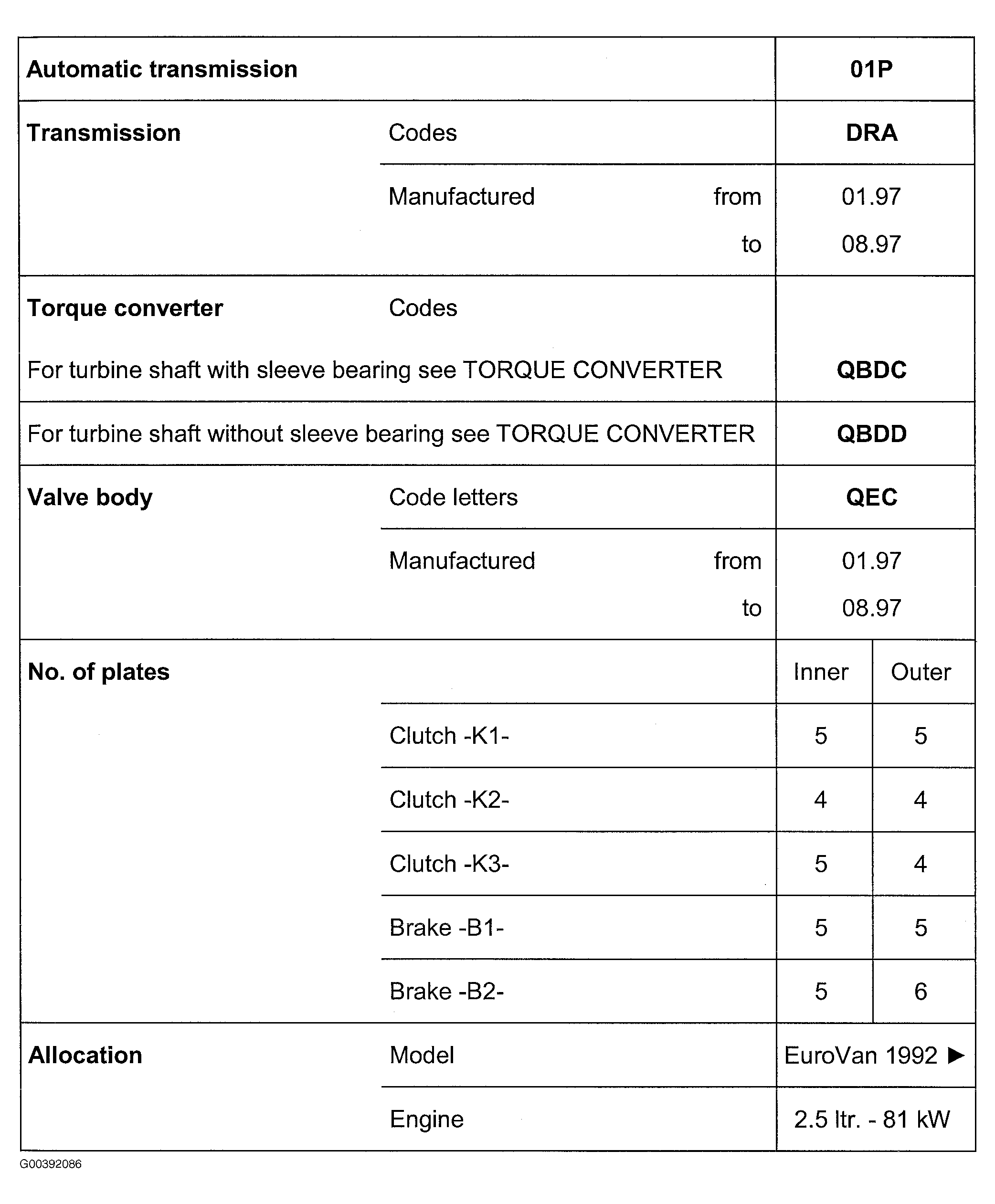

Fig 5: Identifying Transmission Code DRA (1 Of 2)

G00392086

Courtesy of VOLKSWAGEN UNITED STATES, INC.

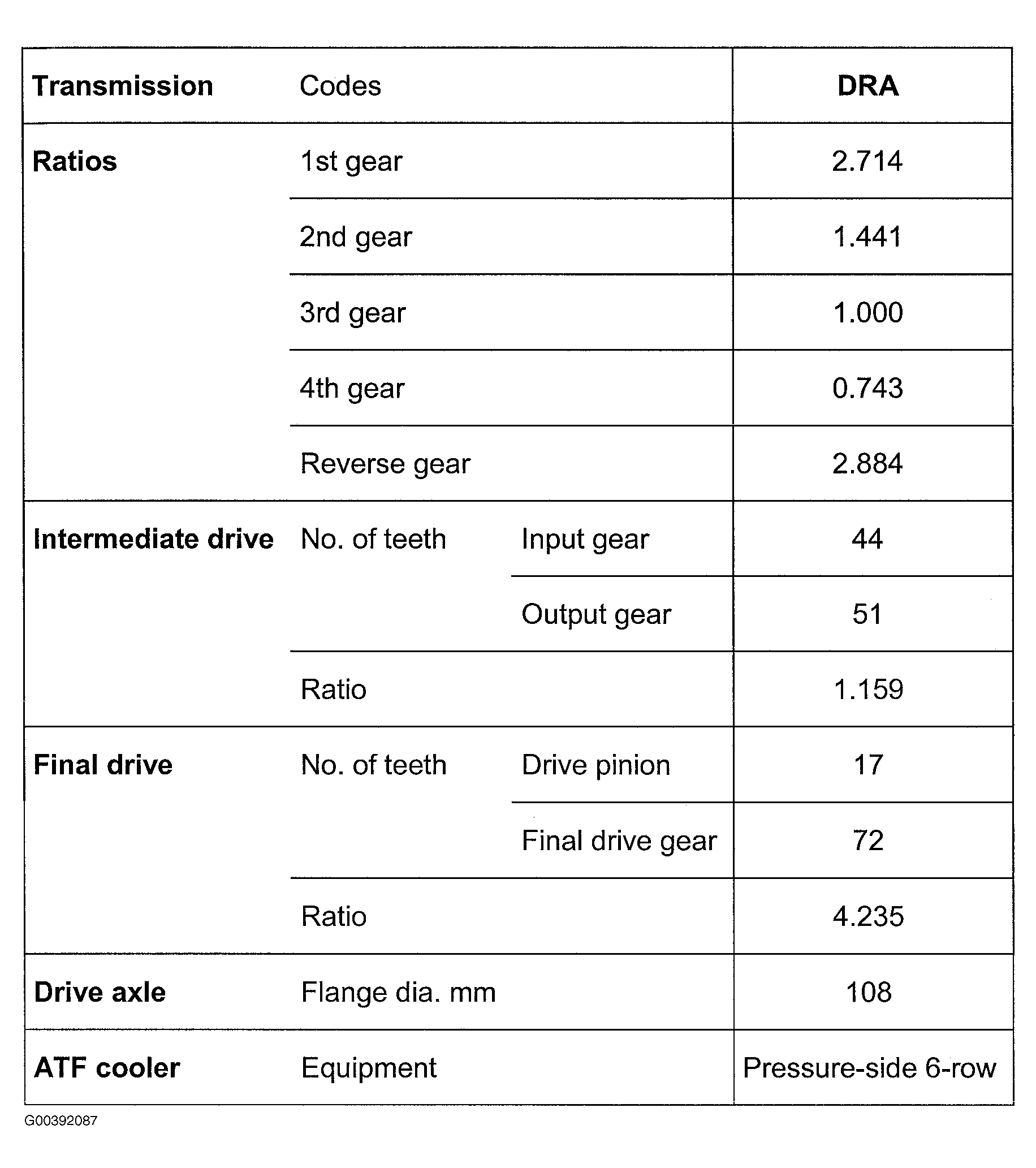

Fig 6: Identifying Transmission Code DRA (2 Of 2)

G00392087

Courtesy of VOLKSWAGEN UNITED STATES, INC.

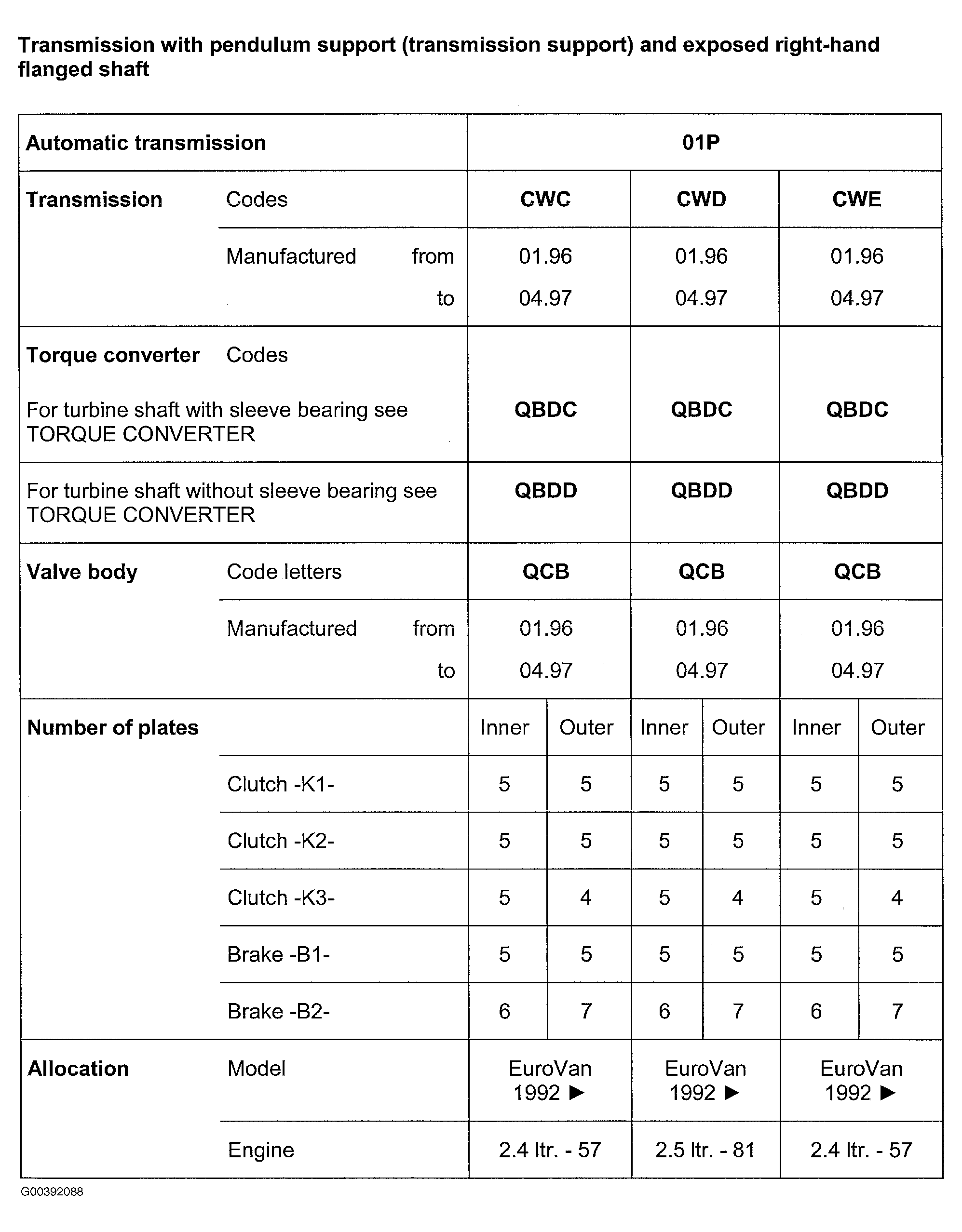

Fig 7: Identifying Transmission Codes CWC, CWD & CWE (1 Of 2)

G00392088

Courtesy of VOLKSWAGEN UNITED STATES, INC.

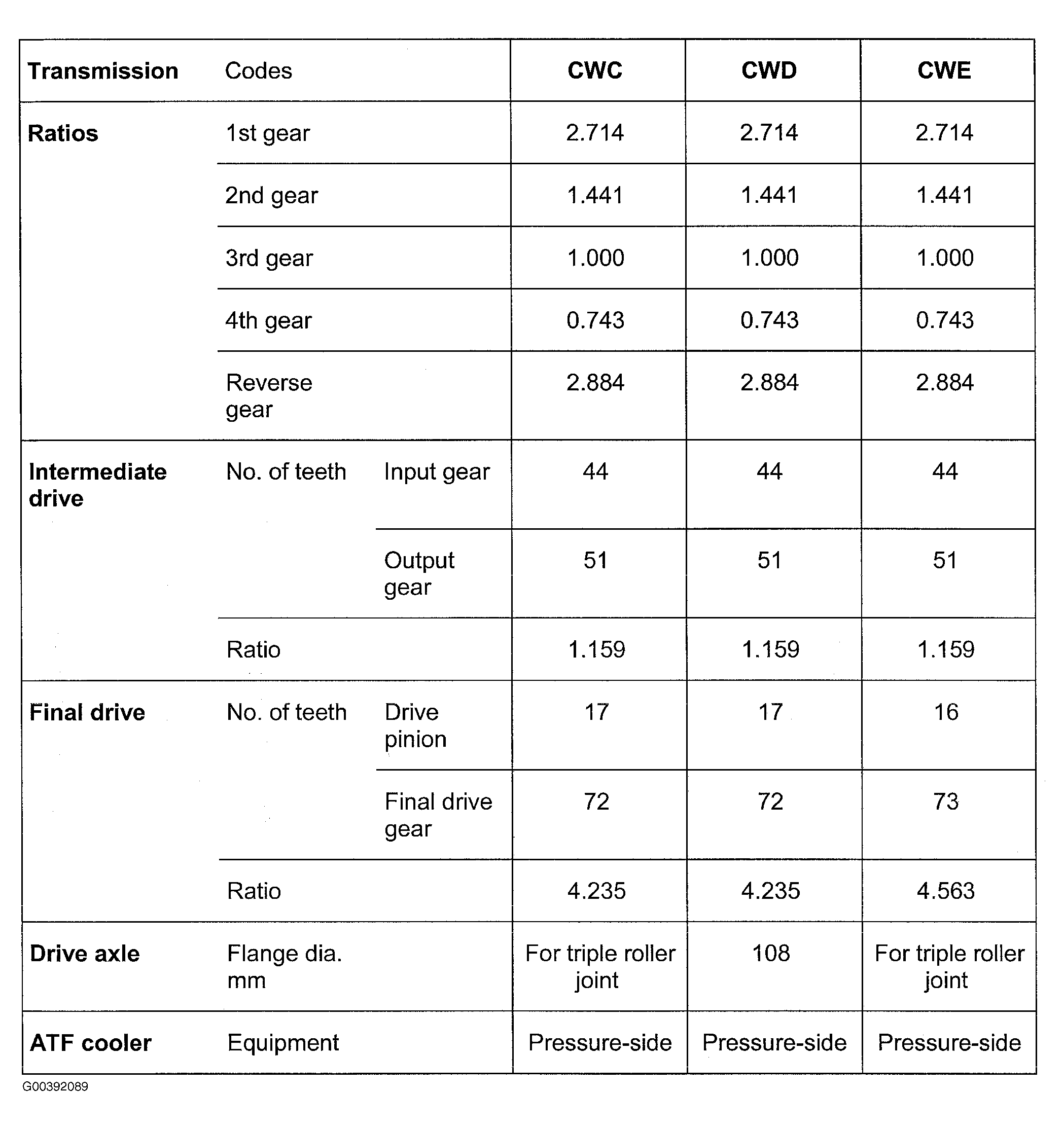

Fig 8: Identifying Transmission Codes CWC, CWD & CWE (2 Of 2)

G00392089

Courtesy of VOLKSWAGEN UNITED STATES, INC.

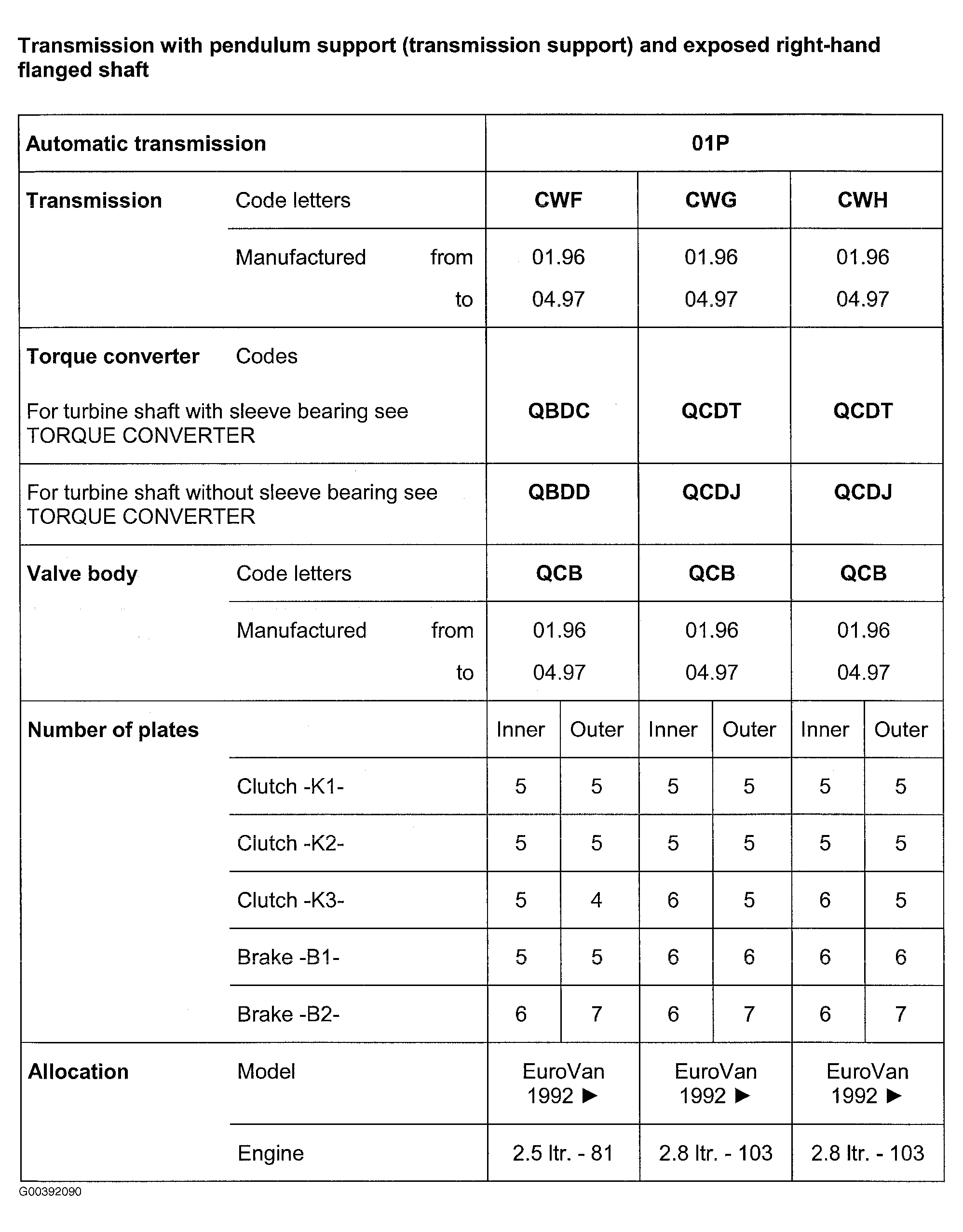

Fig 9: Identifying Transmission Codes CWF, CWG & CWH (1 Of 2)

G00392090

Courtesy of VOLKSWAGEN UNITED STATES, INC.

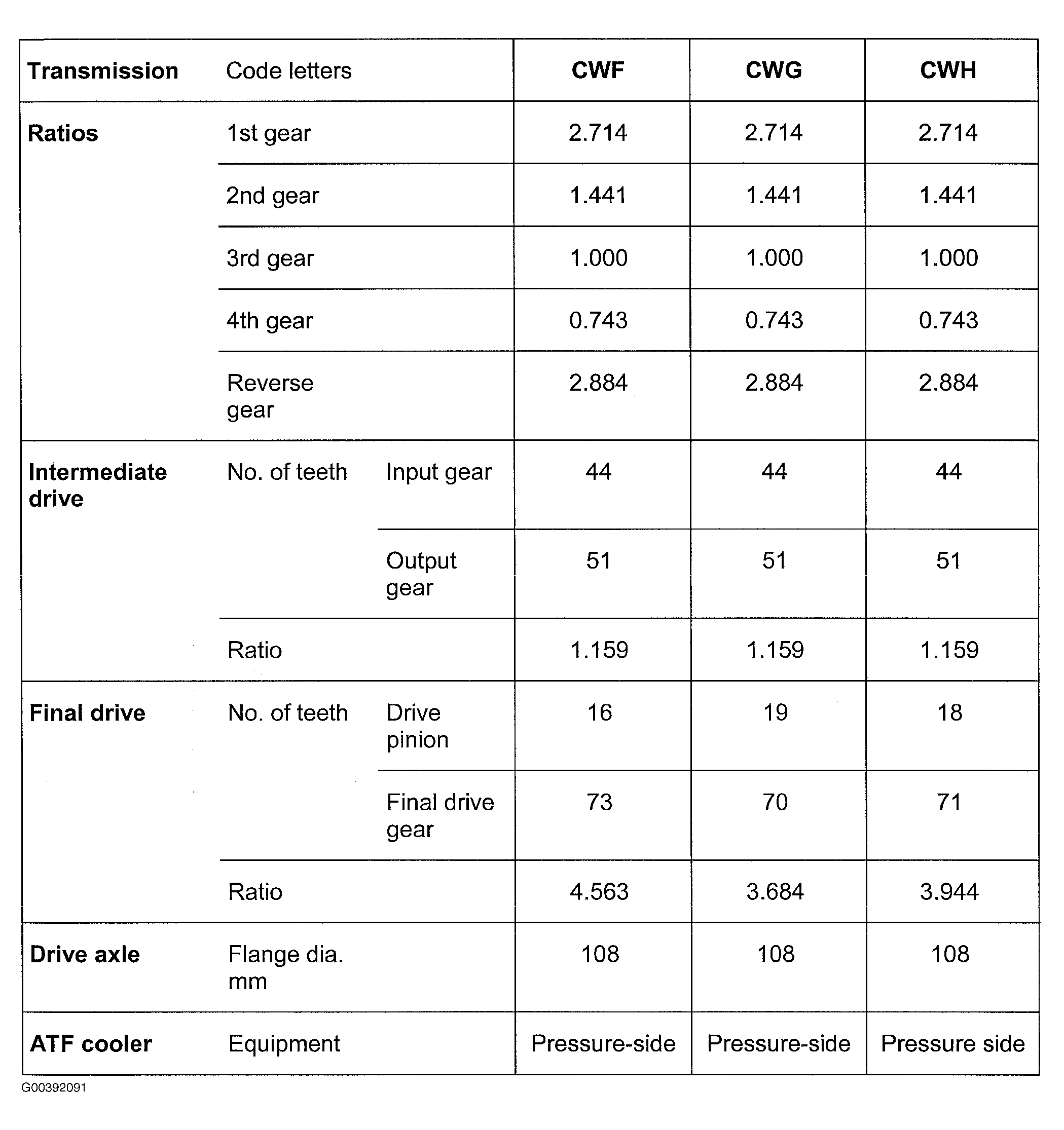

Fig 10: Identifying Transmission Codes CWF, CWG & CWH (2 Of 2)

G00392091

Courtesy of VOLKSWAGEN UNITED STATES, INC.

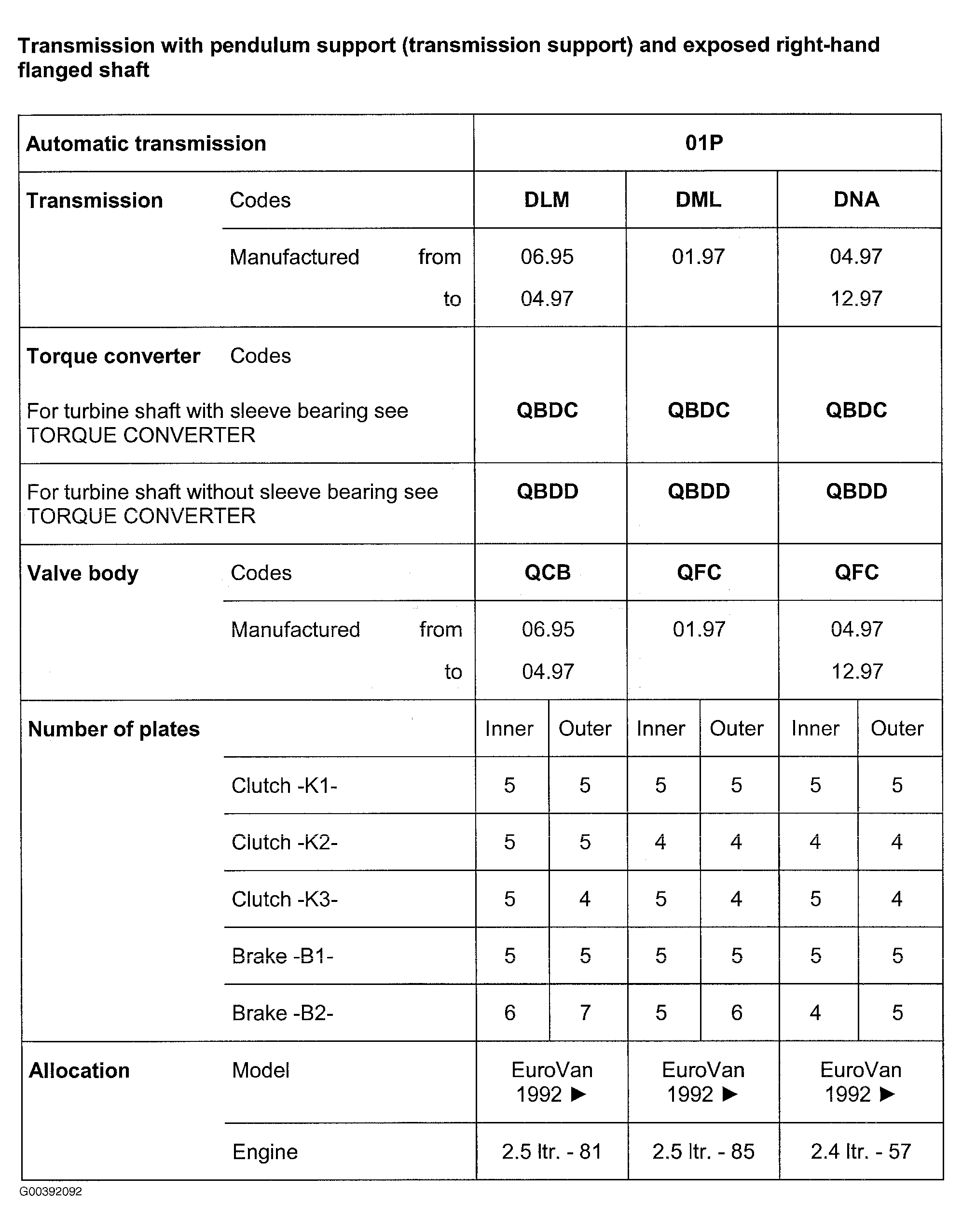

Fig 11: Identifying Transmission Codes DLM, DML & DNA (1 Of 2)

G00392092

Courtesy of VOLKSWAGEN UNITED STATES, INC.

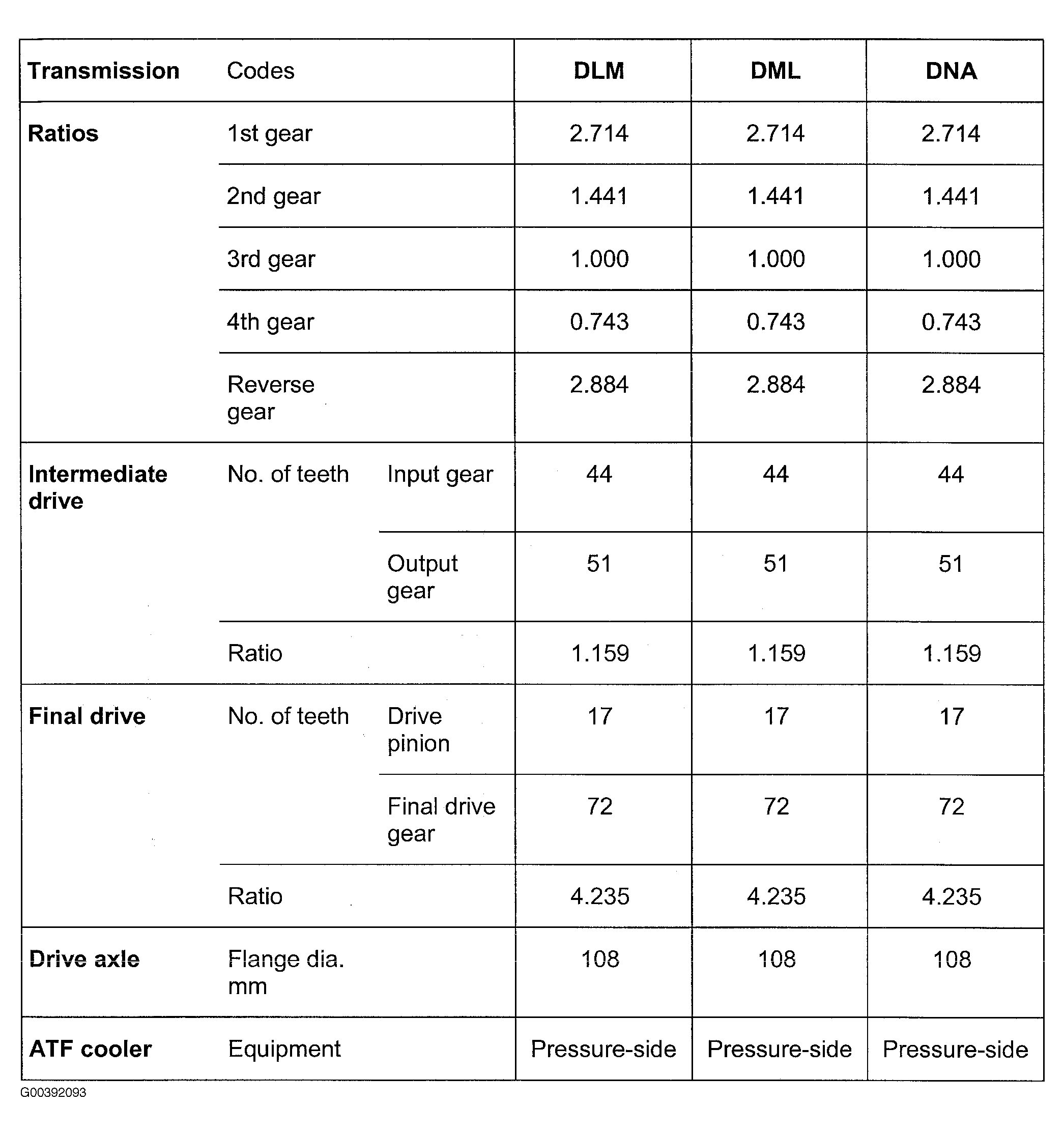

Fig 12: Identifying Transmission Codes DLM, DML & DNA (2 Of 2)

G00392093

Courtesy of VOLKSWAGEN UNITED STATES, INC.

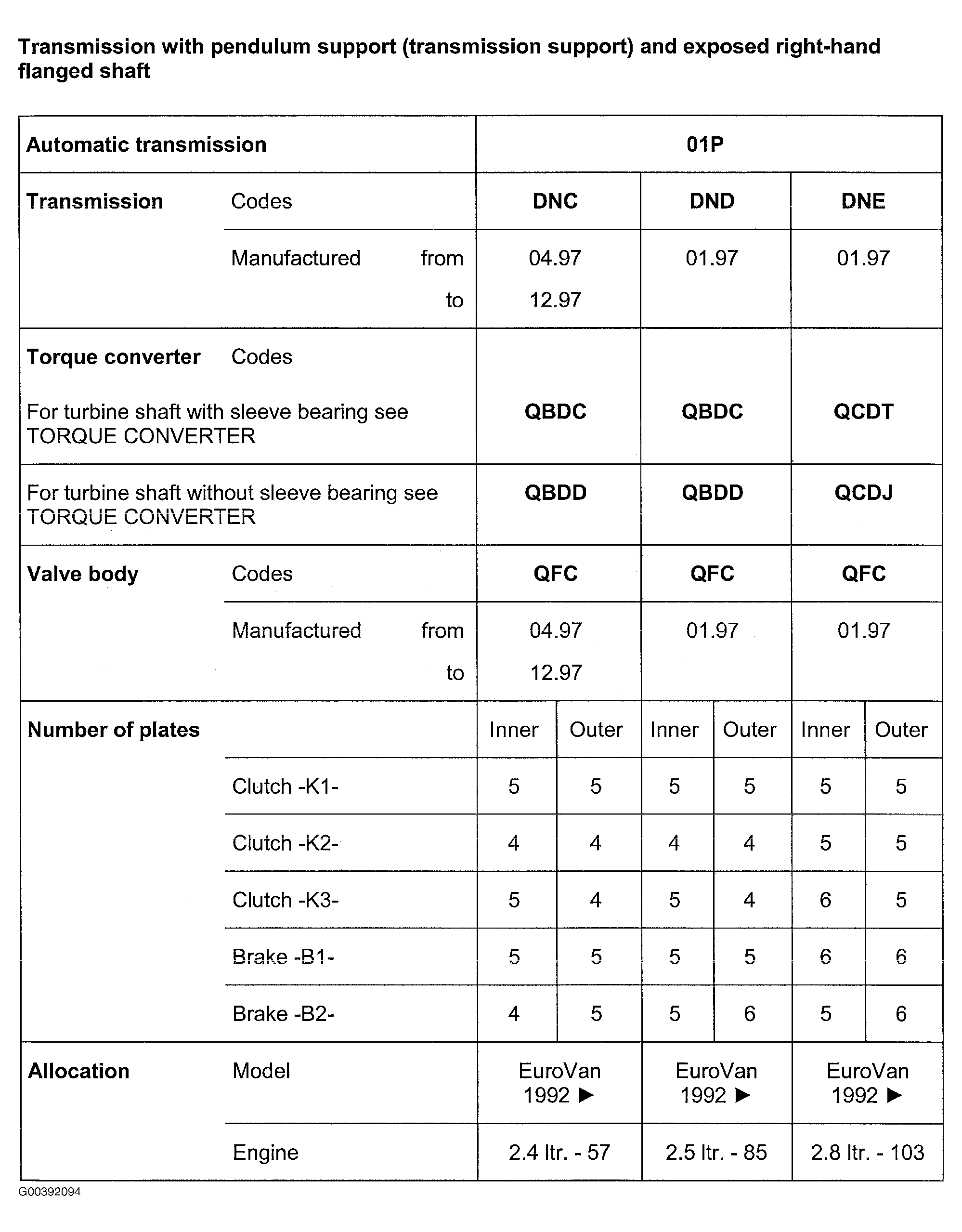

Fig 13: Identifying Transmission Codes DNC, DND & DNE (1 Of 2)

G00392094

Courtesy of VOLKSWAGEN UNITED STATES, INC.

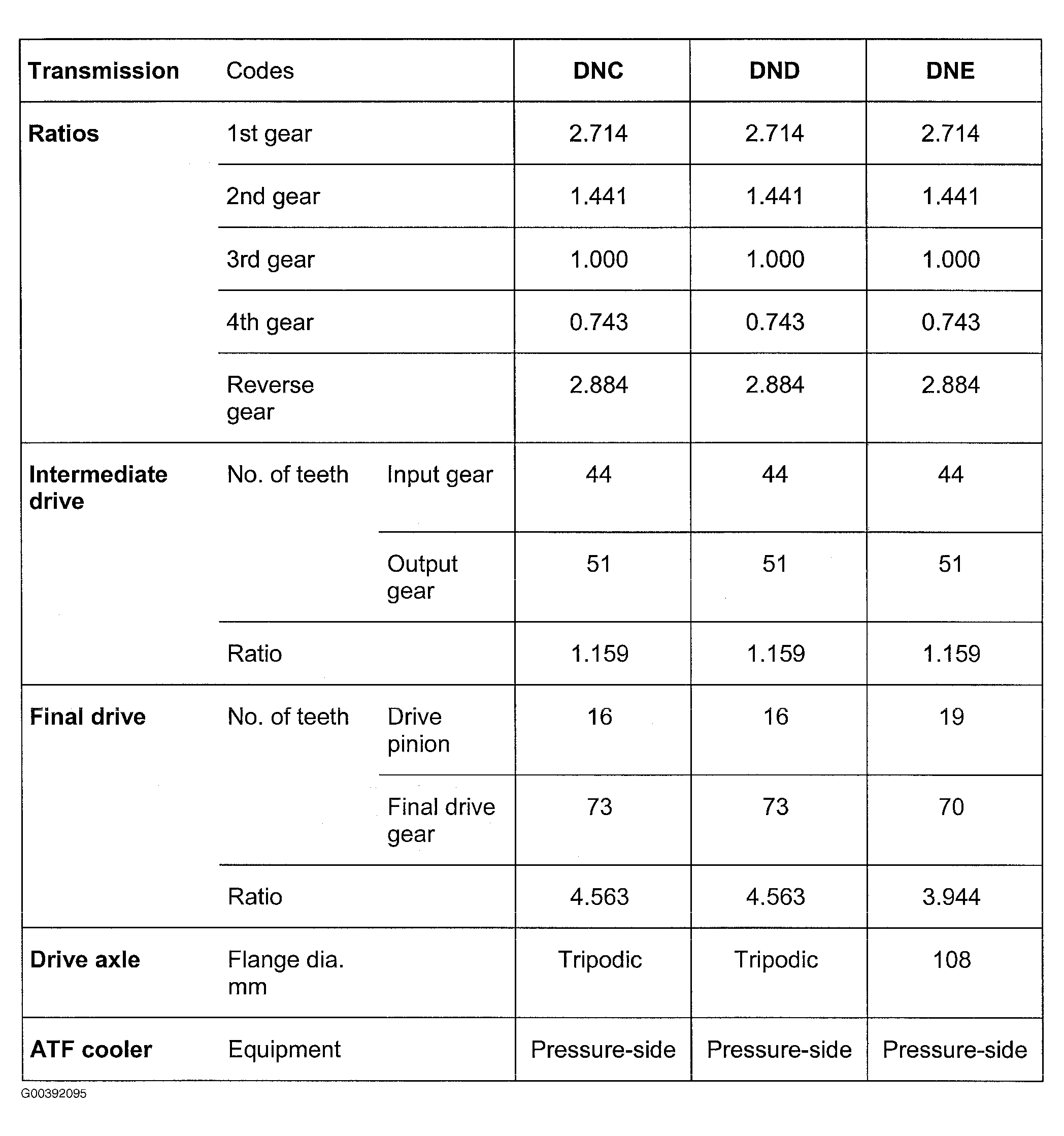

Fig 14: Identifying Transmission Codes DNC, DND & DNE (2 Of 2)

G00392095

Courtesy of VOLKSWAGEN UNITED STATES, INC.

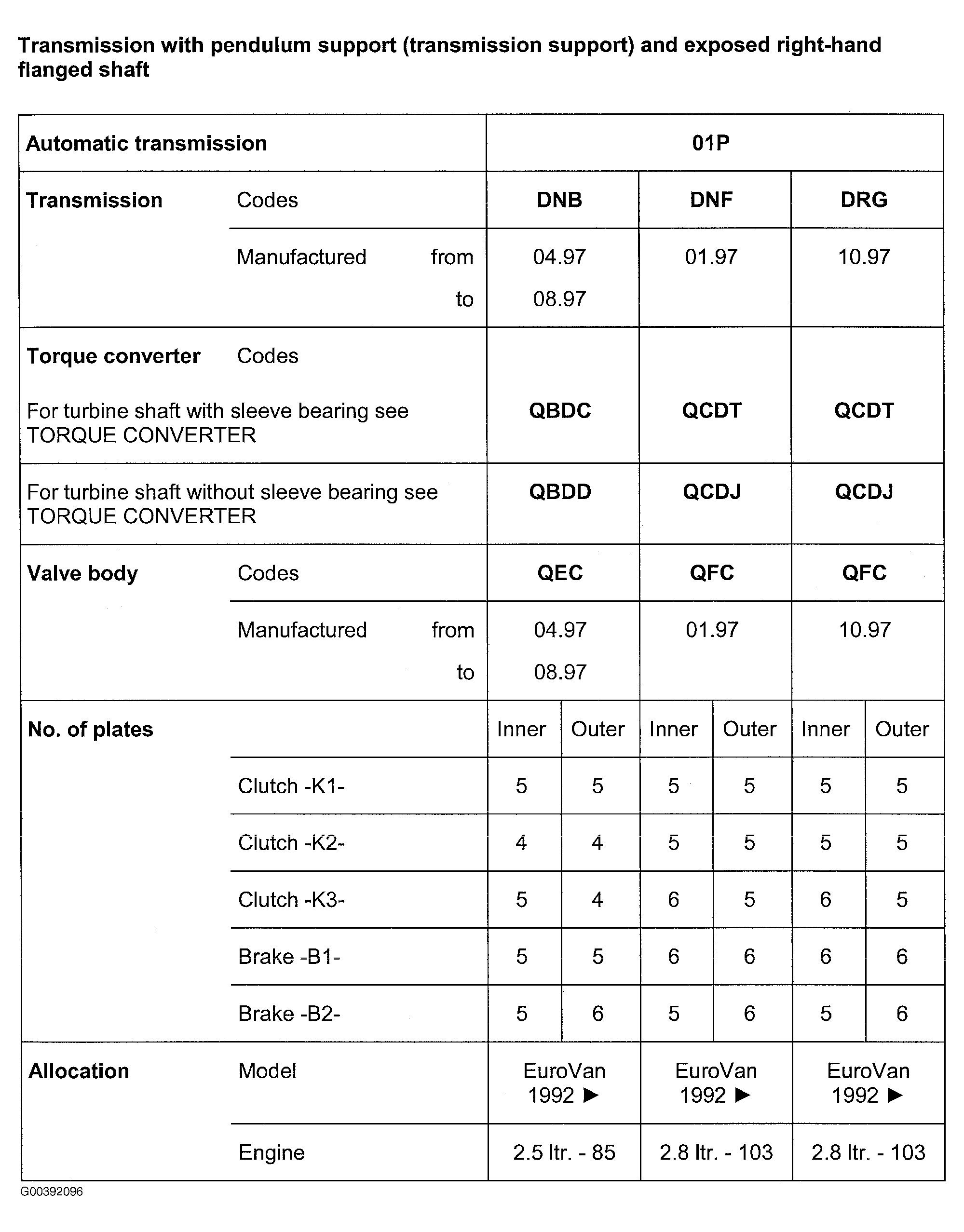

Fig 15: Identifying Transmission Codes DNB, DNF & DRG (1 Of 2)

G00392096

Courtesy of VOLKSWAGEN UNITED STATES, INC.

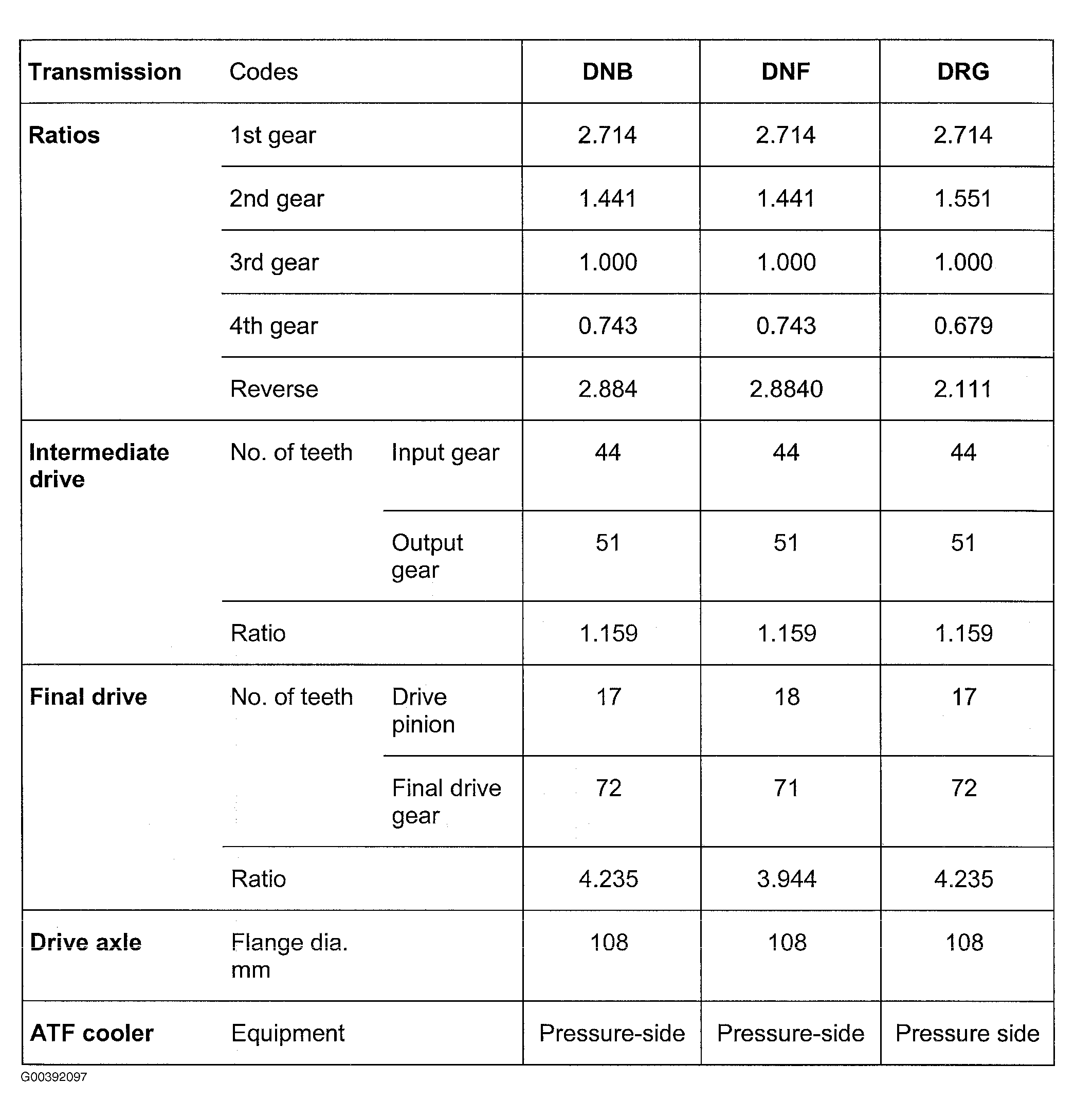

Fig 16: Identifying Transmission Codes DNB, DNF & DRG (2 Of 2)

G00392097

Courtesy of VOLKSWAGEN UNITED STATES, INC.

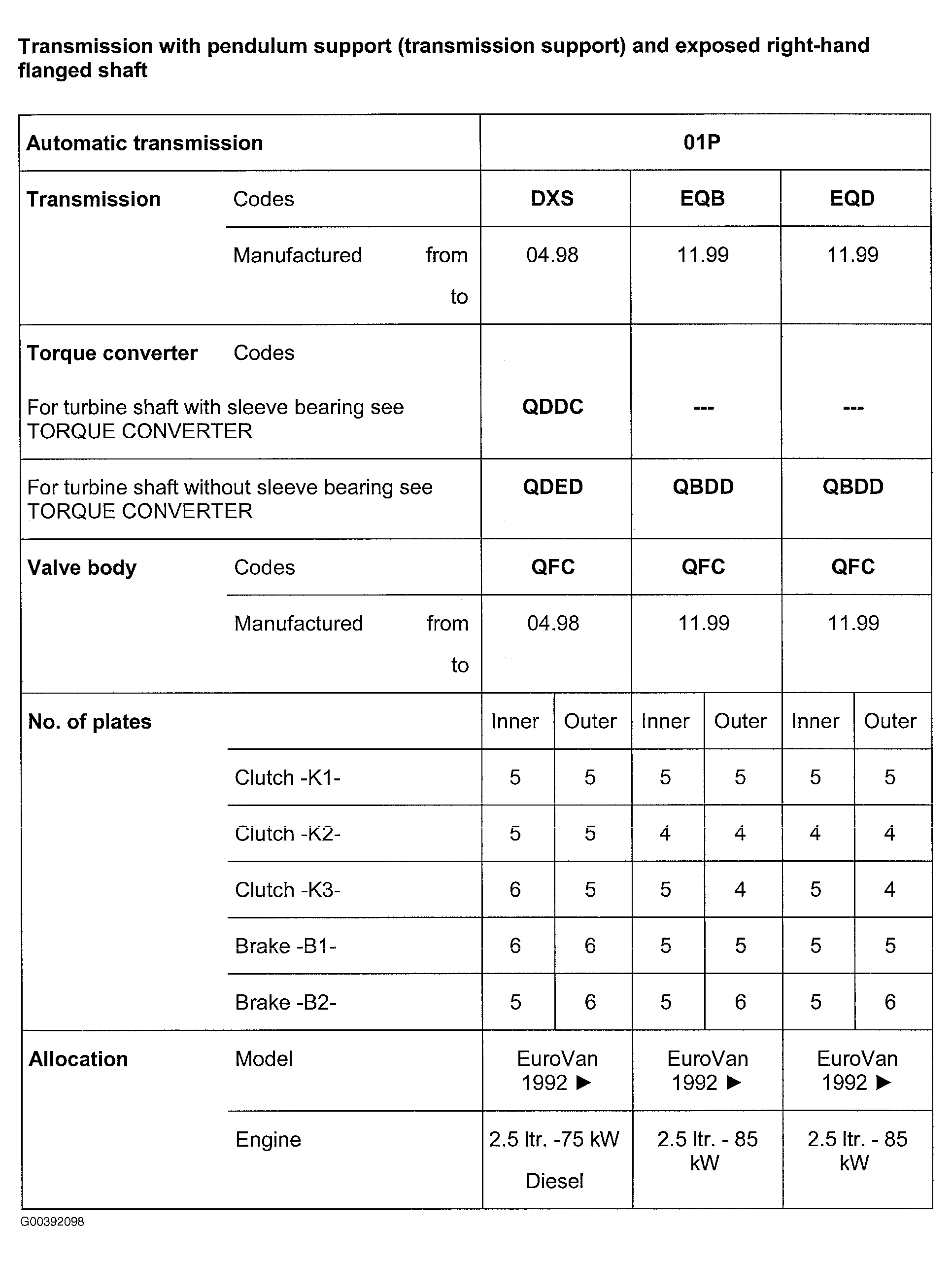

Fig 17: Identifying Transmission Codes DXS, EQB & EQD (1 Of 2)

G00392098

Courtesy of VOLKSWAGEN UNITED STATES, INC.

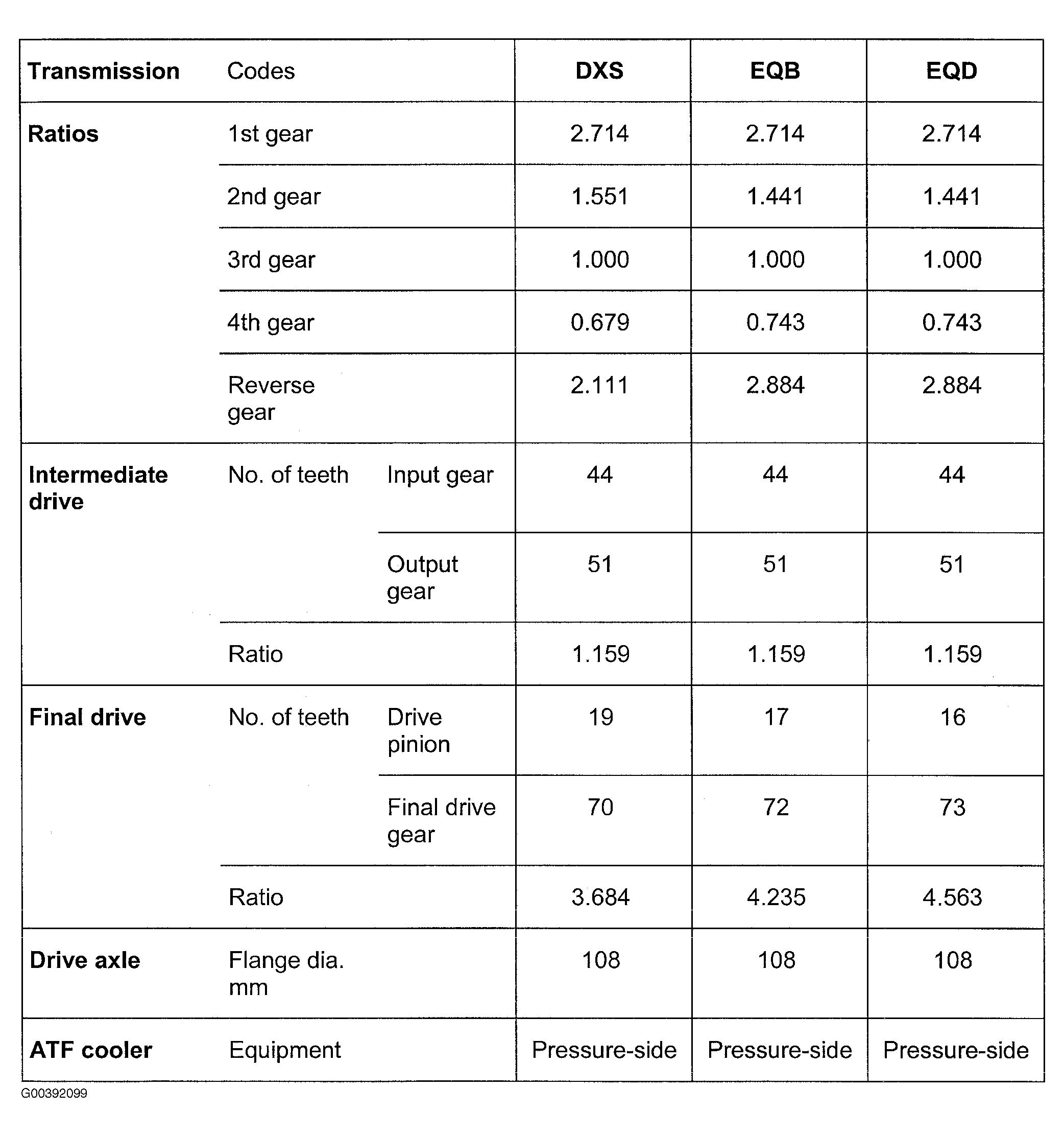

Fig 18: Identifying Transmission Codes DXS, EQB & EQD (2 Of 2)

G00392099

Courtesy of VOLKSWAGEN UNITED STATES, INC.

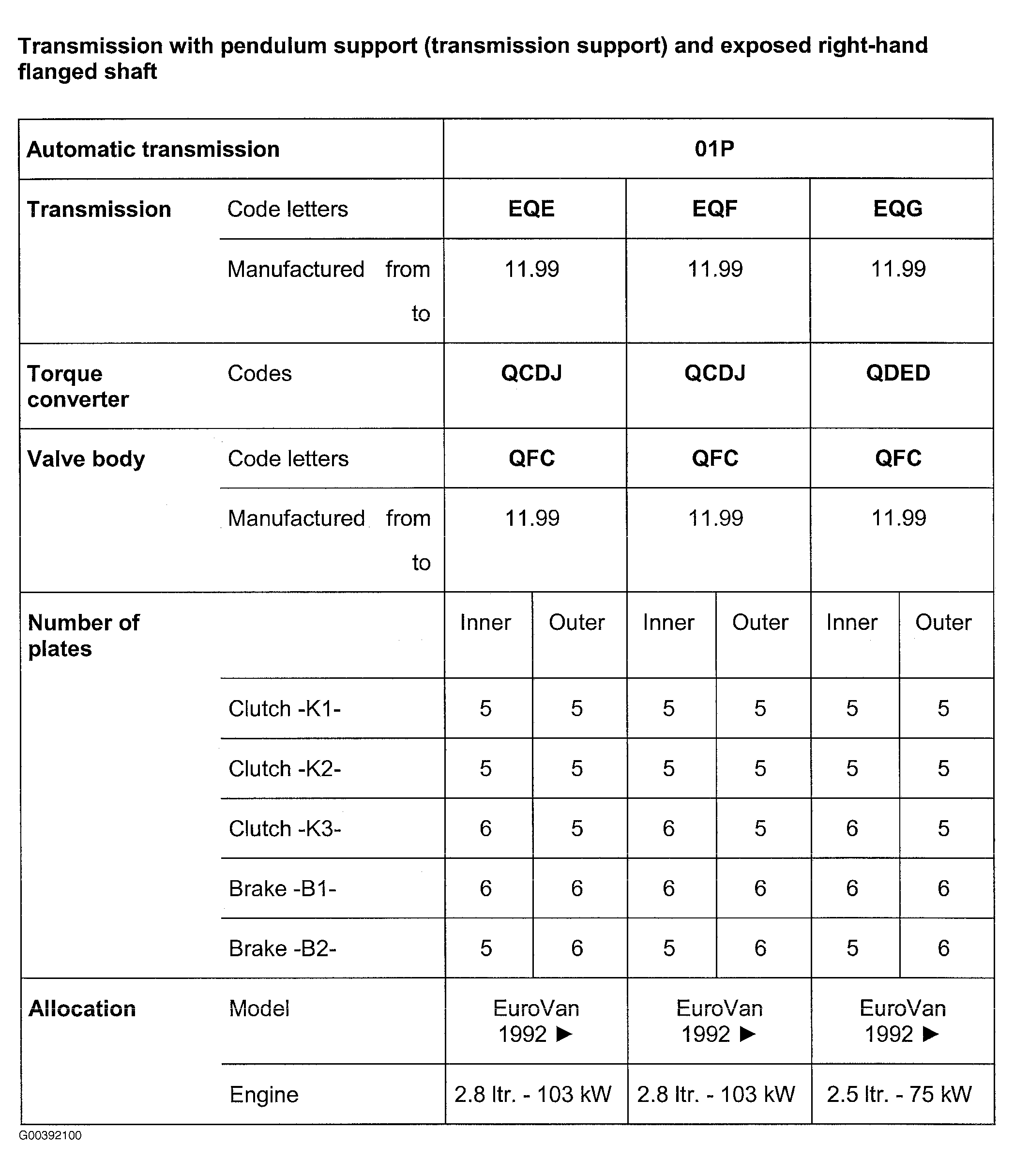

Fig 19: Identifying Transmission Codes EQE, EGF & EQG (1 Of 2)

G00392100

Courtesy of VOLKSWAGEN UNITED STATES, INC.

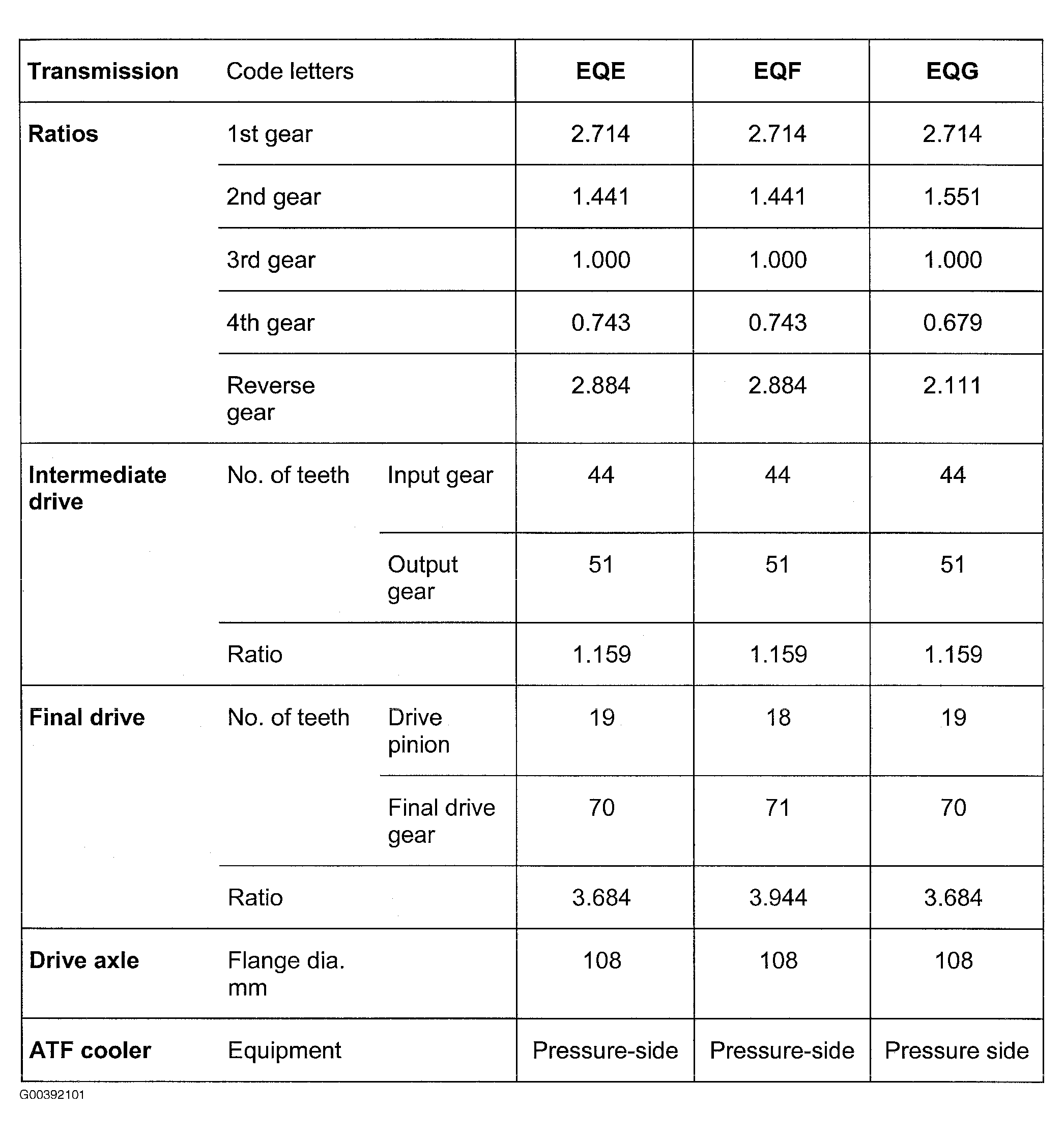

Fig 20: Identifying Transmission Codes EQE, EQF & EQG (2 Of 2)

G00392101

Courtesy of VOLKSWAGEN UNITED STATES, INC.

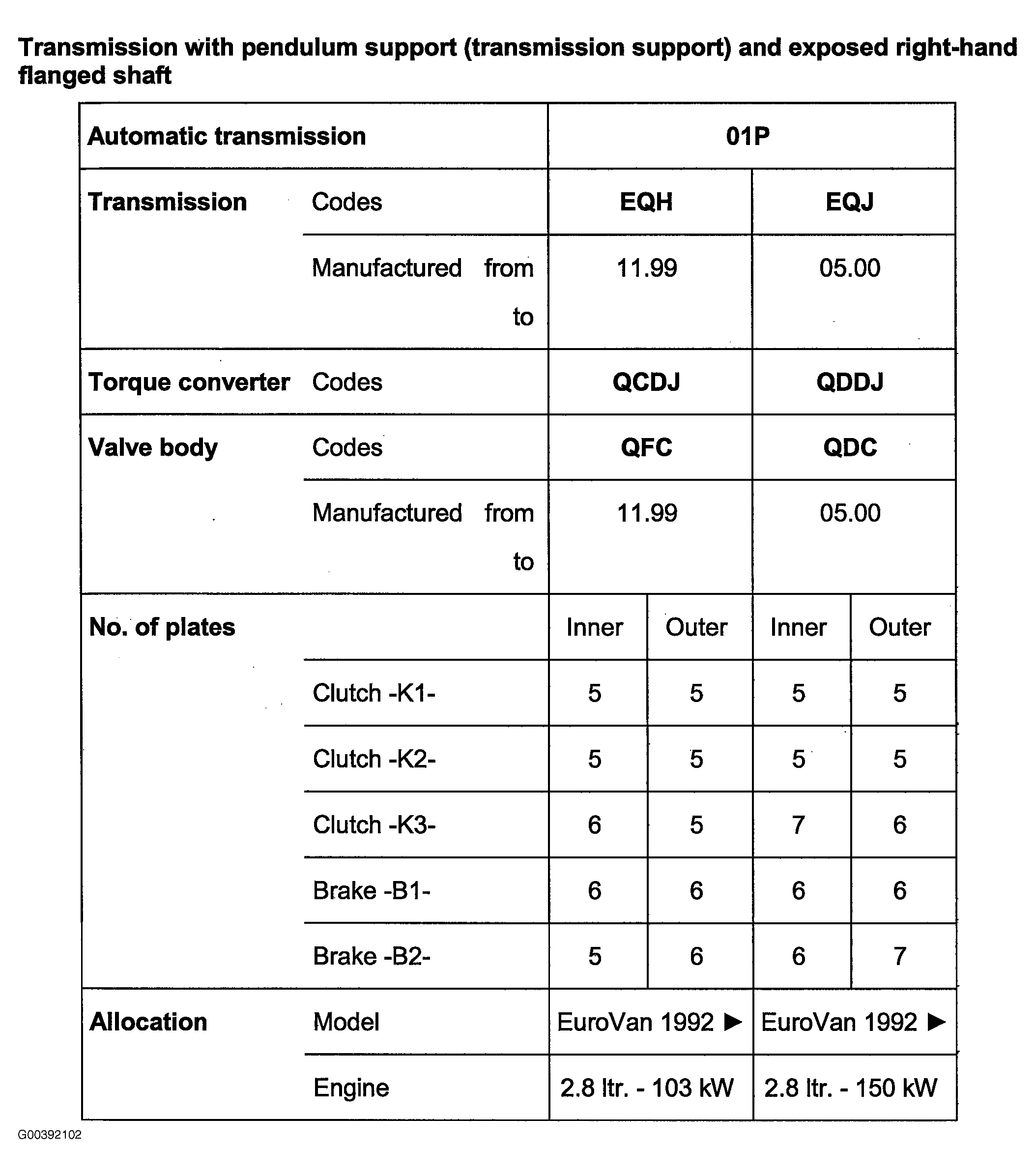

Fig 21: Identifying Transmission Codes EQH & EQJ (1 Of 2)

G00392102

Courtesy of VOLKSWAGEN UNITED STATES, INC.

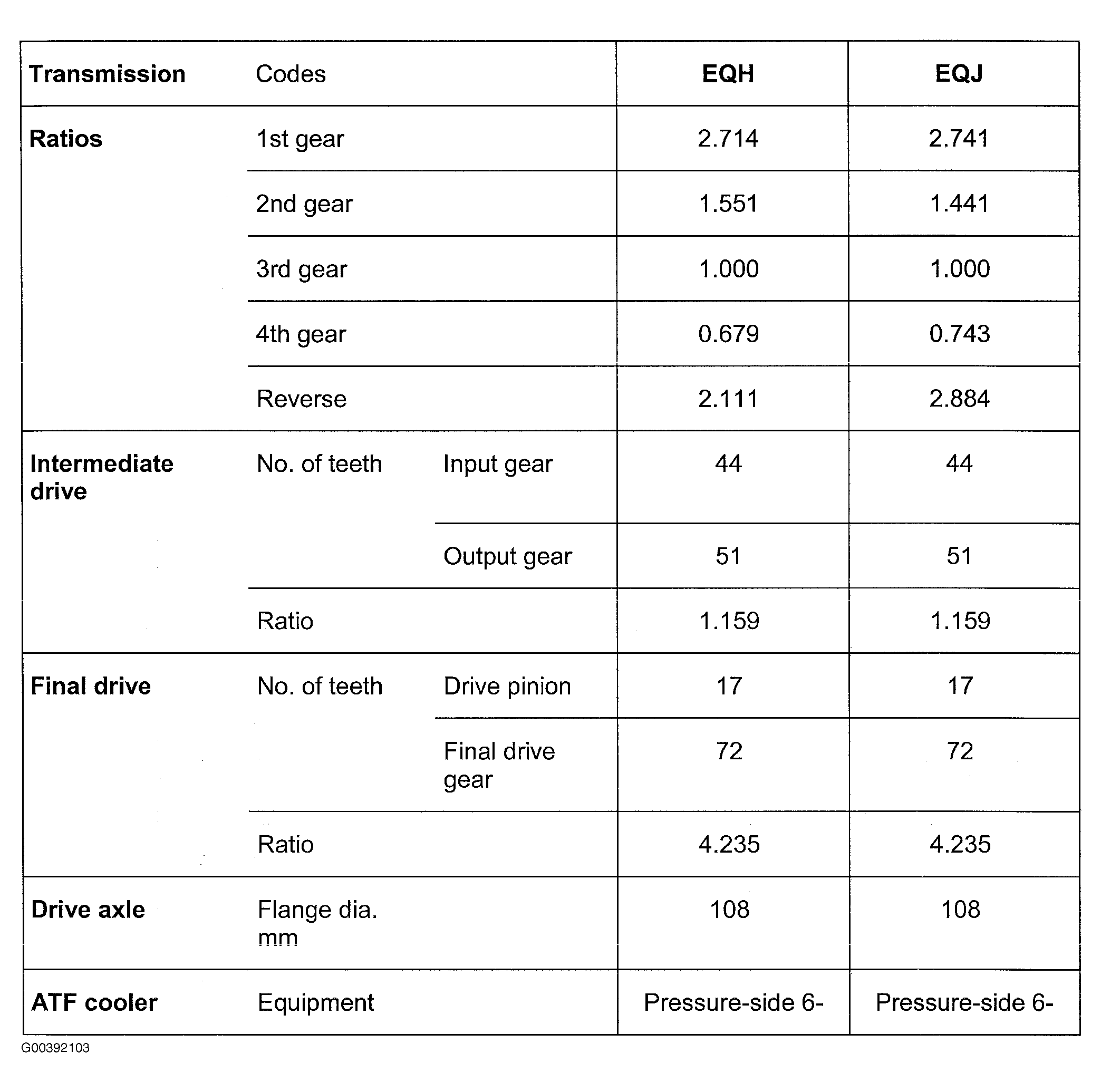

Fig 22: Identifying Transmission Codes EQH & EQJ (2 Of 2)

G00392103

Courtesy of VOLKSWAGEN UNITED STATES, INC.
