Table Of Shims (Differential)
TABLE OF SHIMS (DIFFERENTIAL)
| Size (mm) | Part No. |
|---|---|
| 0.65 | 02B 409 210 |
| 0.70 | 02B 409 210 A |
| 0.75 | 02B 409 210 B |
| 0.80 | 02B 409 210 C |
| 0.85 | 02B 409 210 D |
| 0.90 | 02B 409 210 E |
| 0.85 | 02B 409 210 F |
| 1.00 | 02B 409 210 G |
| 1.05 | 02B 409 210 H |
| 1.10 | 02B 409 210 J |
| 1.15 | 02B 409 210 K |
| 1.20 | 02B 409 210 L |
| 1.25 | 02B 409 210 M |
If the size of shim required is larger than that listed in the table, insert two shims totalling the correct dimension.

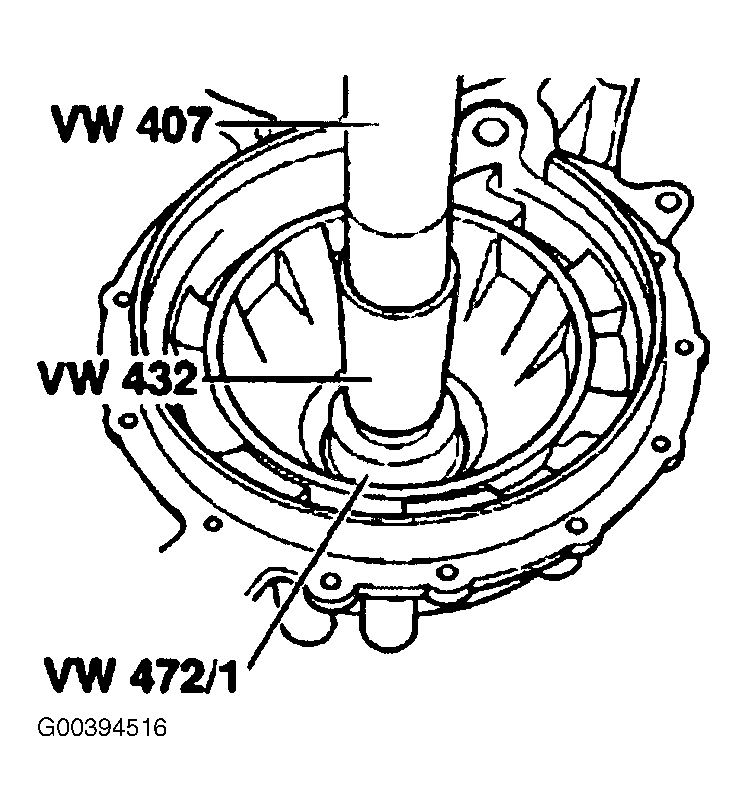

Press taper roller bearing outer ring, with shim, into torque converter housing. See Fig 1 .
