Adjusting Operating Rod For Manual Selector Valve
Move selector shaft to position "P".

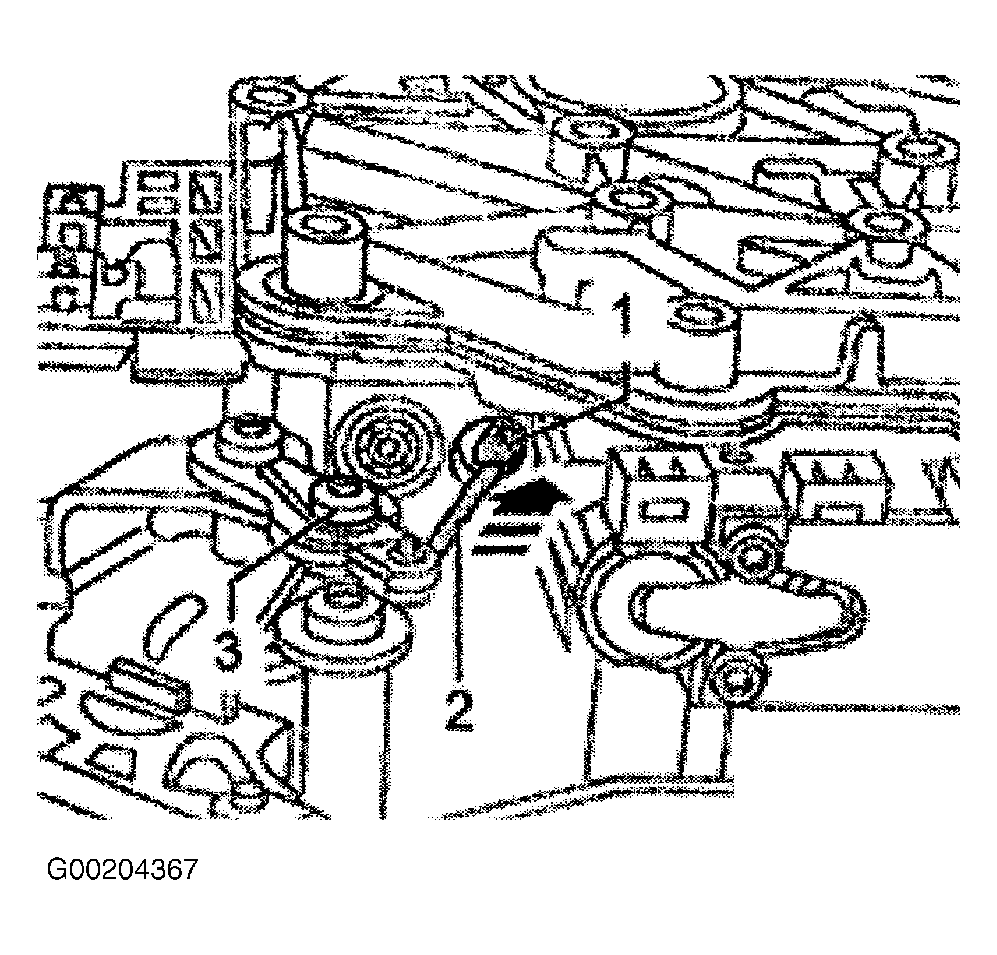

Push operating rod -2- with manual selector valve -1- into valve body onto stop (direction of arrow) and tighten bolt -3- to 4 Nm. See Fig 1 .
NOTE:
Manual selector valve must always be resting against the stop. Counter-hold when tightening bolt. Always replace bolt and manual selector valve retaining clip.
