Inserting Sealing Plug

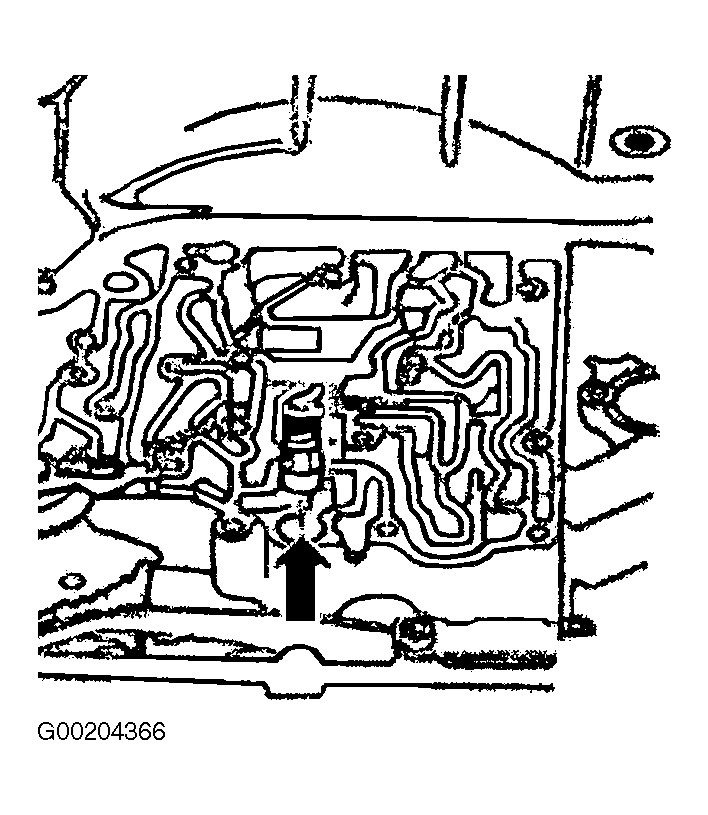

Pull sealing plug out of housing before removing and installing free wheel otherwise the sealing plug and the O-ring will be damaged. See Figure .

Moisten 2 new O-rings with ATF and install to sealing plug. Insert sealing plug in hole in transmission housing -arrow-.
