Removing Valve Body/Unhooking Operating Rod
When removing the valve body the manual selector valve -1- remains in valve body.
- Do not interchange manual selector valves of valve bodies.
- Shift selector lever/shaft into position "1".

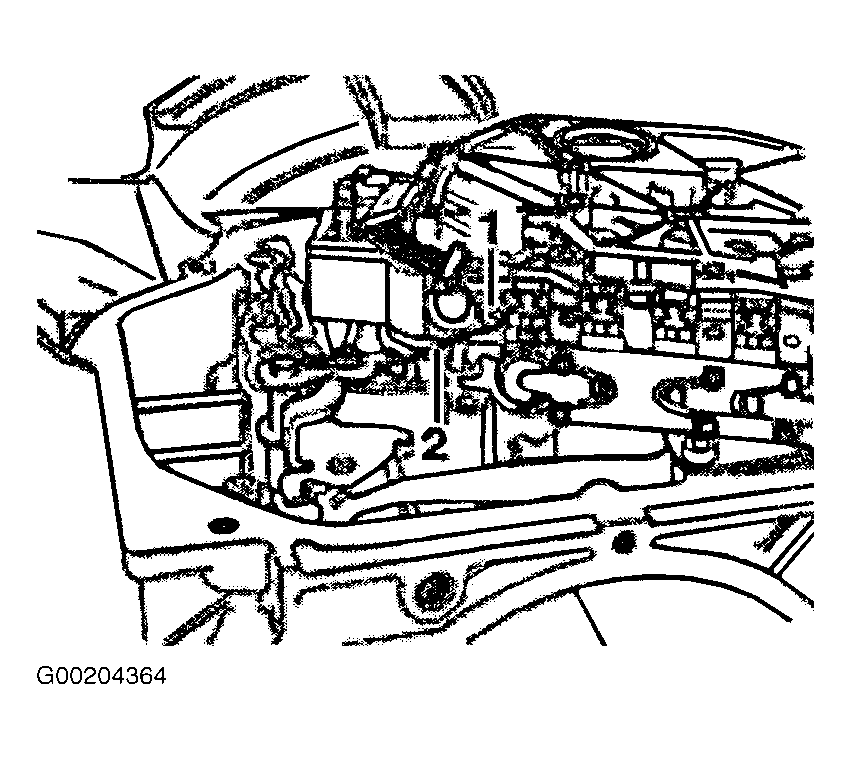

- Pull manual selector valve out until it is just possible to unhook the operating rod -2-. See Fig 1 .
- Secure manual selector valve so that it cannot fall out.
