Engine Code Location

ENGINE CODE LOCATION

Application		See Figure
Beetle
1.8L Turbo (APH & AWV)		Fig 1
1.8L Turbo (AWP)		Fig 2
1.9L Turbo Diesel (ALH)		Fig 3
2.0L (AEG)		Fig 4
2.0L (AVH & AZG)		Fig 5
Cabrio
2.0L (ABA)		Fig 6
EuroVan
2.8L (AES)		Fig 7
2.8L (AXK)		Fig 8
Golf
1.8L Turbo (AWD)		Fig 1
1.9L Turbo Diesel (ALH)		Fig 3
2.0L (AEG)		Fig 4
2.0L (AVH & AZG)		Fig 5
GTI
1.8L Turbo (AWD)		Fig 1
1.8L Turbo (AWW)		Fig 2
1.8L Turbo (AWP)		Fig 2
2.0L (AEG)		Fig 4
2.8L (AFP)		Fig 9
2.8L (BDF)		Fig 8
Jetta
1.8L Turbo (AWD)		Fig 1
1.8L Turbo (AWW)		Fig 2
1.8L Turbo (AWP)		Fig 2
1.9L Turbo Diesel (ALH)		Fig 3
2.0L (AEG)		Fig 4
2.0L (AVH & AZG)		Fig 5
2.8L (AFP)		Fig 9
2.8L (BDF)		Fig 8
Passat
1.8L Turbo (ATW, AUG & AWM)		Fig 10
2.8L (ATQ)		Fig 11
4.0L (BDP)		Fig 12

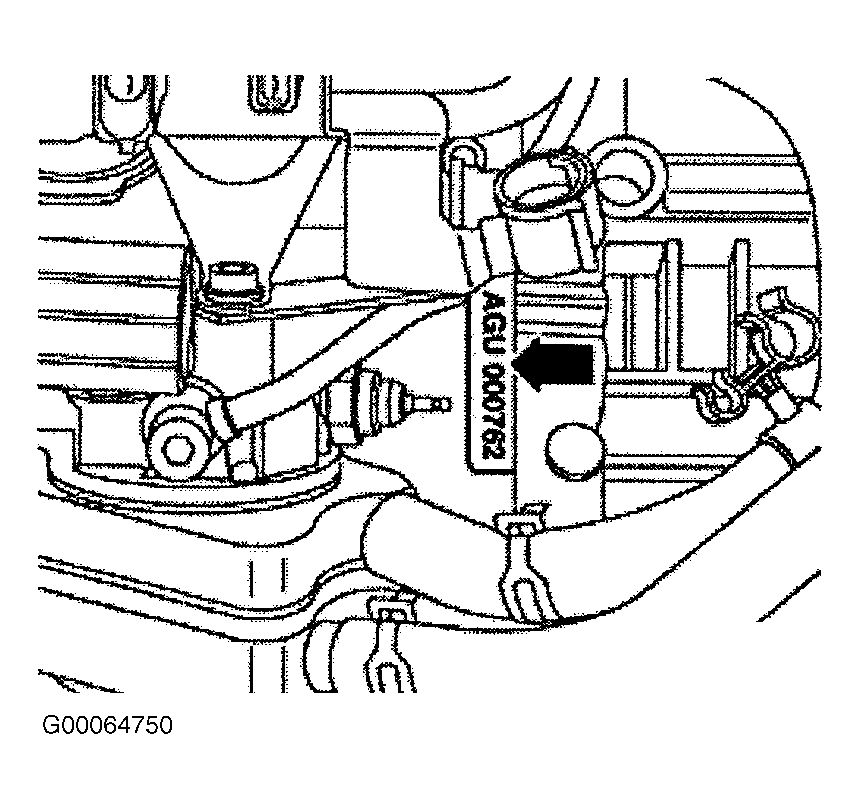

Fig 1: Locating Engine Identification Code (1.8L Turbo)

G00064750

Courtesy of VOLKSWAGEN UNITED STATES, INC.

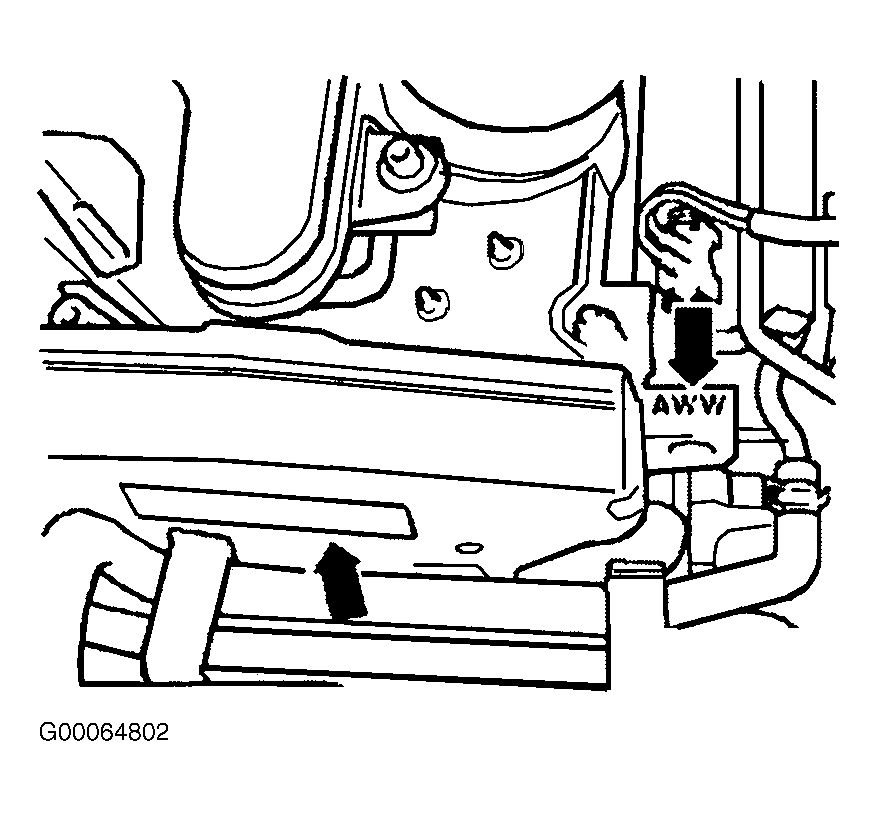

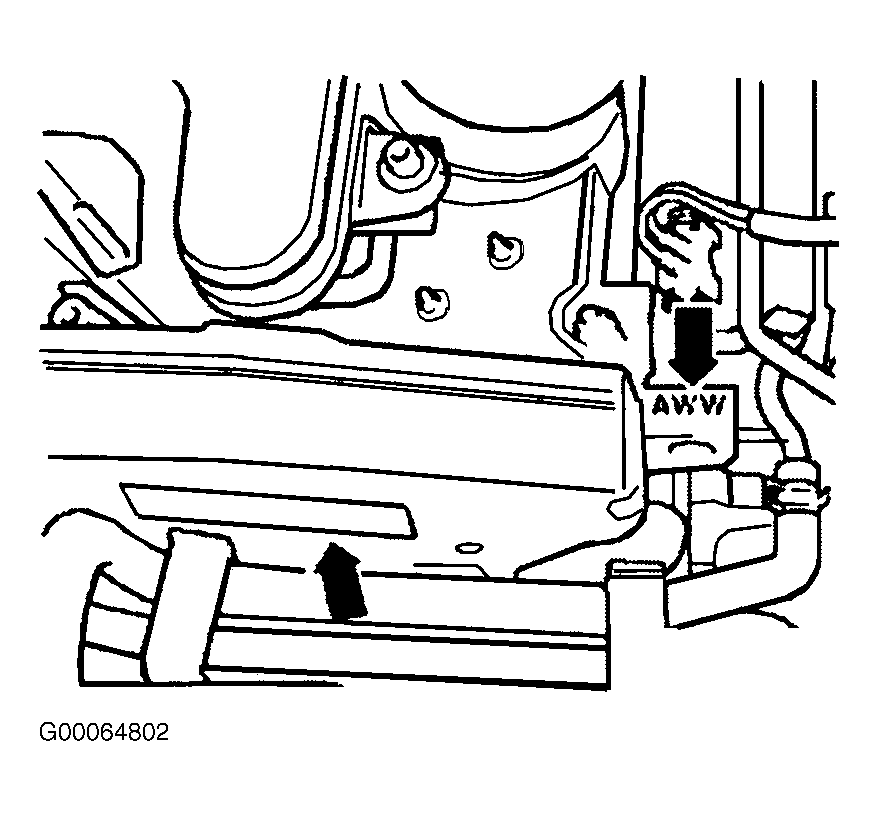

Fig 2: Locating Engine Identification Code (1.8L Turbo)

G00064802

Courtesy of VOLKSWAGEN UNITED STATES, INC.

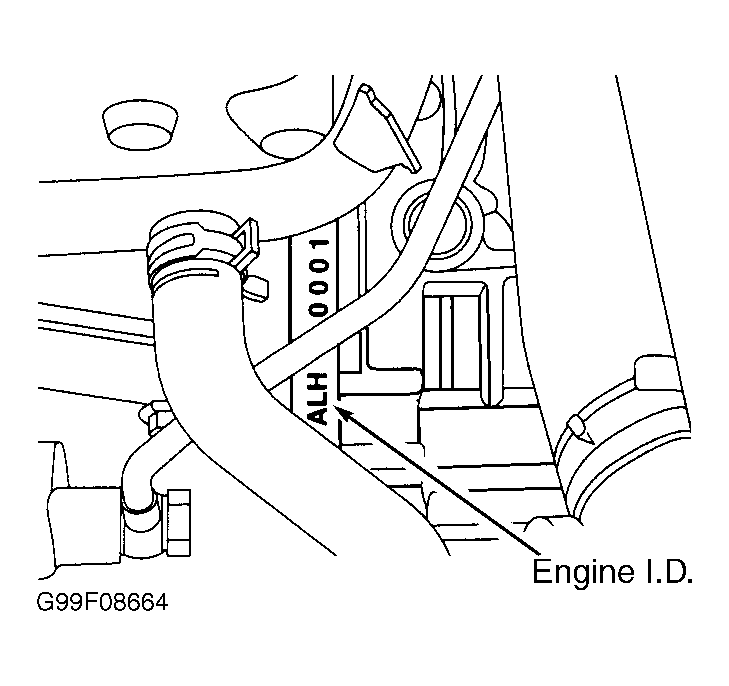

Fig 3: Locating Engine Identification Code (1.9L Turbo Diesel)

G99F08664

Courtesy of VOLKSWAGEN UNITED STATES, INC.

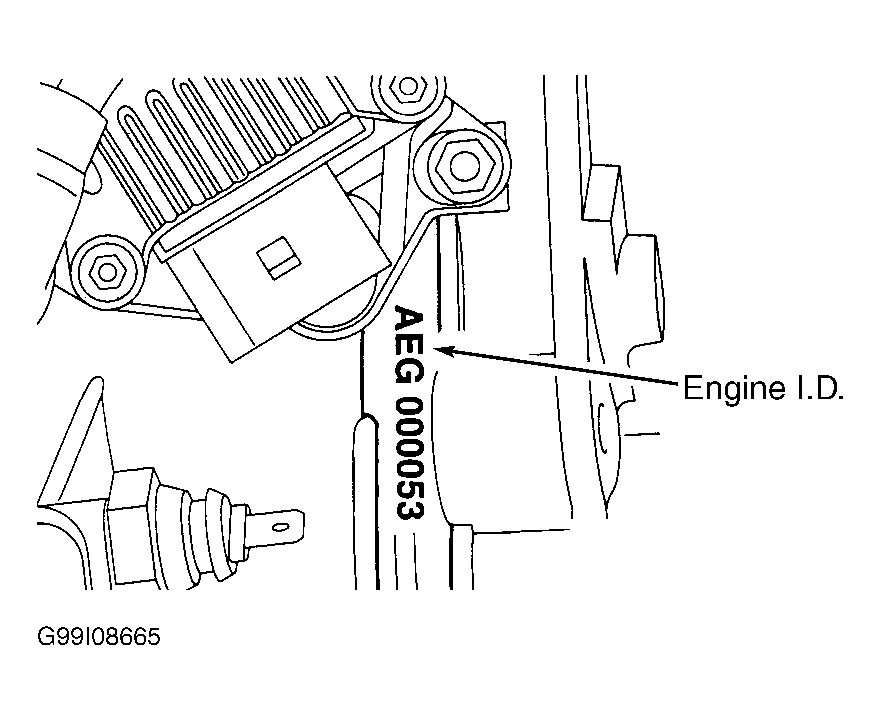

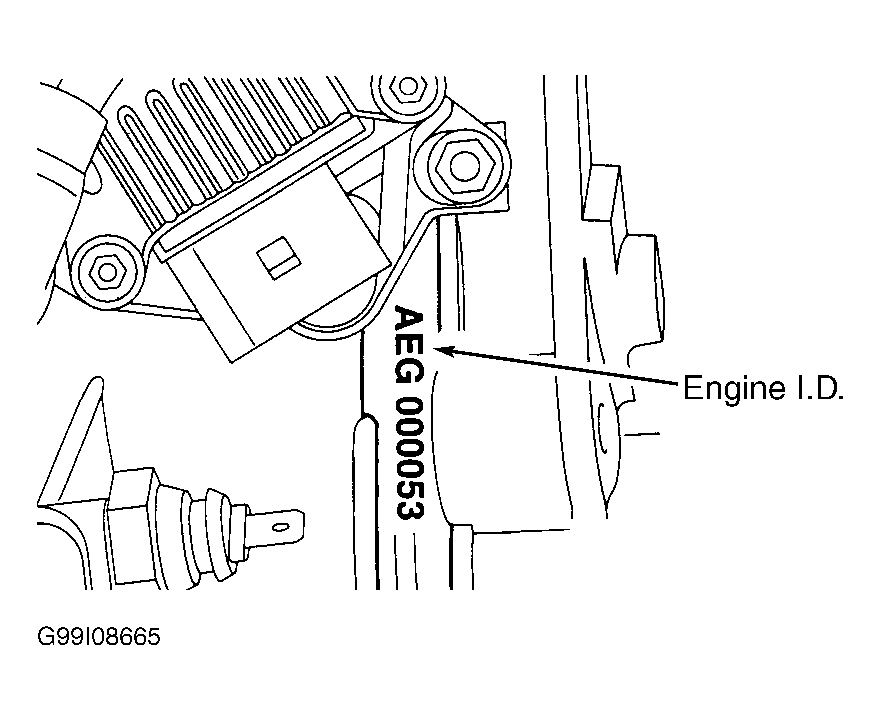

Fig 4: Locating Engine Identification Code (2.0L)

G99I08665

Courtesy of VOLKSWAGEN UNITED STATES, INC.

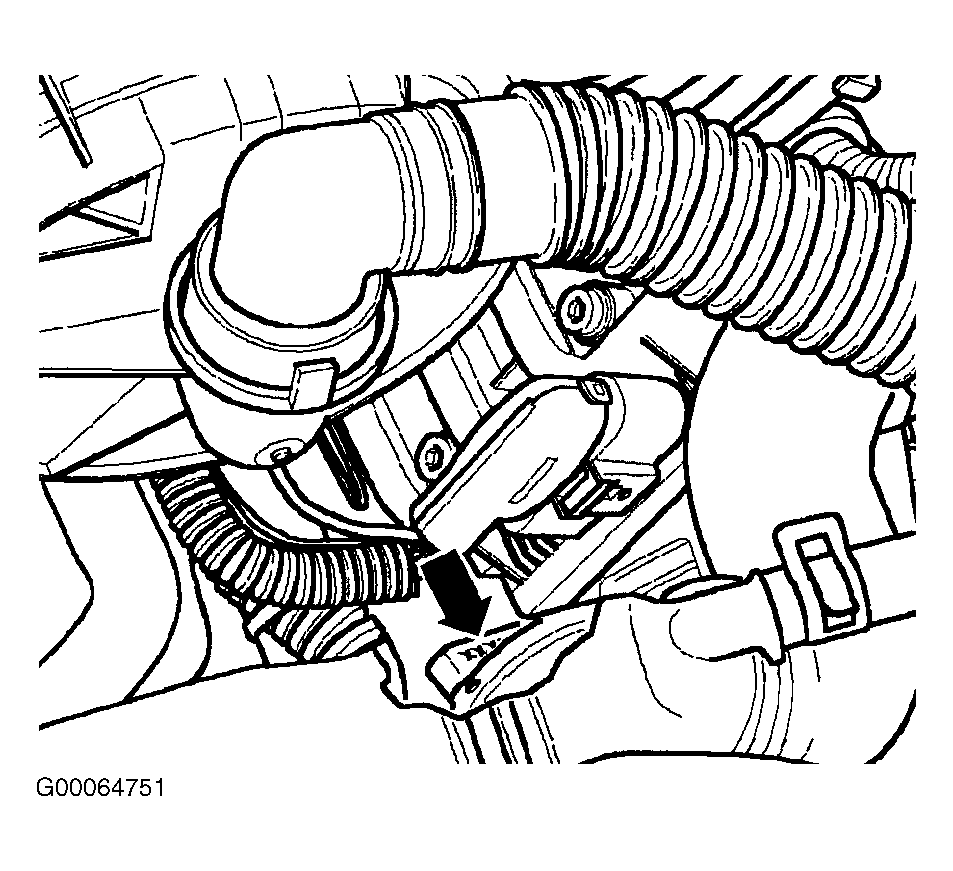

Fig 5: Locating Engine Identification Code (2.0L)

G00064751

Courtesy of VOLKSWAGEN UNITED STATES, INC.

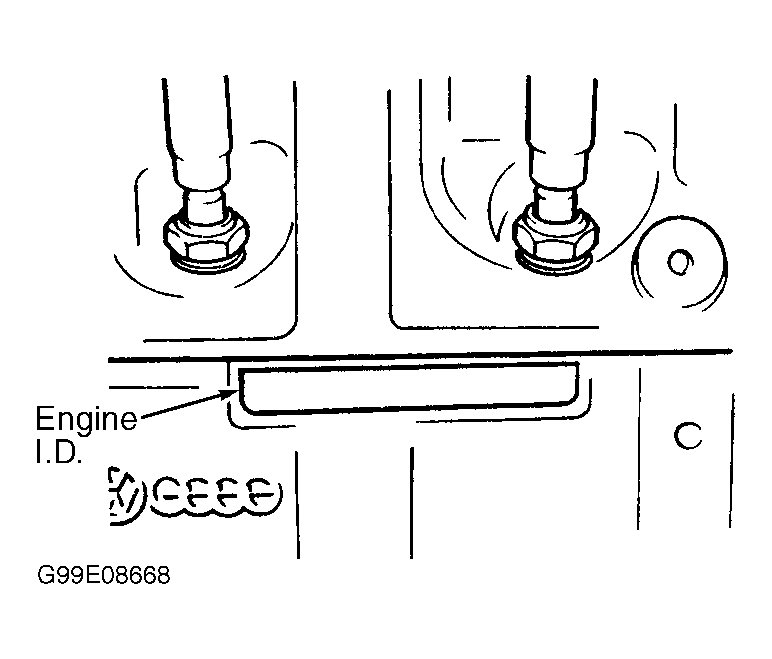

Fig 6: Locating Engine Identification Code (2.0L)

G99E08668

Courtesy of VOLKSWAGEN UNITED STATES, INC.

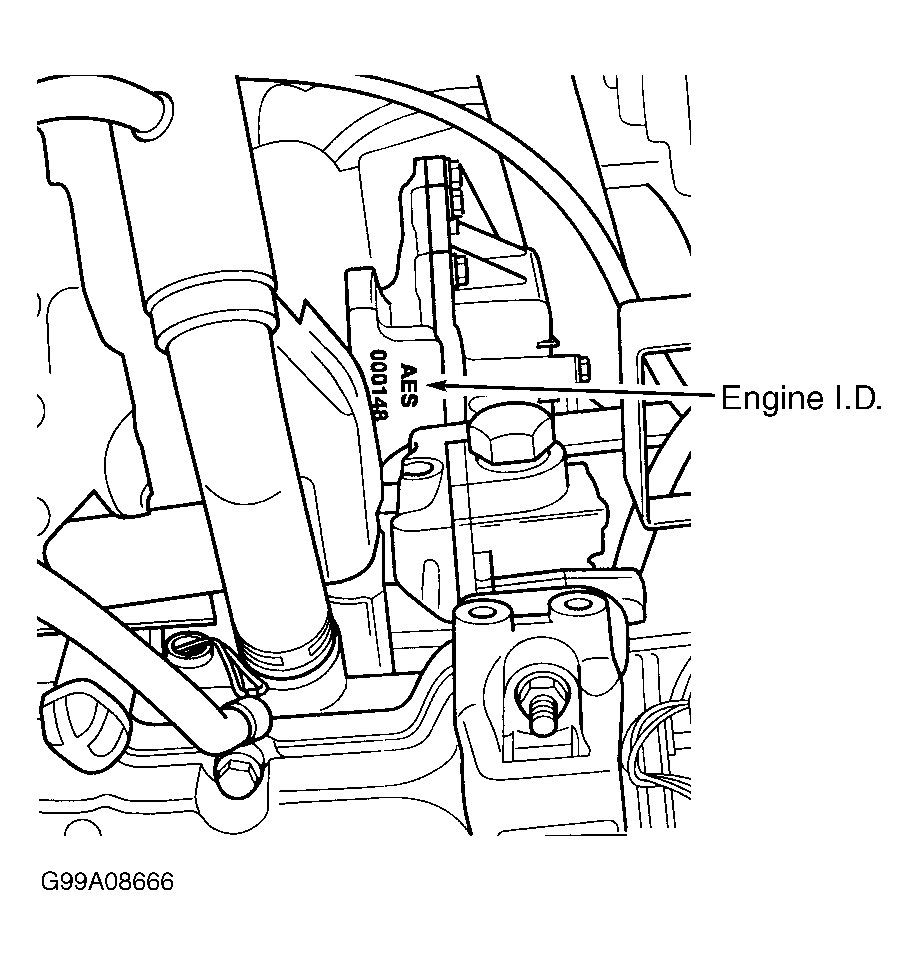

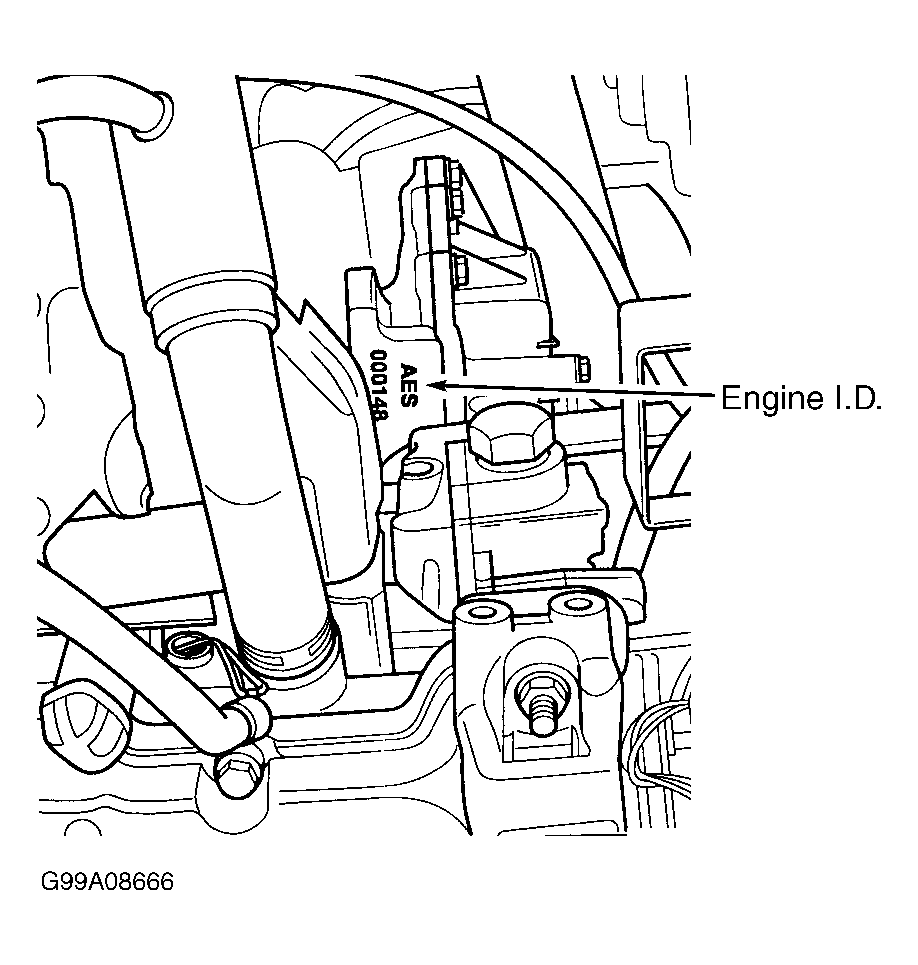

Fig 7: Locating Engine Identification Code (2.8L VR6)

G99A08666

Courtesy of VOLKSWAGEN UNITED STATES, INC.

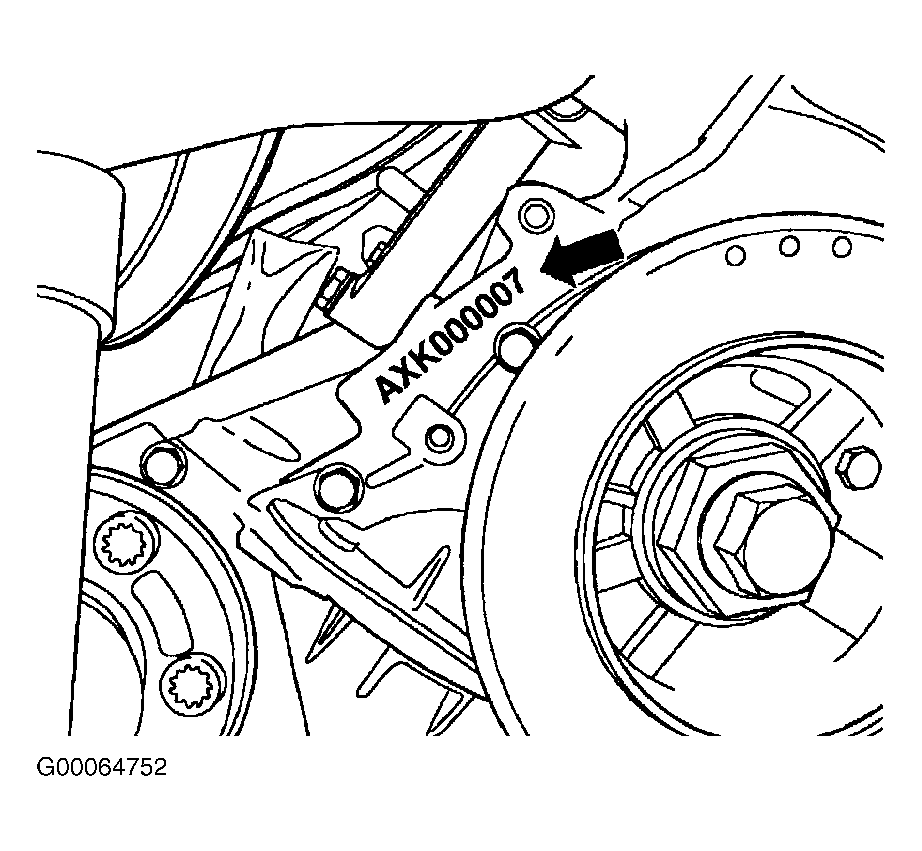

Fig 8: Locating Engine Identification Code (2.8L VR6 4V)

G00064752

Courtesy of VOLKSWAGEN UNITED STATES, INC.

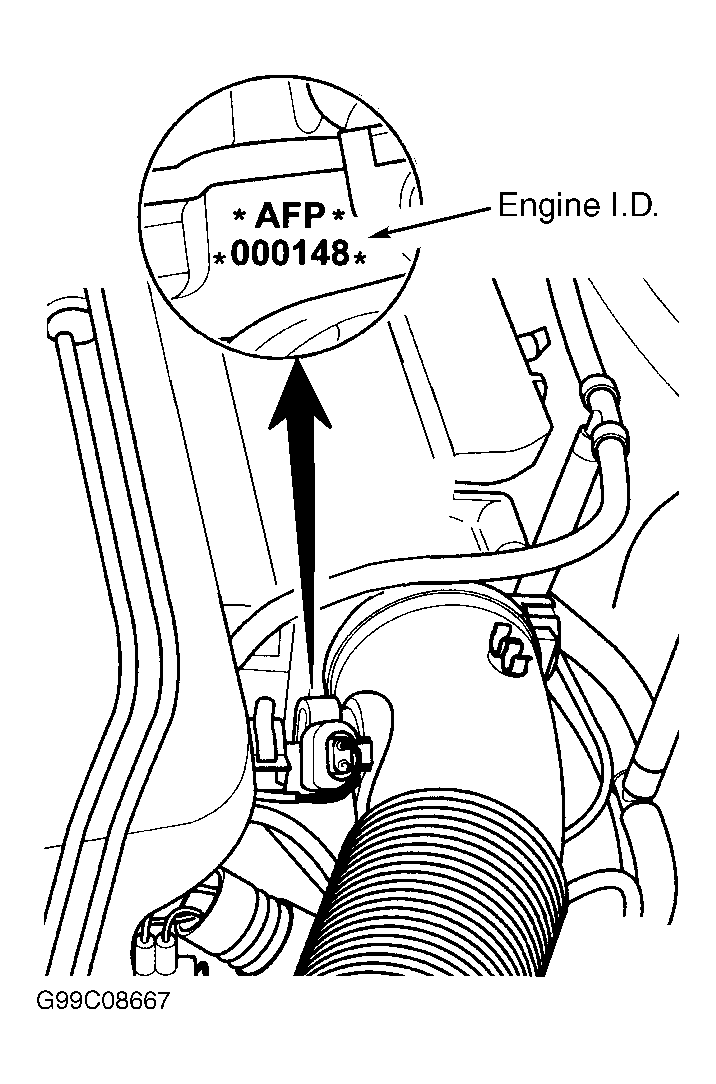

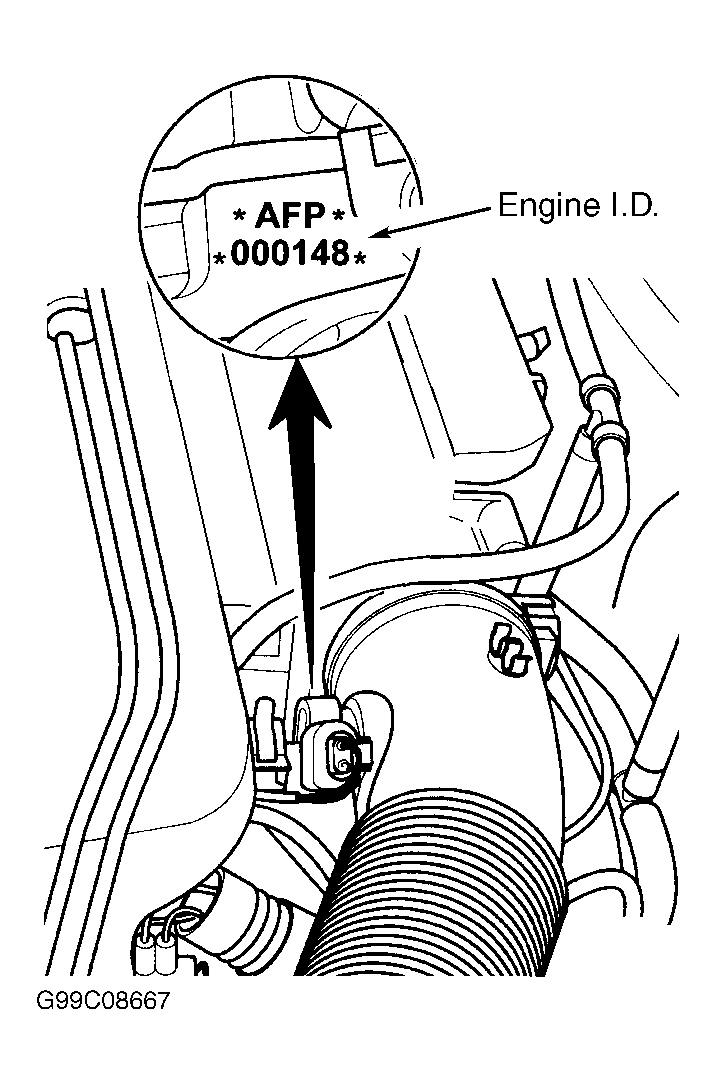

Fig 9: Locating Engine Identification Code, (2.8L VR6)

G99C08667

Courtesy of VOLKSWAGEN UNITED STATES, INC.

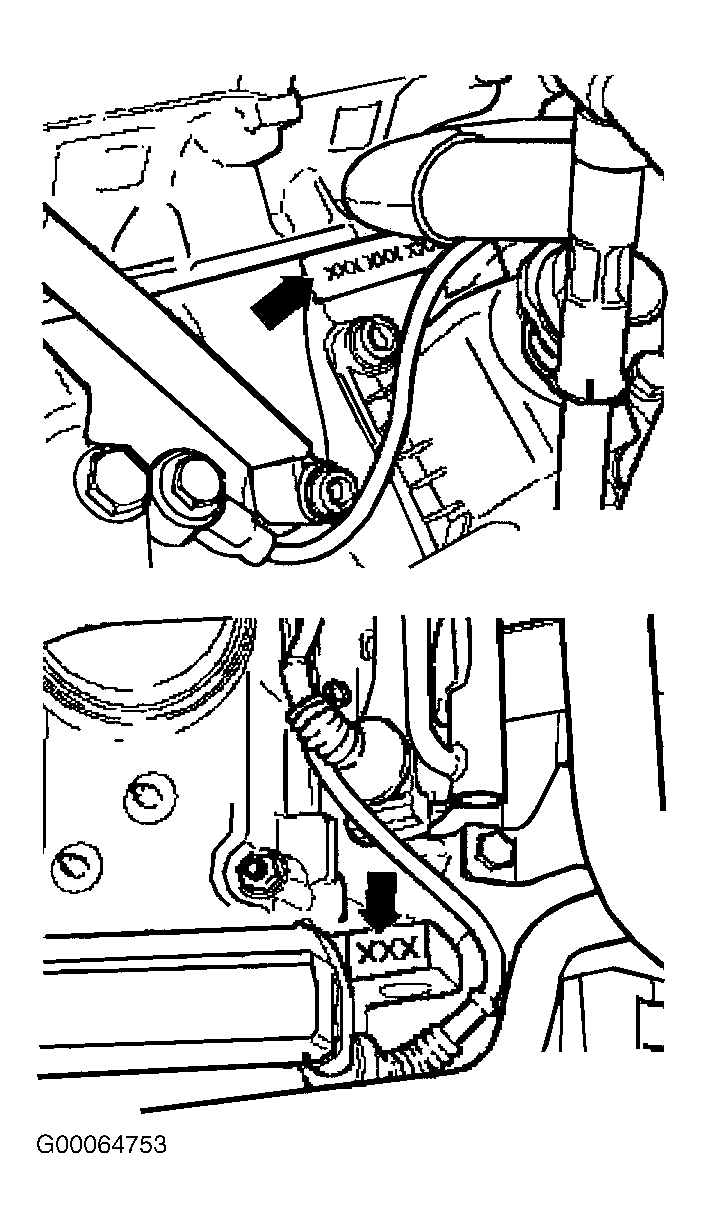

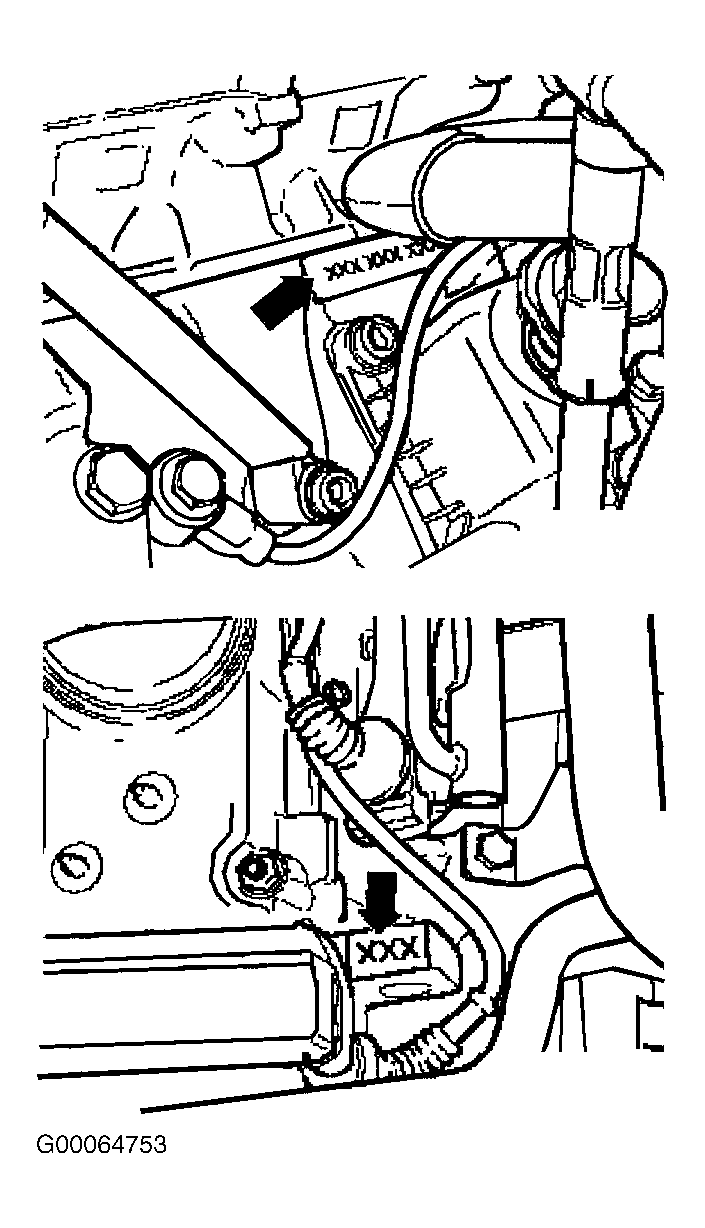

Fig 10: Locating Engine Identification Code (1.8L Turbo)

G00064753

Courtesy of VOLKSWAGEN UNITED STATES, INC.

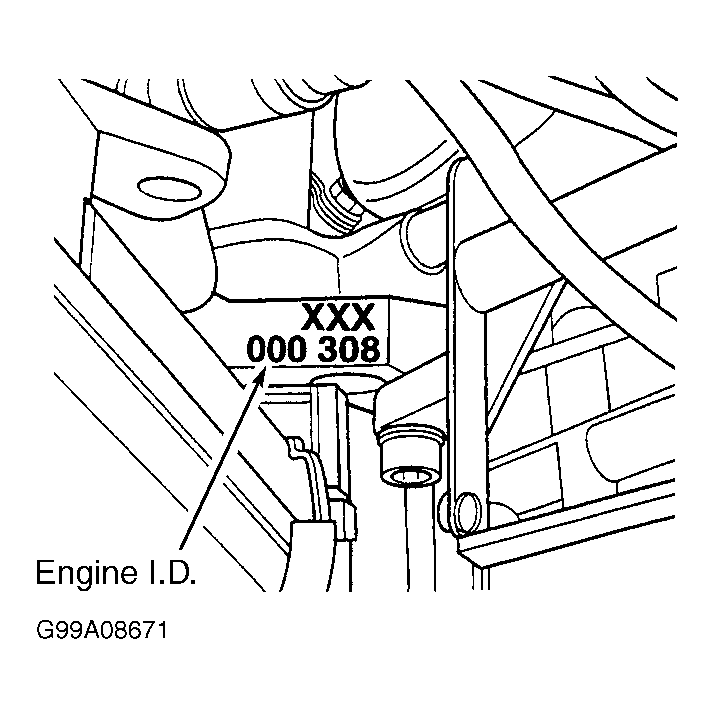

Fig 11: Locating Engine Identification Code (2.8L 90 Degree V6)

G99A08671

Courtesy of VOLKSWAGEN UNITED STATES, INC.

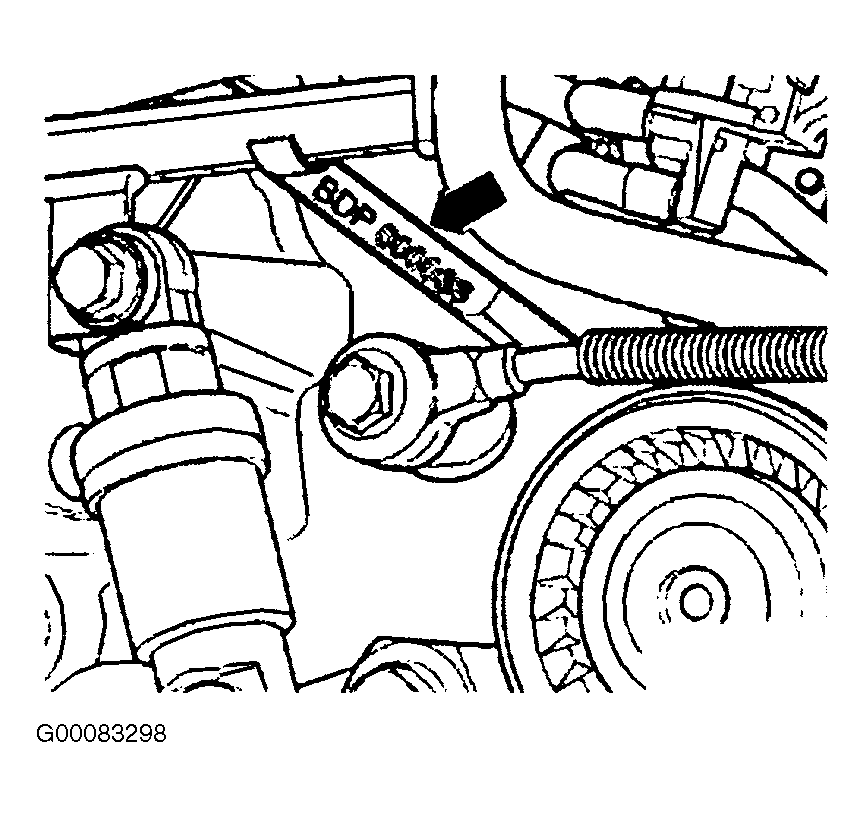

Fig 12: Locating Engine Code Identification Code (4.0L W8)

G00083298

Courtesy of VOLKSWAGEN UNITED STATES, INC.
