Fuse/Relay Locations
CAUTION:
When battery is disconnected, radio will go into anti-theft protection mode. Obtain radio anti-theft protection code from owner prior to servicing vehicle.
NOTE:

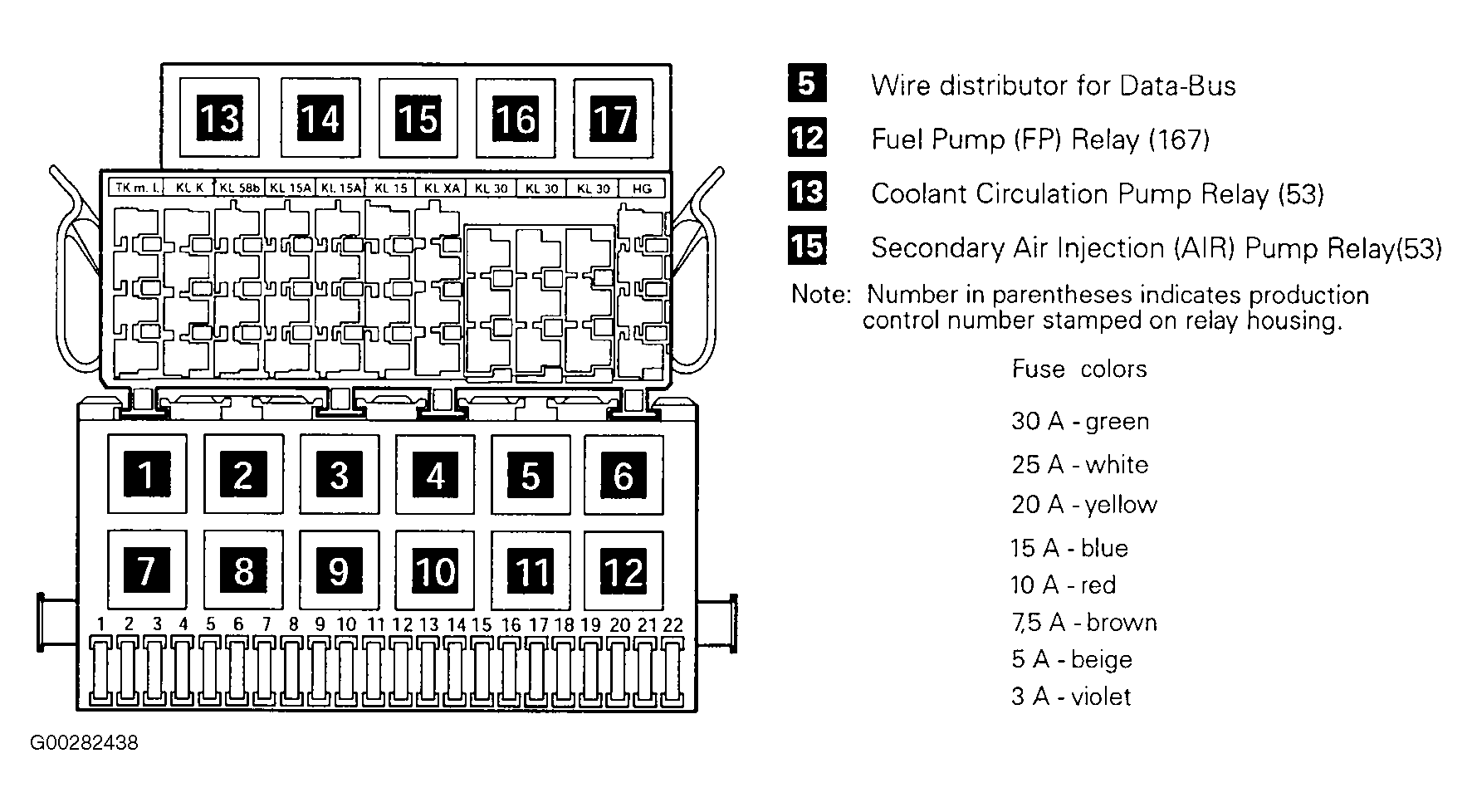

Figure is for fuse number identification only. Fuse amperage and relay numbering may vary by vehicle year and model.
On EuroVan, fuse panel is located behind driver's side storage compartment, below steering column. Turn locking knob counterclockwise to release storage compartment from dash.
