Component Locations: Notes

CAUTION: When battery is disconnected, radio will go into anti-theft protection mode. Obtain radio anti-theft protection code from owner prior to servicing vehicle.

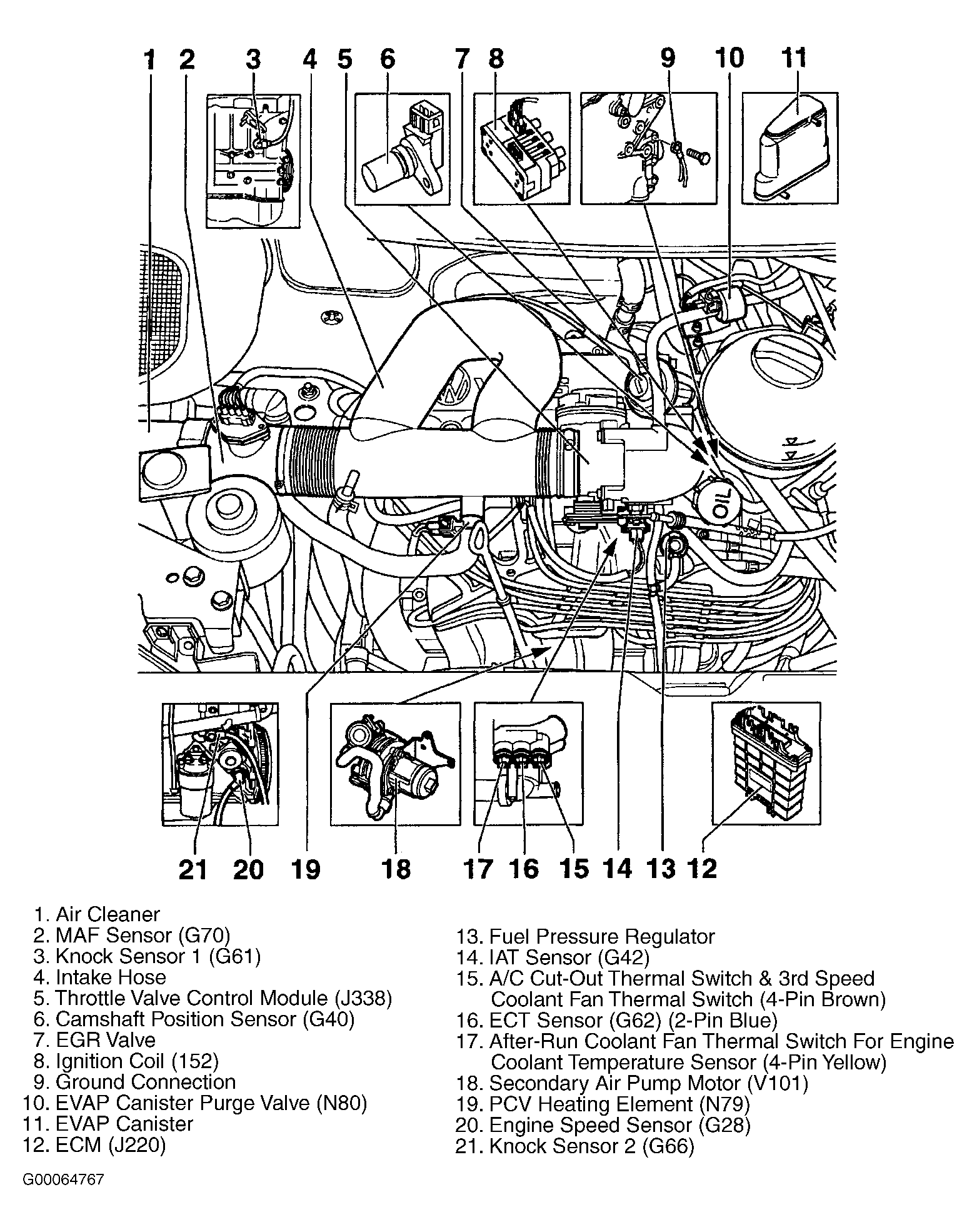

Fig 1: Locating Engine Control System Components (EuroVan - 2.8L Engine Code AES VR6)
G00064767Courtesy of VOLKSWAGEN UNITED STATES, INC.

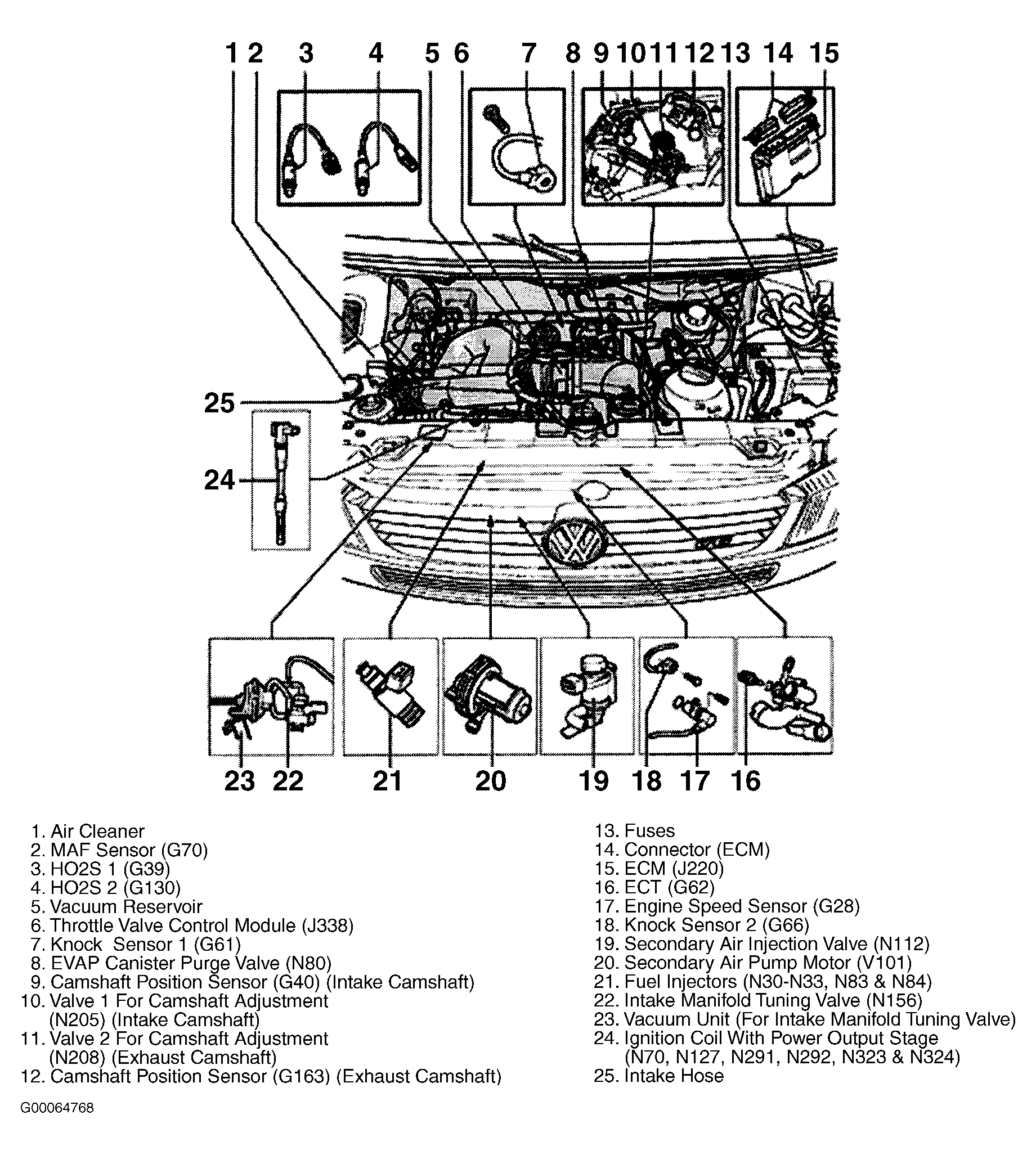

Fig 2: Locating Engine Control System Components (EuroVan - 2.8L Engine Code AXK VR6 4V)
G00064768Courtesy of VOLKSWAGEN UNITED STATES, INC.

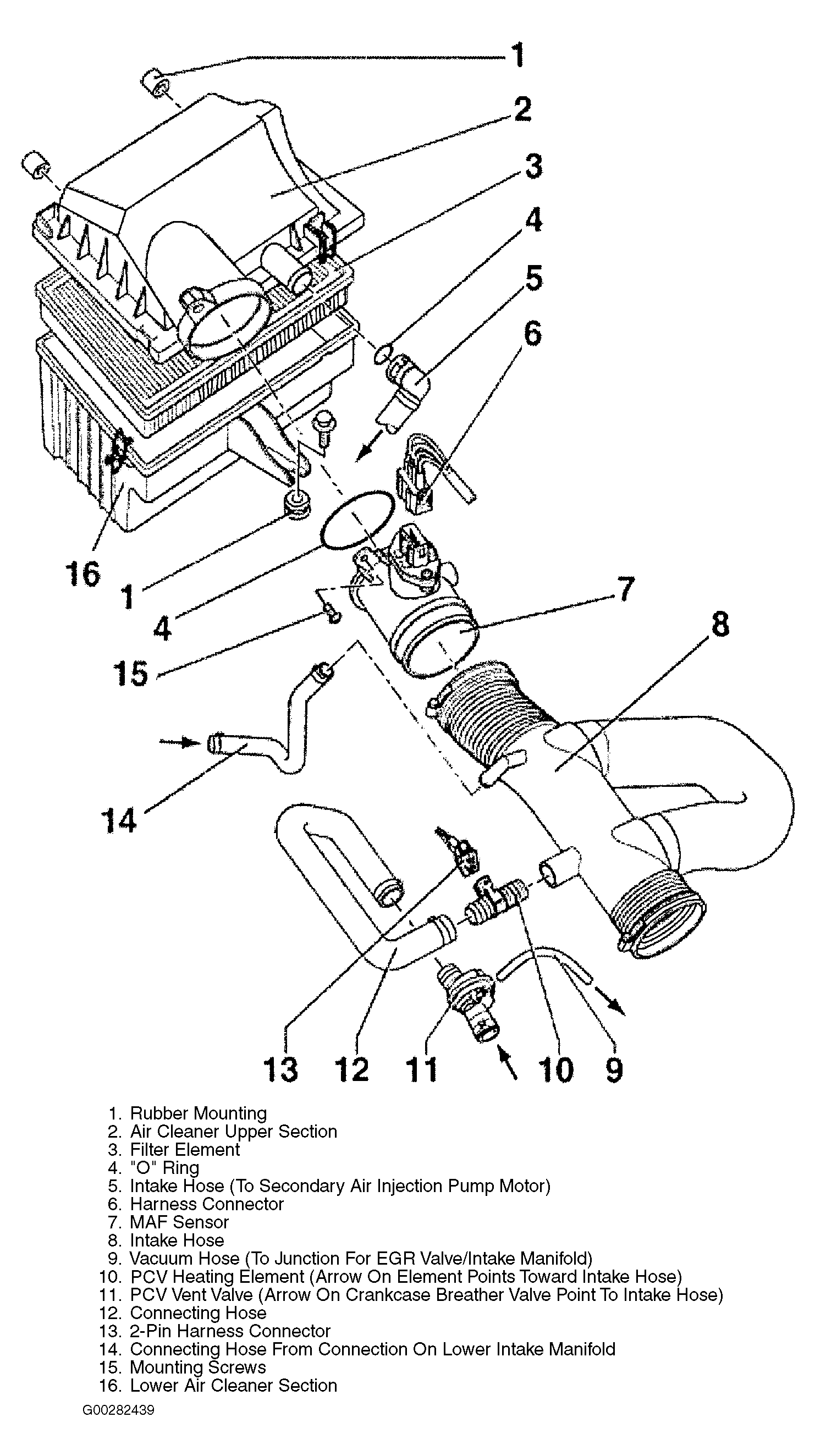

Fig 3: Identifying Air Cleaner Components (2.8L Engine Code AES VR6)
G00282439Courtesy of VOLKSWAGEN UNITED STATES, INC.

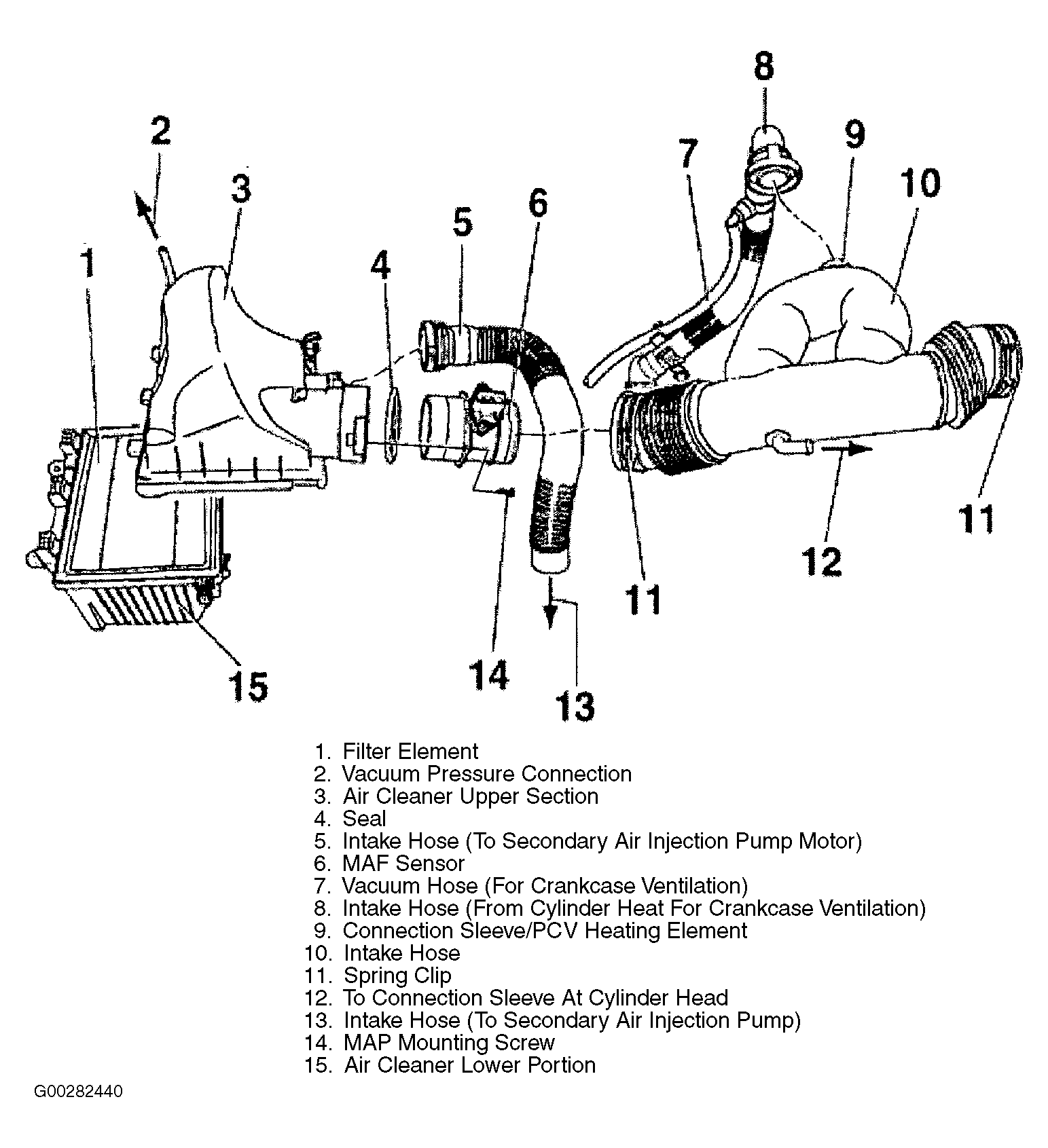

Fig 4: Identifying Air Cleaner Components (2.8L Engine Code AXK VR6)
G00282440Courtesy of VOLKSWAGEN UNITED STATES, INC.
