Connecting VAG Test Box: EUROVAN

Turn ignition off. Connect test equipment. See Fig 1 or Fig 2 .

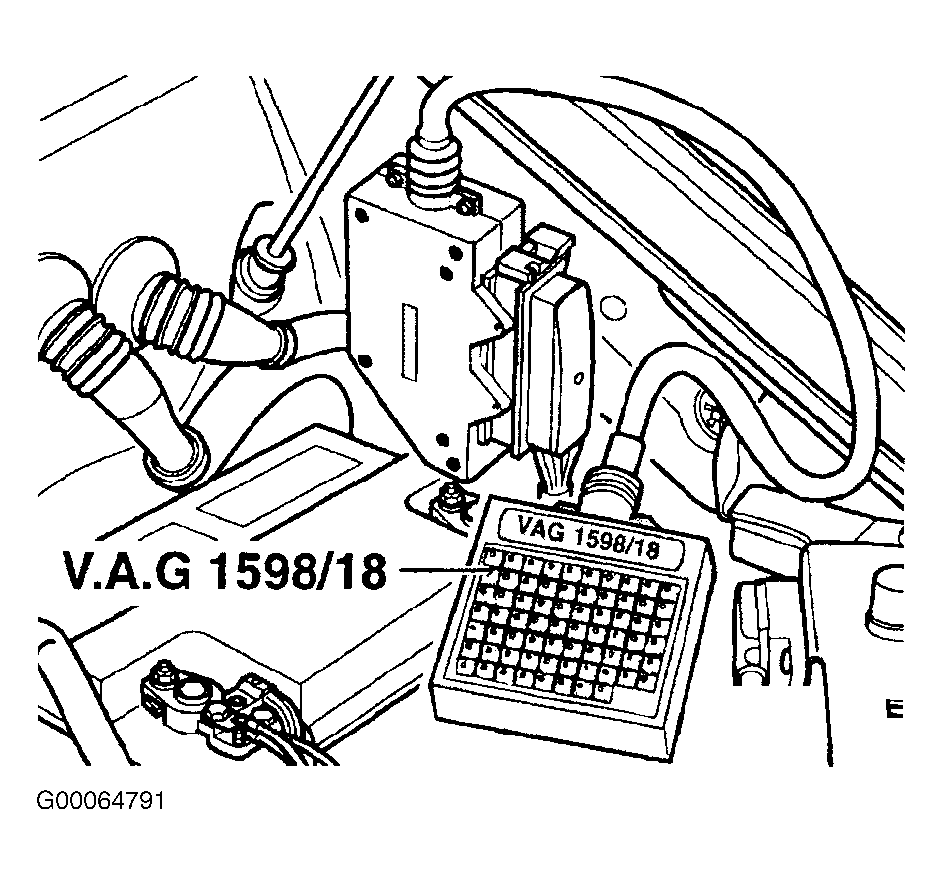

Fig 1: Connecting VAG Test Box 1598/18 (EuroVan - 2.8L AES)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

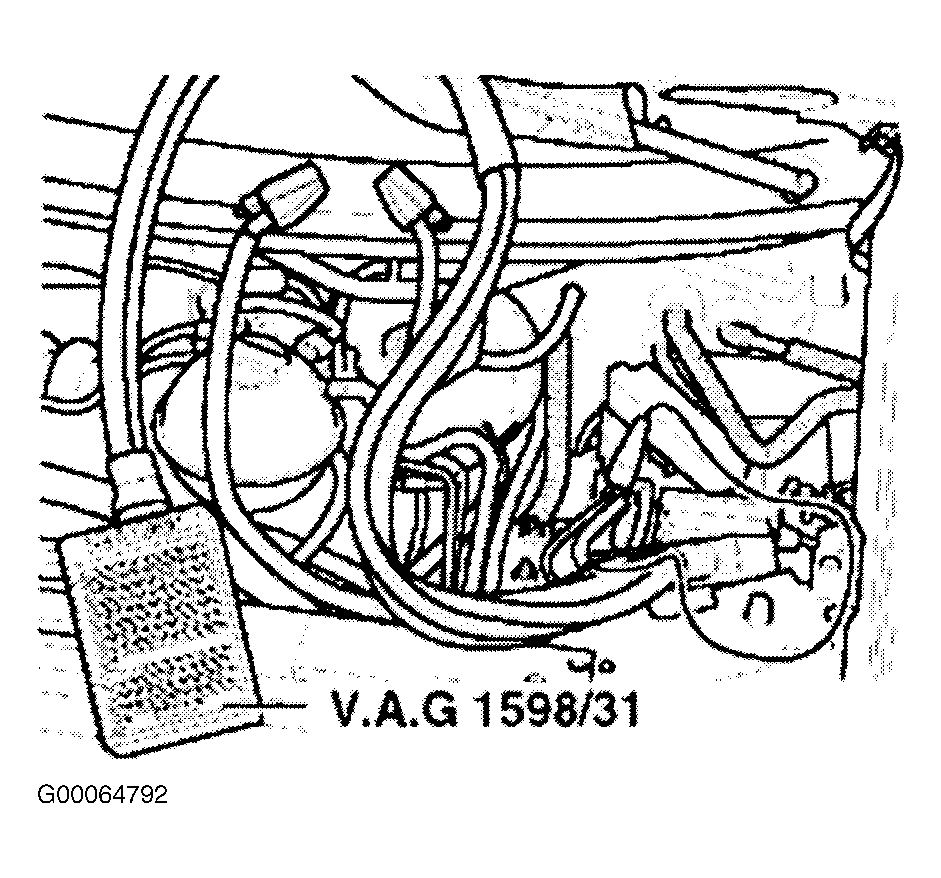

Fig 2: Connecting VAG Test Box 1598/31 (EuroVan - 2.8L AXK)

Courtesy of VOLKSWAGEN UNITED STATES, INC.
