Data Link Connector

CAUTION: When battery is disconnected, radio will go into anti-theft protection mode. Obtain radio anti-theft protection code from owner prior to servicing vehicle.

NOTE: OBD-II regulation (SAE J-1850) has standardized Data Link Connector (DLC) configuration.

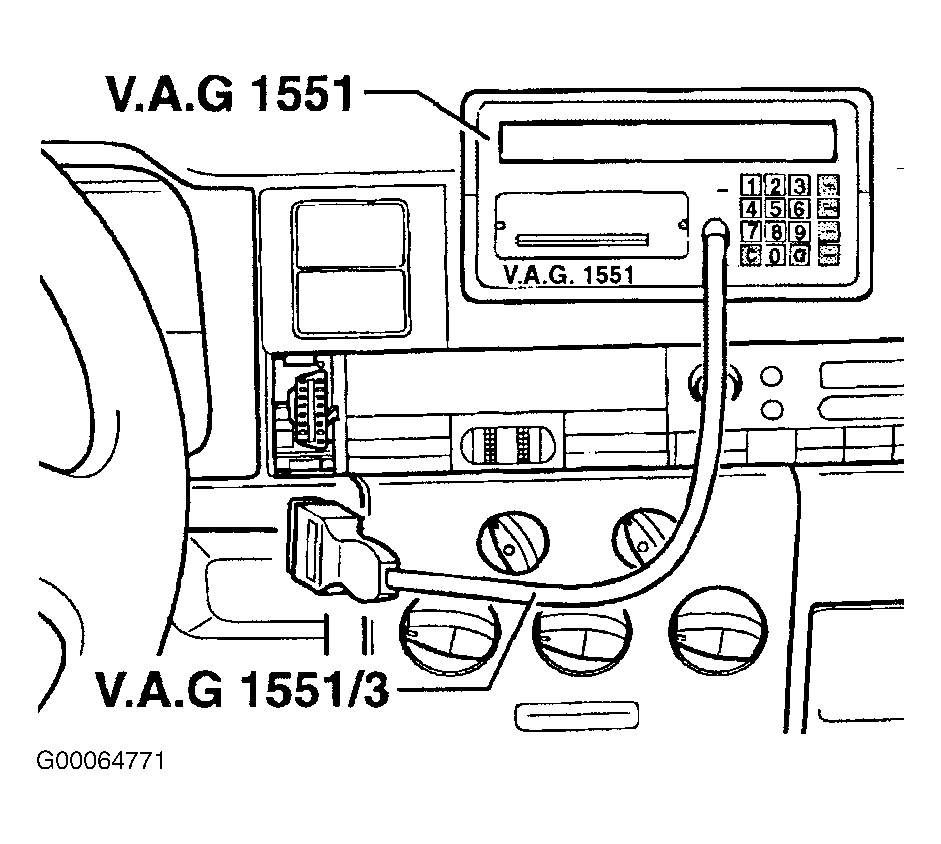

Fig 1: Locating Data Link Connector (EuroVan - 2.8L Engine Code AES)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

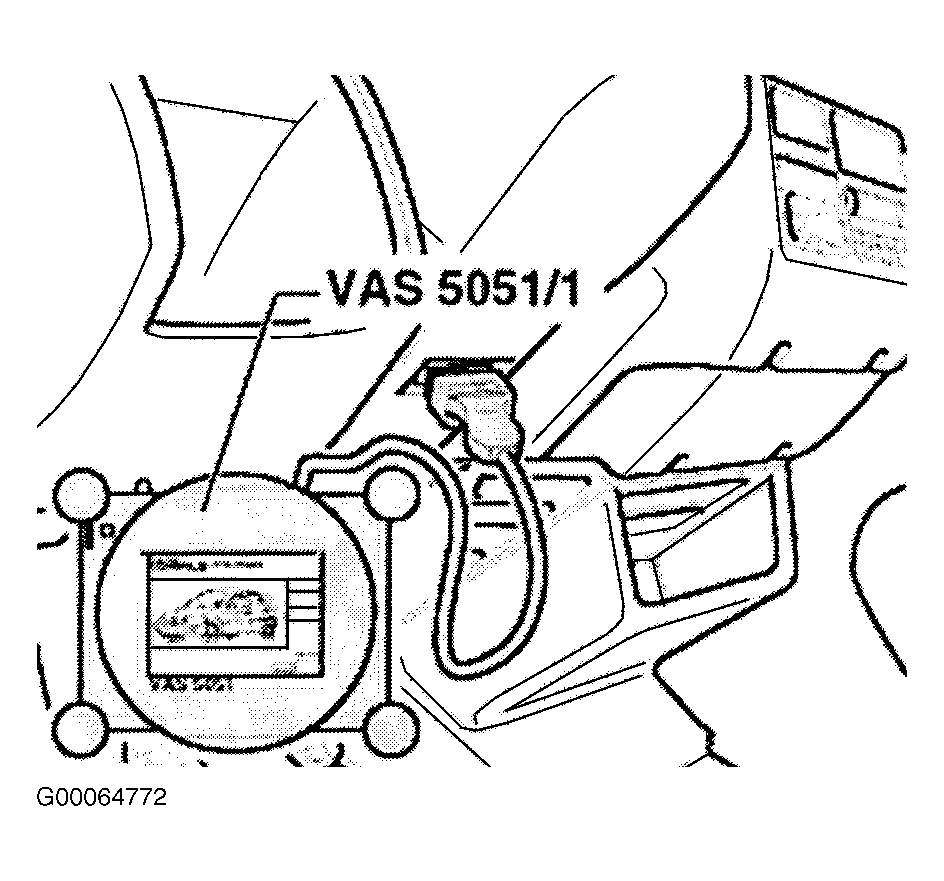

Fig 2: Locating Data Link Connector (EuroVan - 2.8L Engine Code AXK)

Courtesy of VOLKSWAGEN UNITED STATES, INC.
